SL-1U-WS-C246SCZM-LG This item is no longer available.

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2025) with Intel C246 Chipset, Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 128GB RAM, 6x USB 2.0, 2x USB 3.1, 260W ATX12V Power Supply

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 14", Max Card Depth: 12.28"

Motherboard:

  • Featuring Intel C246 Chipset and Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’) processor
  • Long Production Cycle Motherboard (Through Q3 2025)
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1
  • Video: VGA + DVI-I + DisplayPort
  • Audio: ALC 888S HD Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Front4 via internal headers )
    2x USB 3.1 Ports2 via internal headers )
    4x COM Ports (Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) - or Better
  • Memory: 4GB DDR4 2666MHz RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
  • Power Supply: 260W ATX12V Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2025
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’)
  • Chipset
  • Chipset: Intel C246 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz ECCU
  • Memory Type: ECC Unbuffered
  • DIMMS: 4
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: ALC 888S HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DVI-I + DisplayPort
  • VGA Port Out: 1
  • DVI-I Out: 1
  • Display Port Out: 2
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i219LM
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 5
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • 110mm
  • 80mm

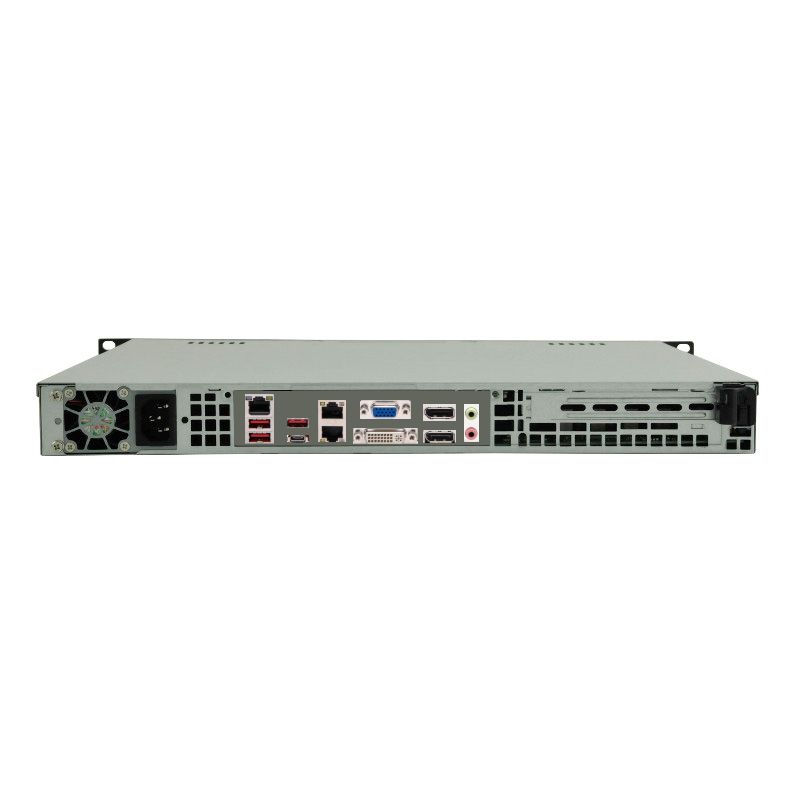

  • Rear IO
  • USB 3.2 Gen 2 Type A Ports (on IO): 3
  • USB 3.2 Gen 2 Type C Ports (on I/O): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 6
  • USB 3.1 Ports Gen 1 (on Headers): 2
  • USB 3.1 Gen 2 Ports (on Headers): 2
  • Serial (via Headers): 4
  • FAN Connectors: 6
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Management Features
  • IPMI
  • Watch Dog
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows Server 2016 STD
  • Windows Server 2019 Std
  • RED HAT Enterprise LINUX WORKSTATION STANDARD
  • RED HAT Enterprise LINUX SERVER BASIC
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:
    • 1 PCI-E 3.0 x16 Slot
    • 2 PCI-E 3.0 x8 Slot running at x4 speed
    • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 12.28"
  • Internal 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 14"
  • Depth (Inches): 14
  • Width: 16.80"
  • Height: 1.70"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 20lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: 260W ATX12V Power Supply
