MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2025
- Supported CPU
- Number of Processors: 1
- Processor Type: Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’)
- Chipset
- Chipset: Intel C246 Chipset
- Memory
- Memory Type: DDR4 2666MHz ECCU
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: ALC 888S HD Audio
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + DVI-I + DisplayPort
- VGA Port Out: 1
- DVI-I Out: 1
- Display Port Out: 2
- LAN
- LAN Ports: 2
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i210AT
- Second LAN Chipset: Intel® i219LM
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 5
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- mini PCIe
- M.2
- M.2 NVMe: 1
- M.2
- SATA
- PCIe
- 110mm
- 80mm

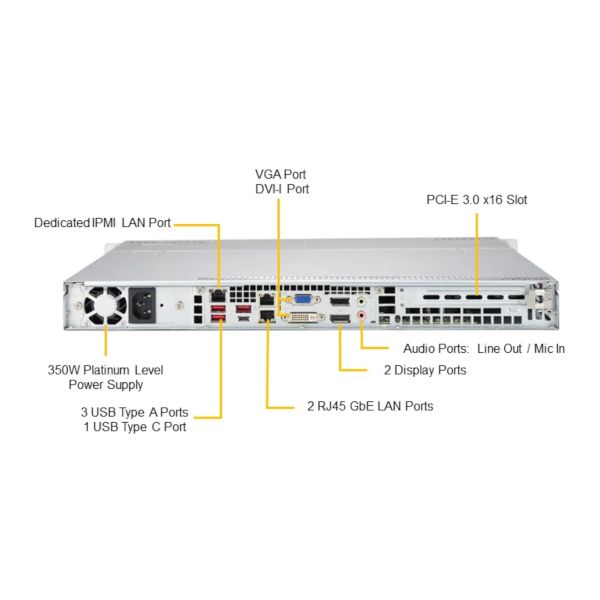

- Rear IO
- USB 3.2 Gen 2 Type A Ports (on IO): 3
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 6
- USB 3.1 Ports Gen 1 (on Headers): 2
- USB 3.1 Gen 2 Ports (on Headers): 2
- Serial (via Headers): 4
- FAN Connectors: 6
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Management Features
- IPMI
- Watch Dog
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
- High Humidity: 90%
- Low Humidity: 10%
- Operating System Support
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows Server 2016 STD
- Windows Server 2019 Std
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features:
- 1 PCI-E 3.0 x16 Slot
- 2 PCI-E 3.0 x8 Slot running at x4 speed
- 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year

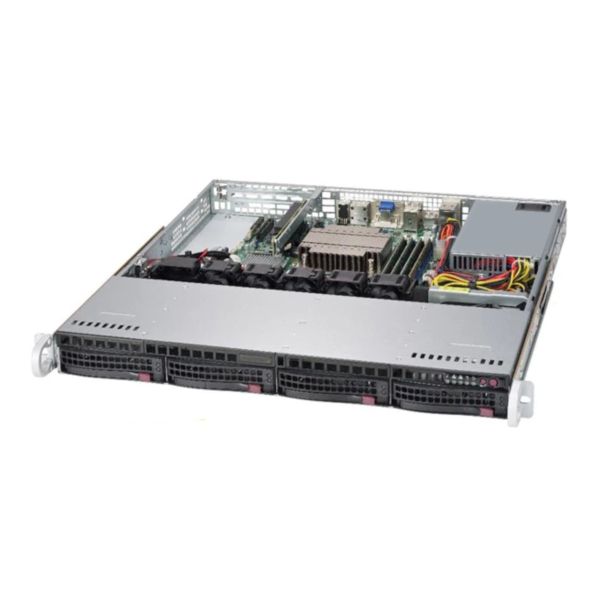

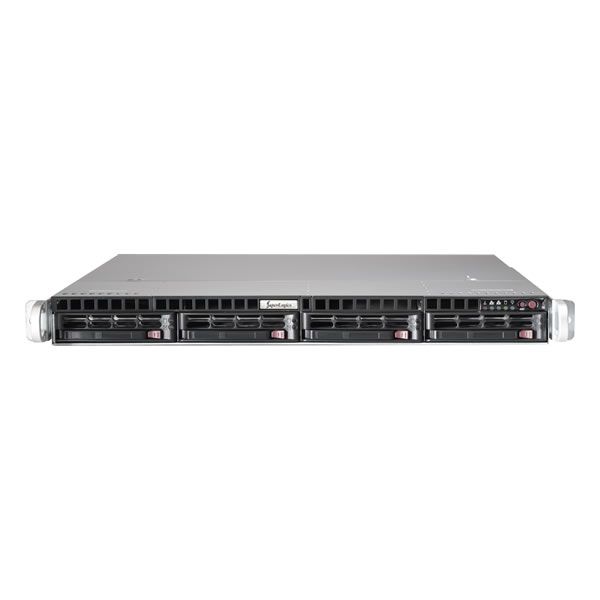

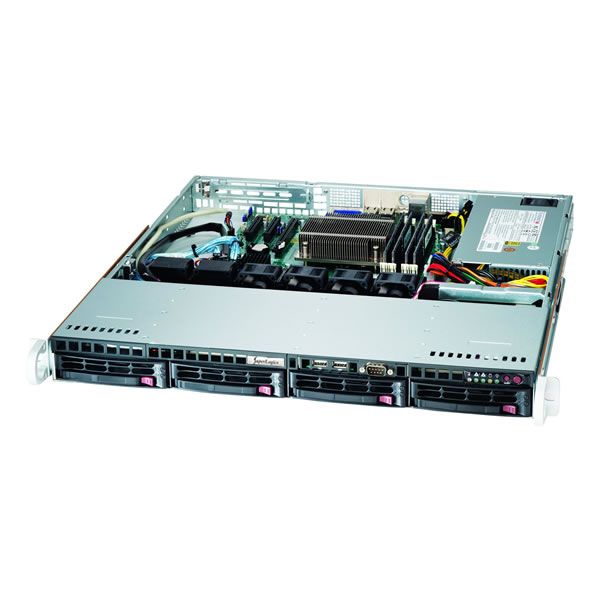

Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 6.98"
- 3.5" Hot Swap Bays: 4
- Slim CDBay: 1
- Front Ports
- USB 2.0 Port (Front): 2
- Cooling System
- Maximum Fan Count: 4
- Included Fans: 4
- Physical
- Depth: 19.80"
- Depth (Inches): 19.8
- Width: 17.20"
- Height: 1.70"
- Shipping Box - Depth: 29.70"
- Shipping Box - Width: 23.40"
- Shipping Box - Height: 8.50"
- Shipping Weight: 35lbs
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 1U 350W Multi-output power supply Platinum level
