SL-2U-MCX-C741SEI-DN

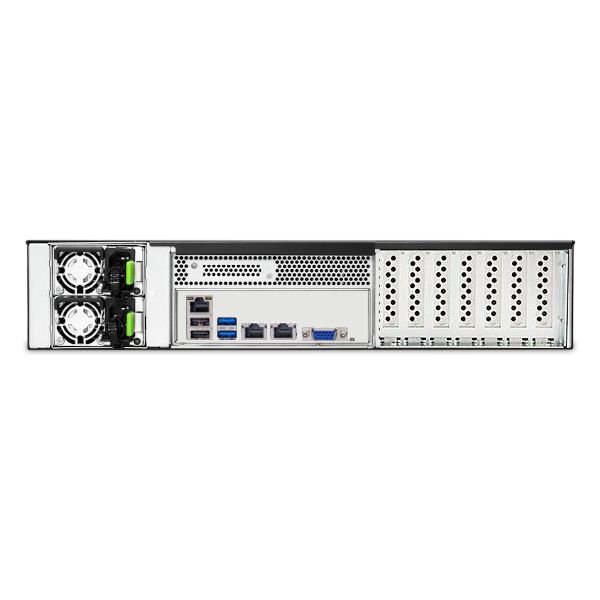

2U Rack Mount Server - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2029) with Intel C741 Chipset, Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP, 2x 10GBase-T LAN, 1x Serial, Up to 2048GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear ), 5x Expansion Slots, Power Supply 800W 1+1 redundant PSU 80+ Platinum.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Server
Depth: 17.72"

Motherboard:

Featuring Intel C741 Chipset and Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP processor
Long Production Cycle Motherboard (Through Q1 2029)
Low Profile Slots:
2 - PCIe x16
3 - PCIe x8
LAN: 2x Ports (10GBase-T)
RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
Video: VGA
Audio: No Onboard Audio
Ports:
2x USB 2.0 Ports ( 2 Rear )
3x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel Xeon Silver 4410T Processor (26.25M Cache, 2.7 GHz) 10 Cores, 150W
Memory: 4 x 16GB DDR5 4800MHz ECC Registered RAM
Hard Drive: 1TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO
Power Supply: 800W 1+1 redundant PSU 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel Xeon Silver 4410T Processor (26.25M Cache, 2.7 GHz) 10 Cores, 150W show $900.00

Intel Xeon Gold 5412U Processor (45M Cache, 2.1 GHz) 24 Cores, 185W show $1,590.00

Intel Xeon Gold 6426Y - 2.5GHz (up to 4.1GHz) Sixteen Core Intel Processor - 37.5MB Cache (185W) show $2,167.00

Intel Xeon Gold 6430 CPU: 2.1GHz (up to 3.4GHz), 32 Cores, 60MB Cache (270W) show $3,002.00

Memory

x 16GB DDR5 4800MHz ECC Registered RAM show $131.00

x 32GB DDR5 4800MHz ECC Registered RAM show $180.00

x 64GB DDR5 4800MHz ECC Registered RAM show $332.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Removable Drive Bay

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $136.00 each

Hard Drive

1TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $169.00

2TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $249.00

4TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $445.00

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $488.00

Additional Hard Drives

1TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $169.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $249.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $445.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $488.00 each

Raid Controller

Intel Virtual RAID on CPU (VROC) HW enablement key for RAID 0,1,5,10. (Required) show $254.00 each

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

None show Included

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $244.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $555.00

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $791.00

NVIDIA Quadro RTX 4000 Ada 20GB GDDR6 with ECC, PCIe 4.0 x16 - Support Low Profile show $1,868.00

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $229.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $231.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $580.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $783.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $454.00 each

Warranty

One-Year Depot Warranty show $0.00

Two-Year Depot Warranty show $199.00

One Year 24x7 Onsite Warranty (USA/Can) show $299.00

One-Year 8x5 Onsite Warranty (USA/Can) show $245.00

Three-Year Depot Warranty show $399.00

Two-Year 8x5 Onsite Warranty (USA/Can) show $475.00

Two-Year 24x7 Onsite Warranty (USA/Can) show $515.00

Three-Year 8x5 Onsite Warranty (USA/Can) show $760.00

Three-Year 24x7 Onsite Warranty (USA/Can) show $805.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepSpecial Order Item, Delivery approximately 3 weeks. show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI input show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpu show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $97.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

None show Included

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $610.00

Mounting Option

None show Included

20" Tool-less Sliding rails (20"- 28.5") show $87.00

* Required Fields

Technical Specifications

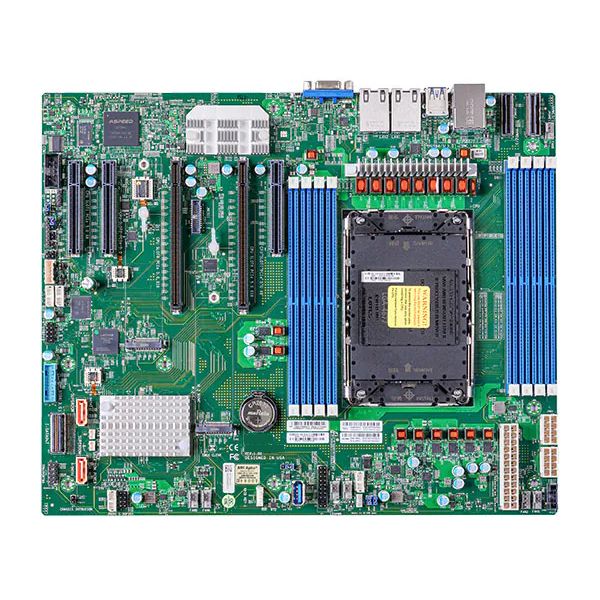

MotherBoard Specifications:

Motherboard Model
Motherboard Type: Extended ATX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2029
Supported CPU
Number of Processors: 1
Processor Type: Intel® Xeon® Scalable Processors 5th/4th Gen LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Chipset
Chipset: Intel C741 Chipset
Memory
Memory Type: DDR5 5600MHz ECCR
Memory Type: ECC Registered
DIMMS: 8
Maximum Memory: 2048GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: 10GBase-T
LAN Chipset: Intel® X550 10GBase-T
Second LAN Chipset: Intel® X550 10GBase-T
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 2
PCI Express x8 Slots On Motherboard: 3
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.

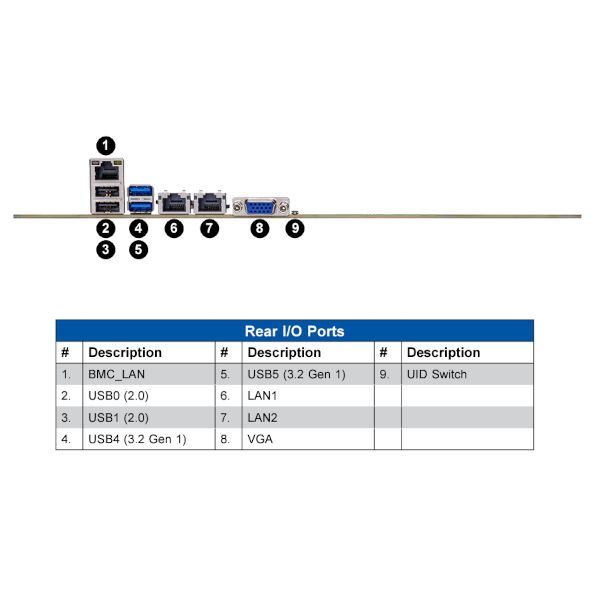

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 2
Headers
USB 3.2 Gen 1 Ports (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 7
TPM Support: Via 2.0 Header
Management Features
IPMI
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 8%
Operating System Support
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT 2021 LTSC High End
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows Server 2019 Std
Windows Server 2022 STD
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
PCIe
2 PCIe 5.0 x16,
3 PCIe 5.0 x8,
2 PCIe 5.0 x8 PCIe5.0 MCIO connector

M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
