SL-2U-WS-PD-C236SAE-WF

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2022) with Intel C236 Chipset, Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 64GB RAM, 8x USB 2.0, 6x USB 3.0, 2x USB 3.1, 400W Power Supply

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2022) with Intel C236 Chipset, Xeon E3-1200v5 (LGA1151, ‘Skylake’), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 64GB RAM, 8x USB 2.0, 6x USB 3.0, ...
  • Angle
  • Front

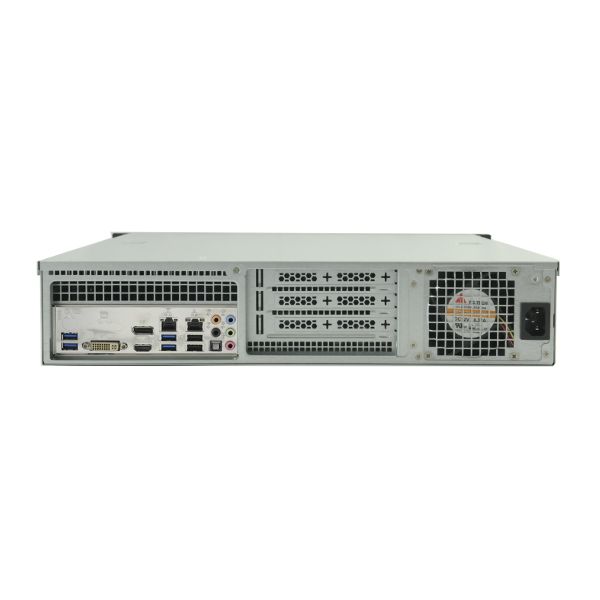

  • Rear IO View
  • TOP
  • I/O

Type:

  • 2U Rack Mount Industrial PC
  • Depth: 18", Max Card Depth: 12.25", Locking Front Bezel

Motherboard:

  • Featuring Intel C236 Chipset and Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’) processor
  • Long Production Cycle Motherboard (Through Q2 2022)
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1 via LSI MegaRAID
  • Video: DVI-D + HDMI + DisplyPort
  • Audio: 7.1 Channel HD Audio by Realtek® ALC888S
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 2 Rear, 4 via internal headers )
    6x USB 3.0 Ports ( 2 Rear, 4 via internal headers )
    2x USB 3.1 Ports ( 2 Rear )
    2x COM Ports (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) - Upgradeable
  • Memory: 4GB DDR4 2400MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - WD GOLD Series - Upgradeable
  • Power Supply: 400W Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Removable Drive Bay
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Riser Card
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q2 2022
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’)
  • Chipset
  • Chipset: Intel C236 Chipset
  • Memory
  • Memory Type: DDR4 2133Mhz ECC
  • Memory Type: ECC Unbuffered
  • DIMMS: 4
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DVI-D + HDMI + DisplyPort
  • DVI-D Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i219LM
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 8
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • PCIe
  • 42mm
  • 60mm
  • 80mm
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • USB 3.1 Type A Ports (on IO): 2
  • Headers
  • USB 2.0 Ports (on Headers): 6
  • USB 3.0 Ports (on Headers): 4
  • Serial (via Headers): 2
  • FAN Connectors: 5
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Management Features
  • vPRO
  • Watch Dog
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 7 Ultimate (64-bit)
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • VMWare Compatible
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Locking Bezel: 1
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 3
  • Max Card Depth: 12.25"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 1
  • Physical
  • Depth: 18"
  • Depth (Inches): 18
  • Width: 16.90"
  • Height: 3.50"
  • Shipping Box - Depth: 20"
  • Shipping Box - Width: 40"
  • Shipping Box - Height: 40"
  • Shipping Weight: 35lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
