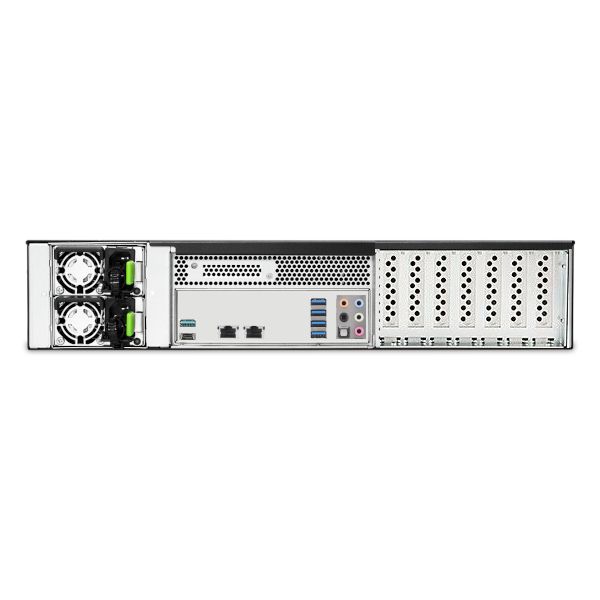

SL-2U-X299WS10-DN

2U Rack Mount Industrial PC - Rackmount featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 2x 10GBase-T LAN, 1x Serial, Up to 128GB RAM, 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers ), 7x Expansion Slots, Power Supply 800W 1+1 redundant PSU 80+ Platinum.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 17.72"

Motherboard:

Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
Low Profile Slots:
7 - PCIe x16
LAN: 2x Ports (10GBase-T)
RAID: 0,1,5,10
Video: None
Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
Ports:
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
1x USB 3.2 Gen 2 Port ( 1 Rear )
2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W)
Memory: 4 x 8GB DDR4 3200MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 800W 1+1 redundant PSU 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W) show $1,100.00

i9-10920X - 3.5GHz (up to 4.6GHz) Intel Dodeca (12) Core CPU - 19.25MB Cache, No Onboard Graphics (165W) show $1,182.00

i9-10940X - 3.3GHz (up to 4.6GHz) Intel Tetradeca (14) Core CPU - 19.25MB Cache, No Onboard Graphics (165W) show $1,315.00

i9-10980XE - 3.0GHz (up to 4.6GHz) Intel Octadeca (18) Core CPU - 24.75MB Cache, No Onboard Graphics (165W) show $1,794.00

Memory

x 8GB DDR4 3200MHz RAM show $28.00

x 16GB DDR4 3200MHz RAM show $56.00

x 32GB DDR4 3200MHz RAM show $104.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Removable Drive Bay

None show Included

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $136.00

Additional Hard Drives

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $488.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

TPM 2.0 Module - TCG Compliance: TCG PC Client Platform TPM Profile (PTP) Specification; Family 2.0 (T show $29.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

None show Included

NVIDIA GeForce GT 1030 2GB 64-bit GDDR5 PCIe 3.0 x16 (x4 active) Video Card - Low Profile Capable - DVI and HDMI show $218.00

NVIDIA GeForce RTX 4060 8GB 128-Bit GDDR6 PCIe 4.0 x16 - Recommended 450W PSU show $449.00

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $244.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $555.00

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $791.00

Networking

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $60.00 each

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $229.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $231.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $113.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Operating System

None show Included

Microsoft Windows 11 Pro Downgrade to Windows 10 Pro 64-Bit. Includes Windows 11 Product Key Only. show $219.00

Ubuntu Desktop Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Ubuntu Server Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Monitors

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - show $952.00 each

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" show $1,482.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") w show $1,058.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") w show $1,112.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchp show $1,589.00 each

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" show $1,047.00 each

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - show $1,578.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $97.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $119.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $164.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $610.00 each

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $120.00 each

Mounting Option

None show Included

20" Tool-less Sliding rails (20"- 28.5") show $87.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
Chipset
Chipset: Intel X299 Chipset
Memory
Memory Type: DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 8
Maximum Memory: 128GB
On Board Audio
Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: None
LAN
LAN Ports: 2
LAN Type: 10GBase-T
LAN Chipset: Intel® X550-AT2 10GBase-T
Second LAN Chipset: Intel® X550-AT2 10GBase-T
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 8
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 7
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
22110 - 22 mm x 110 mm.
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 4
USB 3.2 Gen 2 Type A Ports (on IO): 1
USB 3.2 Gen 2 Type C Ports (on I/O): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Thunderbolt 3 via Header: 1
Serial (via Headers): 1
FAN Connectors: 4
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
RoHS
FCC
Other Features
Features:
7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

PCIe speed may vary due to processor's limitation. Please check processor's specs for # of PCIe Lanes.

Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
Motherboard Warranty: 1 Year
