SL-2U-X299WS10-DT

Name: SL-2U-X299WS10-DT
SKU: SL-2U-X299WS10-DT

2U Rack Mount Industrial PC - Rackmount featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 2x 10GbE + 10GbE LAN, 1x Serial, Up to 128GB RAM, 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers ), 7x Expansion Slots, Power Supply 800W 1+1 redundant PSU 80+ Platinum.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

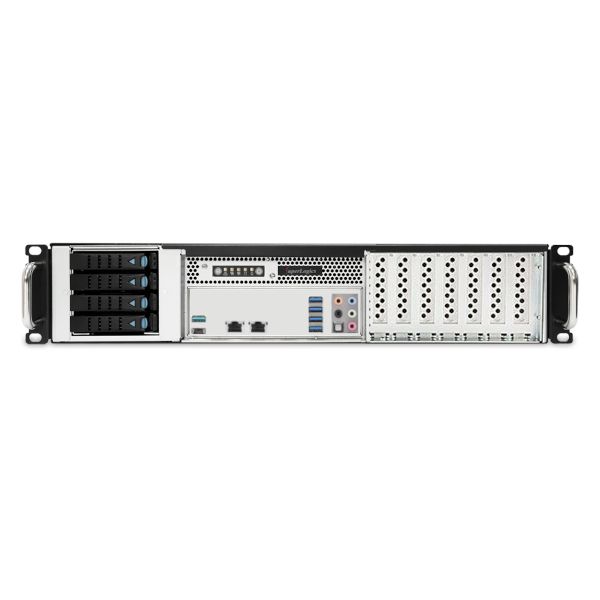

Front Facing I/O

Type:

2U Rack Mount Industrial PC
Depth: 17.72"

Motherboard:

Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
Low Profile Slots:
7 - PCIe x16
LAN: 2x Ports (10GbE + 10GbE )
RAID: 0,1,5,10
Video: None
Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
Ports:
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
1x USB 3.2 Gen 2 Port ( 1 Rear )
2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W)
Memory: 4 x 8GB DDR4 3200MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 800W 1+1 redundant PSU 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
Chipset
Chipset: Intel X299 Chipset
Memory
Memory Type: DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 8
Maximum Memory: 128GB
On Board Audio
Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: None
LAN
LAN Ports: 2
LAN Type: 10GbE + 10GbE
LAN Chipset: Intel® X550-AT2 10GBase-T
Second LAN Chipset: Intel® X550-AT2 10GBase-T
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 8
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 7
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
22110 - 22 mm x 110 mm.
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 4
USB 3.2 Gen 2 Type A Ports (on IO): 1
USB 3.2 Gen 2 Type C Ports (on I/O): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Thunderbolt 3 via Header: 1
Serial (via Headers): 1
FAN Connectors: 4
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
RoHS
FCC
Other Features
Features:
7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

PCIe speed may vary due to processor's limitation. Please check processor's specs for # of PCIe Lanes.

Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
Motherboard Warranty: 1 Year
