SL-3U-LLQ870A-SGX

Name: SL-3U-LLQ870A-SGX
SKU: SL-3U-LLQ870A-SGX
Price: 2405.00 USD

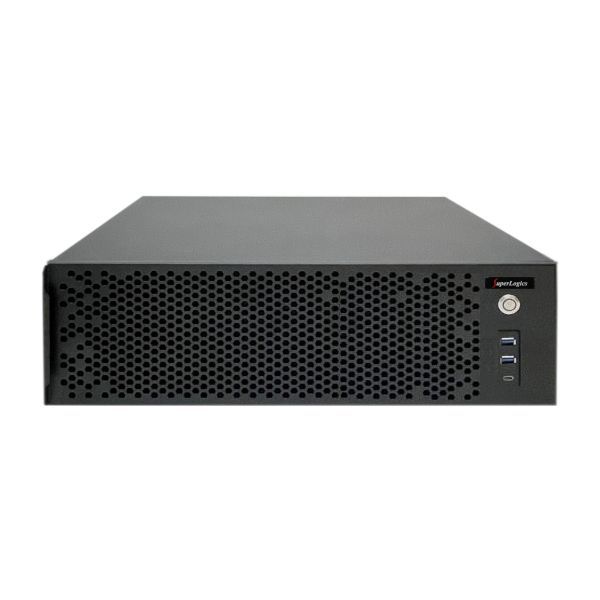

3U Rack Mount Industrial PC - Rackmount featuring Intel Q870 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 3x 2.5GbE + 2.5GbE + 1GbE LAN, 6x Serial, Up to 192GB RAM, 2x USB 2.0 Ports ( 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Internal Headers ), 6x USB 3.2 Gen 2 Ports ( 6 Rear ), 7x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

3U Rack Mount Industrial PC
Depth: 15", Max Card Depth: 324mm"

Motherboard:

Featuring Intel Q870 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Full Height Slots:
2 - PCIe x16
4 - PCIe x4
1 - PCI
LAN: 3x Ports (2.5GbE + 2.5GbE + 1GbE)
RAID: 0,1 NVMe Only
Video: 2x DisplayPort, 1x HDMI
Audio: Realtek® ALC897
Ports:
2x USB 2.0 Ports ( 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Internal Headers )
6x USB 3.2 Gen 2 Ports ( 6 Rear )
6x COM Ports (1 RS232 Rear, 4 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2)
Memory: 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s
Power Supply: 700W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel® Core™ Ultra 5 Processor 225 Processor - 10 Cores (6P + 4E), 20MB Intel® Smart Cache, 121W (PL2) show $395.00

Intel® Core™ Ultra 7 Processor 265 Processor - 20 Cores (8P + 12E), 30MB Intel® Smart Cache, 182W (PL2) show $560.00

Intel® Core™ Ultra 9 Processor 285 Processor - 24 Cores (8P + 16E), 36MB Intel® Smart Cache, 250W (PL2) show $975.00

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $165.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $355.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $500.00

x 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $355.00

x 32GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $500.00

x 16GB DDR5 5600MHz RAMPart ETA Varies – Ask Sales show $330.00

x 32GB DDR5 5600MHz RAM show $610.00

x 64GB DDR5 5600MHz RAM show $1,150.00

Liquid Cooler/Fan (Optional)

None show Included

240mm high-performance AIO liquid cooler show $82.00

360mm high-performance AIO liquid cooler.. show $95.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Hard Drive

500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s show $123.00

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $186.00

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $357.00

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $463.00

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $325.00

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $606.00

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $373.00

Additional Hard Drives

500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s show $123.00 each

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $186.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $357.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $463.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $325.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $606.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $373.00 each

Raid Controller

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

Add 2 USB 3.x A Female Ports via internal USB header cable show $25.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

Management Module

None show Included

TPM 2.0 Module - TPM IC: Nuvoton NPCT750. Pin Dimension: 14-1pin show $31.00

Plug-In Boards

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

4 Port DB9 RS-422/485 Serial PCI-Express 2.0 x1 Card, Single Slot with Fan Out Serial Cable - Full Hei show $99.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $89.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $43.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Add-In Graphic Card

None show Included

NVIDIA GeForce RTX 5060 8GB 128-Bit GDDR7 PCIe 5.0 - Recommended 450W PSU show $465.00

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $211.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $551.00

NVIDIA RTX 2000 ADA 16GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort 1.4a - Low Profile and Full Height Compatible show $944.00

NVIDIA RTX 4000 Ada 20GB GDDR6 with ECC, PCIe 4.0 x16 - Support Low ProfileSpecial Order Item, Delivery approximately 5 weeks. show $1,765.00

Networking

M.2 2230 - Intel Wi-Fi 7 (Gig+) module via internal M.2 slot. Features Bluetooth 5.1 and WPA3 securit show $37.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $136.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $260.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $230.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $180.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

Power Supply

700W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Platinum show $190.00

750W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ gold show $190.00

800W SFX-L Form Factor Auto-Switching Power Supply, Fully Modular, 80 Plus Titanium Certified show $396.00

1000W SFX-L Form Factor Auto-Switching Power Supply, Fully Modular, 80 Plus Platinum Certified Supports 12VHPWR GEN 5 show $540.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $1,015.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,545.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,129.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,183.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,659.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,118.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,649.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $26.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $286.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $415.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $469.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $125.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $207.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $740.00 each

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $117.00 each

Mounting Option

None show Included

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deep show $57.00

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $63.00

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $72.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: ATX
Long Production Cycle
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel Q870 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 192GB
On Board Audio
Audio Type: Realtek® ALC897
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: 2x DisplayPort, 1x HDMI
Display Port Out: 2
HDMI Out: 1
LAN
LAN Ports: 3
LAN Type: 2.5GbE + 2.5GbE + 1GbE
LAN Chipset: Intel® 2.5Gb Ethernet
Second LAN Chipset: Intel® 2.5Gb Ethernet
Third LAN Chipset: Intel® i210AT
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 2
PCI Express x4 Slots On Motherboard: 4
PCI Slots (Conventional 32-Bit): 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2280 - 22 mm x 80 mm.
M.2 E-Key Slot
2230 - 22 mm x 30 mm.
Rear IO
USB 3.2 Gen 2 Type A Ports (on IO): 6
USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
Serial (Rear IO): 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 4
USB 2.0 Ports (Type A): 1
Serial (via Headers): 4
Serial 232/422/485 Ports: 1
Parallel Ports: 1
FAN Connectors: 4
Audio on Headers
PS/2 Combo (Mouse/Keyboard) on Headers
Chassis Intrusion
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 95%
Low Humidity: 10%
Operating System Support
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
Expansion slots

1x PCI Express 5.0 x16 slot (1 x16 mode / 2 x8 modes)

1x PCI Express 4.0 x4 slot (x2 mode, open slot)

1x PCI Express 4.0 x4 slot (x4 mode, open slot)

1x PCI Express 5.0 x16 slot (x8 mode)

1x PCI Express 4.0 x4 slot (x2 mode, open slot)

1x PCI Express 4.0 x4 slot (x4 mode, open slot)

1x PCI slot

M.2 Slots

1x M.2 socket 1 (Key E, 2230) for WiFi/BT devices Supporting Intel CNVi

1x M.2 socket 3 (Key M, 2242/2260/2280) with PCIe 5.0 x4 mode supporting NVMe

1x M.2 socket 3 (Key M, 2280) with PCIe 4.0 x4 mode supporting NVMe
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 3U Rackmount
Front Changeable Air Filter
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: E-ATX
Slide Rails: Optional
Expansion
Full Height Slots: 3
Max Card Depth: 324mm"
Internal 2.5" Bays: 1
Front Ports
USB 3.2 Ports (Front): 2
USB Type-C (Front): 1
Cooling System
Maximum Fan Count: 3
Physical
Depth: 15"
Width: 17"
Height: 5.22"
Shipping Box - Depth: 21"
Shipping Box - Width: 19"
Shipping Box - Height: 12"
Shipping Weight: 18lbs
Other Features
Features:
Three (3) Full height PCIe card slot cutouts
As of 03/22/2025 this chassis does not have the single vertical PCIE slot.

3x Full Height Horizontal PCIe slots with one PCIe 5.0 16x riser for large 3-slot GPU
Maximum card width: 72mm or 3.5-slot
Maximum card height: 150mm (including power connectors)
Maximum card length with 3x 25mm thick front fans: 324mm
Maximum card length with Asetek 360mm AIO and 3x 25mm thick front fans: 296mm

Total Internal Depth: 349mm
Thickness of radiator + thickness of case fans + GPU length must equal less than 349mm total.
Case includes a rear support bridge to prevent GPU sag and reduce chances of shipping damage
Chassis Warranty: 1 Year
Power
Remote Server Management:

Looking for something different? We offer 100% custom desktops!

Nobody else can beat it The Superlogics Warranty

Configured Price

$2,405.00

Qty

Save this Configuration

Configuration Comments

Request Configuration Quote

Open Datasheet in "Pop Up" Window

Assembly Time as Configured

Estimated Ship Date If Ordered Today

Configuration Summary

down
