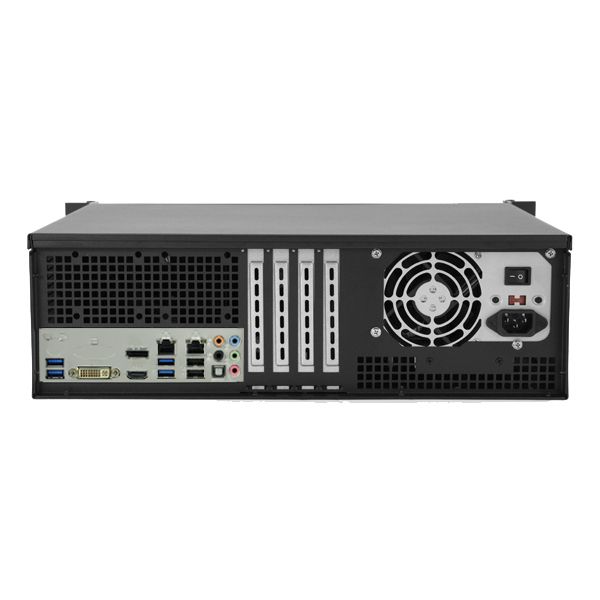

SL-3U-MCX-C236SAEM-GK
3U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2024) with Intel C236 Chipset, Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’), 2x GB (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers ), 3x Expansion Slots.
Type:
- 3U Rack Mount Industrial PC
- Depth: 15.35", Max Card Depth: 8.5"
Motherboard:
- Featuring Intel C236 Chipset and Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’) processor
- Long Production Cycle Motherboard (Through Q4 2024)
- Full Height Slots:
1 - PCIe x16
1 - PCIe x4
1 - PCI - LAN: 2x Ports (GB (10/100/1000))
- RAID: 0,1,5,10
- Video: DVI-D + HDMI + DisplyPort
- Audio: 7.1 Channel HD Audio by Realtek® ALC888S
- Ports:
6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Chassis Specifications:
CASE-3U-D-313V2-MATX
