SL-3U-WS-C246SCA-KA This item is no longer available.
3U Rack Mount Server - Rackmount featuring Intel C246 Chipset, Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’), 2x 1GbE + 1GbE LAN, 1x Serial, Up to 128GB RAM, 2x USB 2.0 Ports ( 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 5x Expansion Slots.
Lead Time: End of November.
Type:
- 3U Rack Mount Server
- Depth: 20.79", Max Card Depth: 292mm"
Motherboard:
- Featuring Intel C246 Chipset and Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’) processor
- Full Height Slots:
2 - PCIe x16
1 - PCIe x4
1 - PCIe x1
1 - PCI - LAN: 2x Ports (1GbE + 1GbE)
- RAID: 0,1,5,10
- Video: 1x HDMI, 1x DisplayPort, 1x VGA, 1x DVI-D
- Audio: Realtek ALC888S HD Audio
- Ports:
2x USB 2.0 Ports ( 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
1x USB 3.2 Gen 2 Port ( 1 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) (ERM) - or Better
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Xeon E-2100 (LGA1151, 8th & 9th Gen ‘Coffee Lake’)
- Chipset
- Chipset: Intel C246 Chipset
- Memory
- Memory Type: DDR4 2666MHz ECCU
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: Realtek ALC888S HD Audio
- On Board Video
- Video Chipset: ASPEED AST2500 BMC
- Video on IO: 1x HDMI, 1x DisplayPort, 1x VGA, 1x DVI-D
- VGA Port Out: 1
- DVI-D Out: 1
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Intel® i210AT
- Second LAN Chipset: Intel® i219LM
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x4 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 1
- PCI Slots (Conventional 32-Bit): 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

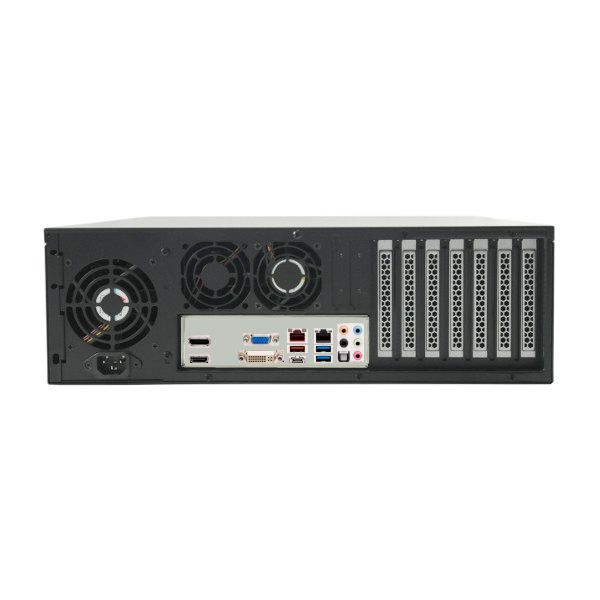

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 2.0 Ports (Type A): 1
- Serial (via Headers): 1
- FAN Connectors: 5
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows Server 2016 STD
- Windows Server 2019 Std
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features:
PCI-E
- 1 PCI-E 3.0 x4,
- 1 PCI-E 3.0 x1,
- 2 PCI-Ex16 slots are running at NA/16, or 8/8
- 1 - 5V PCI 32bit
M.2
- M.2 Interface: 2 PCI-E 3.0 x4
- Form Factor: 2242/2260/2280/22110
- Key: M-Key
- M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 3U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1.20mm
- Motherboard Compatibility: Micro ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 7
- Max Card Depth: 292mm"
- External 5.25" Bays: 2
- Internal 3.5" Bays: 3
- External 3.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 528mm
- Depth (Inches): 20.79
- Width: 483mm
- Height: 133mm
- Shipping Box - Depth: 22"
- Shipping Box - Width: 27"
- Shipping Box - Height: 10"
- Shipping Weight: 40lbs
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
