SL-3U-WS-PD-C236SAE-KA This item is no longer available.

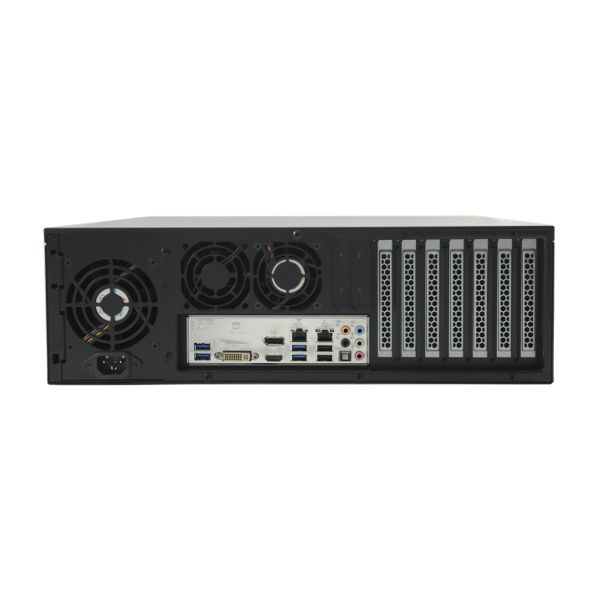

3U Rack Mount Server - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2024) with Intel C236 Chipset, Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’), 2x GB (10/100/1000) LAN, 2x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 2 Rear, 6 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 7x Expansion Slots.
Chassis ETA Early-September
Type:
- 3U Rack Mount Server
- Depth: 20.79", Max Card Depth: 292mm"
Motherboard:
- Featuring Intel C236 Chipset and Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’) processor
- Long Production Cycle Motherboard (Through Q4 2024)
- Full Height Slots:
2 - PCIe x16
3 - PCIe x1
2 - PCI - LAN: 2x Ports (GB (10/100/1000))
- RAID: 0,1,5,10
- Video: DVI-D + HDMI + DisplyPort
- Audio: 7.1 Channel HD Audio by Realtek® ALC888S
- Ports:
8x USB 2.0 Ports ( 2 Rear, 6 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
2x COM Ports (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
