SL-4U-X299K-WB This item is no longer available.

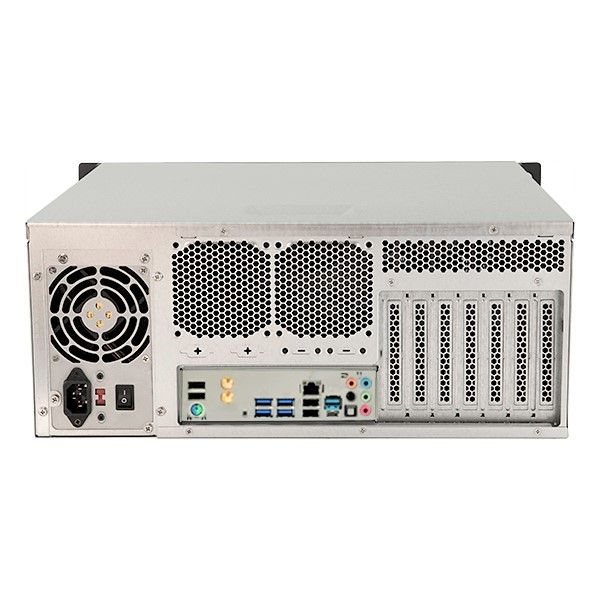

4U Rack Mount Industrial PC - Rackmount featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 1x GB (10/100/1000) LAN, WIFI,Up to 128GB RAM, 10x USB 2.0 Ports ( 2 Front, 4 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 1 Type-C Port (Rear), 5x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.50", Max Card Depth: 12.28 inches"
Motherboard:
- Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
- Full Height Slots:
4 - PCIe x16
1 - PCIe x1 - LAN: 1x Ports (GB (10/100/1000))
- WiFi: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- RAID: 0,1,5,10
- Video: None
- Audio: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Ports:
10x USB 2.0 Ports ( 2 Front, 4 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
1x USB 3.2 Gen 1 Type-C Port (Rear)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: i7-9800X - 3.8GHz (up to 4.4GHz) Intel Octa (8) Core CPU - 16.5MB Cache, No Onboard Graphics (165W)
- Memory: 2 x 4GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 600W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
