SL-4U-X299TUF-HA This item is no longer available.

A newer version of this item is available: SL-4U-X299UD4-HA

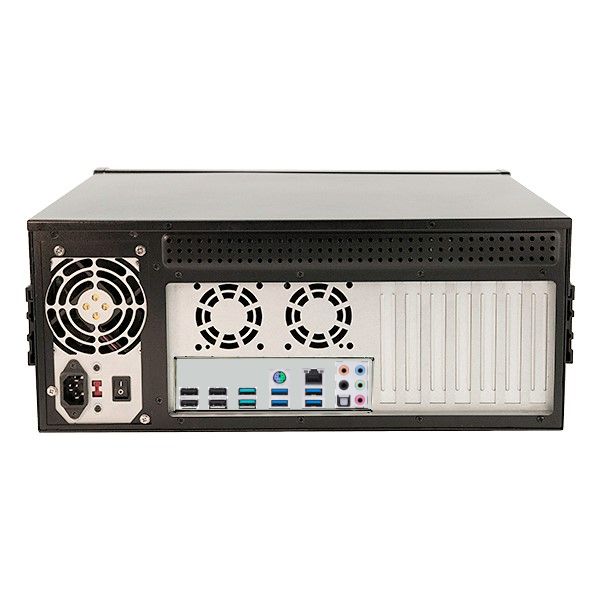

4U Rack Mount Industrial PC - Rackmount featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 1x GB (10/100/1000) LAN, 1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 6x Expansion Slots.



Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

  • Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
  • Full Height Slots:
    3 - PCIe x16
    1 - PCIe x4
    2 - PCIe x1
  • LAN: 1x Ports (GB (10/100/1000))
  • RAID: 0,1,5,10
  • Video: None
  • Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear )
    6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers )
    2x USB 3.2 Gen 2 Ports ( 2 Rear )
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: i7-9800X - 3.8GHz (up to 4.4GHz) Intel Octa (8) Core CPU - 16.5MB Cache, No Onboard Graphics (165W)
  • Memory: 2 x 4GB DDR4 2666MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 600W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

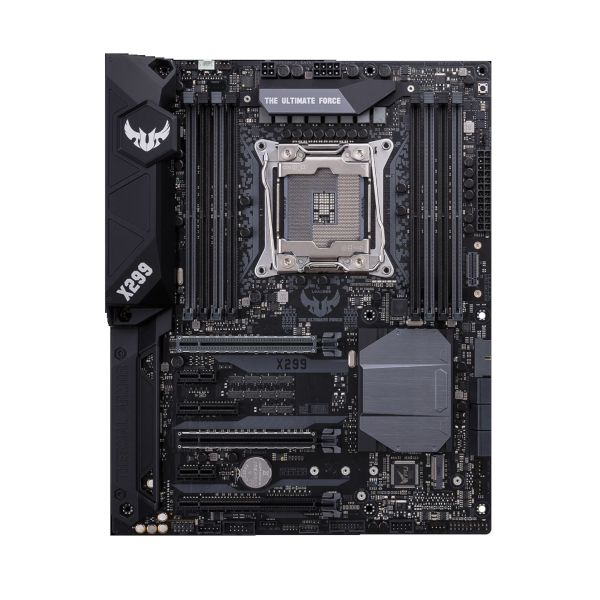

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
  • Chipset
  • Chipset: Intel X299 Chipset
  • Memory
  • Memory Type: DDR4 2400MHz
  • Memory Type: Non-ECC
  • DIMMS: 8
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
  • On Board Video
  • Video Chipset: None
  • Video on IO: None
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • PCI Express x4 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 2
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 2
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • PCIe Signal
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.

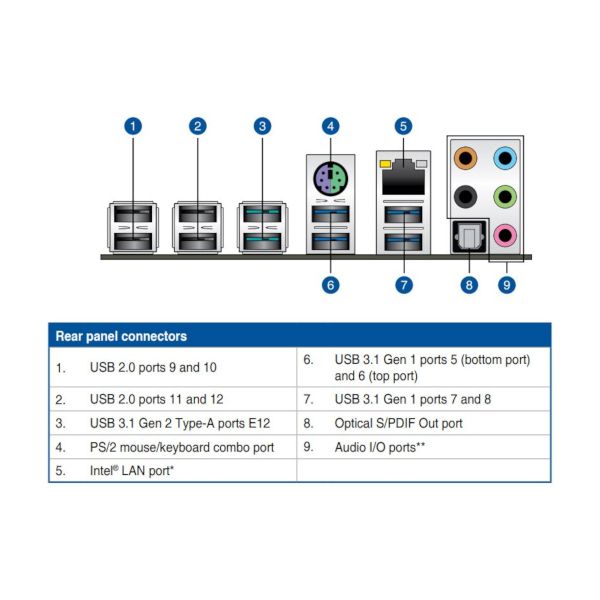

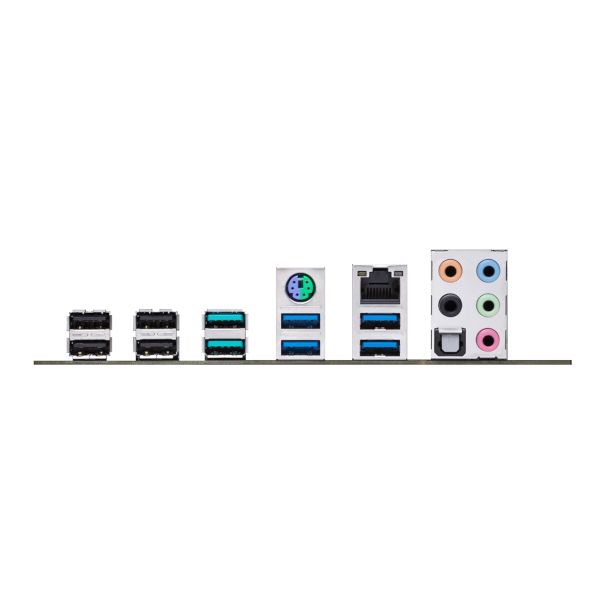

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • USB 3.2 Gen 2 Type A Ports (on IO): 2
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • Thunderbolt 3 via Header: 1
  • Serial (via Headers): 1
  • FAN Connectors: 7
  • Audio on Headers
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • Other Features
  • Other Features:

    44-Lane CPU-
    3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
    1 x PCIe 3.0 x4 (max at x2 mode) *1
    2 x PCIe 3.0/2.0 x1
    28-Lane CPU-
    2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
    1 x PCIe 3.0 x4 (max at x2 mode) *1
    2 x PCIe 3.0/2.0 x1
    16-Lane CPU-
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 3.0 x4 (max at x2 mode) *1
    2 x PCIe 3.0/2.0 x1s. Please check Chassis Specification section for more information.

    Note

    When using 28-lane & 16-lane CPUs, PCIEX16_3 will be disabled.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 45lbs
  • Other Features
  • Chassis Warranty: 1 Year
