SL-4U-SBC-H61-BA

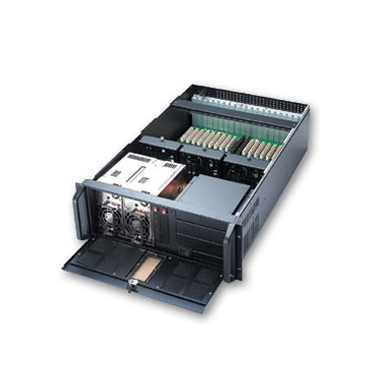

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2018) with Intel H61 Chipset, 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge'), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 16GB RAM, 7x USB 2.0, 18x Expansion Slots, 400W Power Supply

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2018) with Intel H61 Chipset, 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge'), 2x GB (10/100/1000) LAN, HDD or SSD, 3x Serial, Up to 16GB RAM, 7x USB 2.0, 18x...
  • Angle
  • TOP
  • Top View
  • Lead Time - Early July 2018

Type:

  • 4U Rack Mount Industrial PC
  • Depth: 26.80", Max Card Depth: Full Length", Locking Front Bezel

Motherboard:

  • Featuring Intel H61 Chipset and 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge') processor
  • Long Production Cycle Motherboard (Through Q2 2018)
  • Full Height Slots:
    18 - PCI
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + DVI-D
  • Audio: Onboard Audio
  • Ports:
    7x USB 2.0 Ports ( 2 Front, 1 Rear, 4 via internal headers )
    2x COM Ports (Rear)
    1x Parallel Port (Headers)
    3x Firewires (2 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 60ºC (50ºF to 140ºF)

Also Included:

  • Processor: G1620 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (55W) (ERM) - Upgradeable
  • Memory: 4GB DDR3 1600MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 400W Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Processor
Memory
Backplane
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Plug-In Boards
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Single Board Computer (SBC)
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q2 2018
  • PICMG: 1.0
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge')
  • Chipset
  • Chipset: Intel H61 Chipset
  • Memory
  • Memory Type: DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: Onboard Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111E
  • Second LAN Chipset: Realtek® RTL8111E
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 4
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full/half size
  • Rear IO
  • USB 2.0 Ports (on IO): 1
  • Firewire Ports: 2
  • Serial (Rear IO): 2
  • Headers
  • USB 2.0 Ports (on Headers): 6
  • Firewire Ports: 1
  • Parallel Ports: 1
  • FAN Connectors: 2
  • Digital I/O (8 Bit) On Headers
  • Floppy Connectors: 1
  • TPM Support: Via 1.2 Header
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 10ºC to 60ºC (50ºF to 140ºF)
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows XP Pro (32-bit)
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • VMWare Compatible
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Locking Bezel: 1
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: 20-Slot SBC
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 20
  • Max Card Depth: Full Length"
  • External 5.25" Bays: 3
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 3
  • Physical
  • Depth: 26.80"
  • Depth (Inches): 26.8
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 19"
  • Shipping Box - Width: 26.80"
  • Shipping Box - Height: 7"
  • Shipping Weight: 54.24lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
