SL-1U-MCX-C602DRL-LS-1 This item is no longer available.

A newer version of this item is available:

1U Rack Mount Server - Rackmount featuring Intel C602 Chipset, Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP'), 3x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 256GB RAM, 6x USB 2.0, 1x Expansion Slots, 440W Platinum-Efficient AC Power Supply w/ Active PFC, 80+ Platinum

1U Rack Mount Server - Rackmount featuring Intel C602 Chipset, Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP'), 3x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 256GB RAM, 6x USB 2.0, 1x Expansion Slots

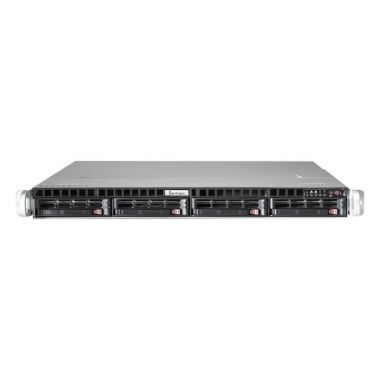

  • Front
  • Open Angle
  • Motherboard
  • IO Diagram

Type:

  • 1U Rack Mount Server
  • Depth: 19.80", Max Card Depth: 6.9""

Motherboard:

  • Featuring Intel C602 Chipset and Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP') processor
  • Full Height Slots:
    1 - PCIe x8
  • LAN: 3x GB (10/100/1000)
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    6x USB 2.0 Ports ( 4 Rear, 2 via internal headers )
    2x COM Ports (Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Technical Specifications

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP')
  • Chipset
  • Chipset: Intel C602 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 8
  • Maximum Memory: 256GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Matrox G200eW
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 3
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i210AT
  • Third LAN Chipset: Realtek RTL8201F PHY (Dedicated IPMI)
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • SATA III Ports (6GB): 4
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • Rear IO
  • USB 2.0 Ports (on IO): 4
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 2
  • Management Features
  • TPM Support: Via 1.2 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2012
  • RED HAT Enterprise LINUX SERVER STANDARD
  • VMWare Compatible: Partially Supported
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    PCI-Express

    • 1x PCI-E 3.0 x8 Full-height Half-length
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 6.9""
  • 3.5" Hot Swap Bays: 4
  • Slim CDBay: 1
  • Cooling System
  • Maximum Fan Count: 5
  • Included Fans: 5
  • Physical
  • Depth: 503mm
  • Depth (Inches): 19.8
  • Width: 17.20"
  • Height: 1.70"
  • Shipping Box - Depth: 30"
  • Shipping Box - Width: 27"
  • Shipping Box - Height: 12"
  • Shipping Weight: 30lbs
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 440W Platinum-Efficient AC Power Supply w/ Active PFC, 80+ Platinum
