SL-1U-MCX-C621A-ICX-TT

1U Rack Mount Server - Rackmount featuring Intel C621A Chipset, Intel® Xeon® Scalable Processors 3rd Gen, 2x 10GBase-T LAN, 2x Serial, Up to 512GB RAM, 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 1x Expansion Slots, Power Supply Single 600W PSU.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Server
Depth: 21"

Motherboard:

Featuring Intel C621A Chipset and Intel® Xeon® Scalable Processors 3rd Gen processor
Full Height Slots:
1 - PCIe x16
LAN: 2x Ports (10GBase-T)
RAID: 0,1,5,10
Video: VGA
Audio: No Onboard Audio
Ports:
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: 3rd Gen Xeon Silver 4310 - 2.1GHz (up to 3.3GHz) Twelve Core Intel Processor - 18MB Cache (120W)
Memory: 2 x 8GB DDR4 2666MHz ECC Registered RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: Single 600W PSU
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

3rd Gen Xeon Silver 4310 - 2.1GHz (up to 3.3GHz) Twelve Core Intel Processor - 18MB Cache (120W) show $763.00

3rd Gen Xeon Silver 4314 - 2.4GHz (up to 3.4GHz) Sixteen Core Intel Processor - 24MB Cache (135W) show $950.00

3rd Gen Xeon Gold 6338 - 2.0GHz (up to 3.2GHz) Thirty-Two Core Intel Processor - 48MB Cache (205W) show $3,733.00

3rd Gen Xeon Gold 6346 - 3.1GHz (up to 3.6GHz) Sixteen Core Intel Processor - 36MB Cache (205W) show $3,282.00

3rd Gen Xeon Gold 6354 - 3.0GHz (up to 3.6GHz) Eighteen Core Intel Processor - 39MB Cache (205W) show $3,505.00

3rd Gen Xeon Platinum 8358 - 2.6GHz (up to 3.4GHz) Thirty-Two Core Intel Processor - 48MB Cache (270W) show $5,637.00

Memory

x 8GB DDR4 2666MHz ECC Registered RAM show $50.00

x 16GB DDR4 2666MHz ECC Registered RAM show $101.00

x 32GB DDR4 2666MHz ECC Registered RAM show $120.00

x 64GB DDR4 2666MHz ECC Registered RAM (RDIMM) show $219.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Removable Drive Bay

None show Included

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $136.00

Hard Drive

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $73.00

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $113.00

1TB NVMe SSD M.2 3.5GB/3.0GB - Samsung 980 show $165.00

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - WD GOLD Series show $155.00

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00

Additional Hard Drives

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $488.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - WD GOLD Series show $155.00 each

4.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $205.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $206.00 each

6.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $265.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $293.00 each

10.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $321.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $381.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $513.00 each

12TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X18 Series show $422.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Riser Card

1x PCI-E x16 Slot Riser Included show $0.00

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $229.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $231.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $580.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $783.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $454.00 each

PCIe x8 Quad Port ..SFP+ Direct Attached Twin Axial Cabling Intel X710-DA4 10GbE Network Adapter. - Fu show $681.00 each

Operating System

None show Included

Microsoft Windows Server 2022 Standard - License and Media, No CALs - up to 16 Cores (additional licenses required for more than 16 CPU cores) show $1,064.00

Microsoft Windows Server 2019 Standard - License and Media, No CALs - up to 16 Cores (additional licenses required for more than 16 CPU cores) show $1,080.00

Ubuntu Server Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Red Hat Enterprise Linux Server Entry Level - Self-Support Subscription - 1 Year - 1-2 Sockets show $410.00

RED HAT Enterprise LINUX SERVER show $850.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepSpecial Order Item, Delivery approximately 3 weeks. show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI input show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpu show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $97.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $119.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $164.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $610.00 each

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $120.00 each

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Xeon® Scalable Processors 3rd Gen
Chipset
Chipset: Intel C621A Chipset
Memory
Memory Type: DDR4 2666MHz ECCR
Memory Type: ECC Registered
DIMMS: 8
Maximum Memory: 512GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2500 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: 10GBase-T
LAN Chipset: Intel® X710-AT2
Second LAN Chipset: Intel® X710-AT2
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 11
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
PCIe Signal
2280 - 22 mm x 80 mm.

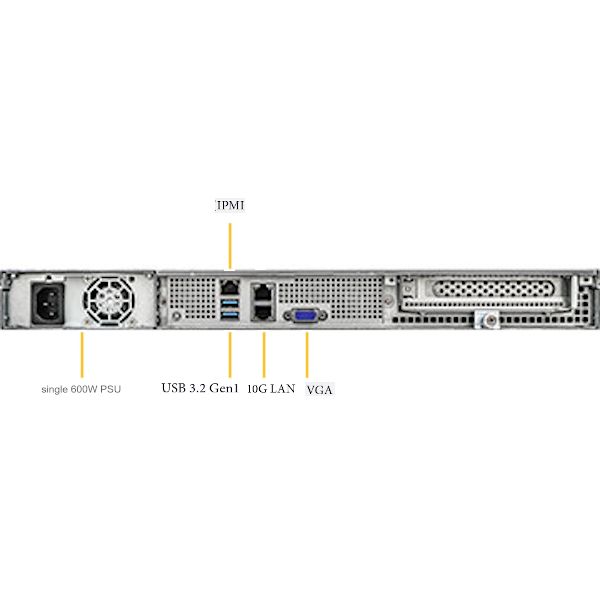

Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 2
Serial (Rear IO): 1
Headers
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 1
FAN Connectors: 4
Management Features
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Ubuntu Server Edition
Windows Server 2019 Std
Windows Server 2022 STD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
Compliance of Component
CE
RoHS
FCC
Warranty of Component
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 1U Rackmount
Color: Black & Silver
Material: Steel & Plastic
Material Thickness: 1mm
Expansion
Full Height Slots: 1
Internal 2.5" Bays: 3
3.5" Hot Swap Bays: 4
Front Ports
USB 3.2 Ports (Front): 2
Cooling System
Maximum Fan Count: 4
Included Fans: 4
Physical
Depth: 21"
Width: 19"
Height: 1.75"
Shipping Box - Depth:
Shipping Box - Width:
Shipping Box - Height:
Shipping Weight: 40lbs
Power
Built-in Chassis Power Supply: Single 600W PSU
Other Features
Features:
1. 1U Rackmount with single 600W PSU
2. 1 FHHL PCIe4.0 x16
3. 4 Hot-swap 3.5'' SATA drive bays, 3 fixed 2.5'' SATA drive bays
4. Remote Management (IPMI)
