SL-1U-MCX-C622DDWT-LM

1U Rack Mount Server - Rackmount featuring Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN, HDD or SSD, Up to 1500GB RAM, 6x USB 3.0, 3x Expansion Slots, Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width. 700W with Input 100 - 140Vac, 750W with Input 200 - 240Vac. 80+ Platinum Certified

Intel® Xeon® Scalable Platform

Type:

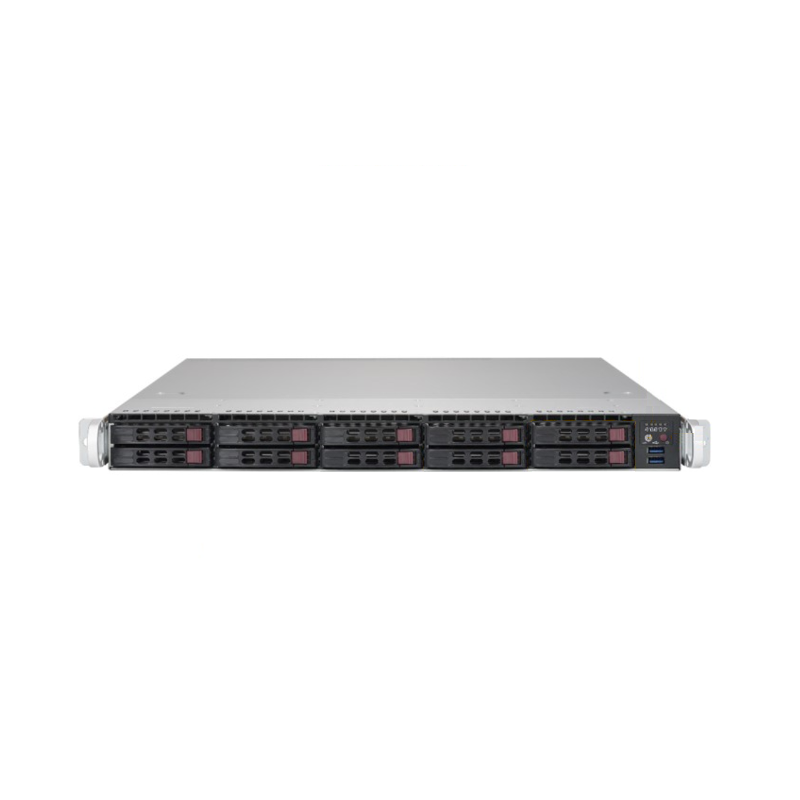

  • 1U Rack Mount Server
  • Depth: 23.50", Max Card Depth: 6""

Motherboard:

  • Featuring Intel C622 Chipset and Intel® Xeon® Scalable Processors processor
  • Full Height Slots:
    2 - PCIe x16
    1 - PCIe x8
  • LAN: 2x 10GBase-T
  • RAID: 0,1,5,10
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    6x USB 3.0 Ports ( 4 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 2 x Xeon Bronze 3104 - 1.70GHz Six Core Intel Processor - 8.25MB Cache (85W)
  • Memory: 2 x 8GB DDR4 2400MHz ECC Registered RAM
  • Hard Drive: 250GB NVMe SSD M.2 3.5GB/2.3GB - Samsung 970 EVO Plus
  • Power Supply: Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width. 700W with Input 100 - 140Vac, 750W with Input 200 - 240Vac. 80+ Platinum Certified
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Proprietary
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Intel® Xeon® Scalable Processors
  • Chipset
  • Chipset: Intel C622 Chipset
  • Memory
  • Memory Type: DDR4 2400MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 12
  • Maximum Memory: 1500GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: ASPEED AST2500 BMC
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 10GBase-T
  • LAN Chipset: Intel® X722
  • Second LAN Chipset: Intel® X722
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 14
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • PCIe
  • 110mm
  • 42mm
  • 60mm
  • 80mm
  • Rear IO
  • USB 3.0 Ports (on IO): 4
  • Headers
  • USB 3.0 Ports (on Headers): 2
  • FAN Connectors: 5
  • Chassis Intrusion
  • Management Features
  • IPMI
  • Watch Dog
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows 10 IoT Ent 2019 LTSC
  • Windows Server 2016 STD
  • Windows Server 2019 Std
  • RED HAT Enterprise LINUX SERVER BASIC
  • RED HAT Enterprise LINUX WORKSTATION STANDARD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • CB
  • CCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

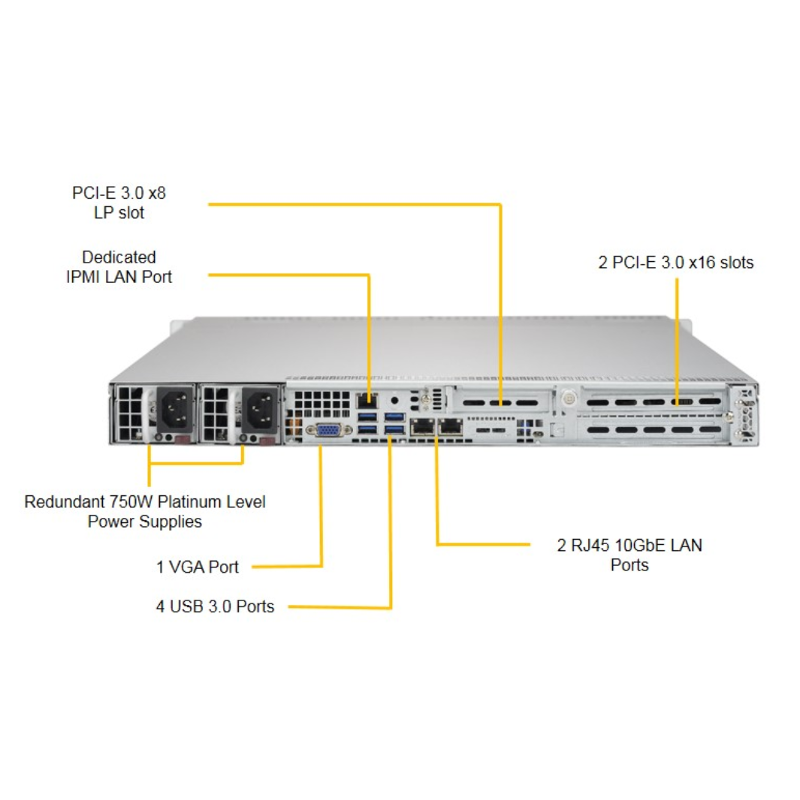

    PCI-Express

      • 2 PCI-E 3.0 x16 (FHHL) slots
      • 1 PCI-E 3.0 x8 (LP) slot
      • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
      • 1 PCI-E M.2 SSD slot



    (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 2
  • Low Profile Slots: 1
  • Max Card Depth: 6""
  • 2.5" Hot Swap Bays: 10
  • Cooling System
  • Maximum Fan Count: 6
  • Included Fans: 4
  • Physical
  • Depth: 23.50"
  • Depth (Inches): 23.5
  • Width: 17.20"
  • Height: 1.70"
  • Shipping Box - Depth: 32"
  • Shipping Box - Width: 24"
  • Shipping Box - Height: 8"
  • Shipping Weight: 46lbs
  • Power
  • Built-in Chassis Power Supply: Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width. 700W with Input 100 - 140Vac, 750W with Input 200 - 240Vac. 80+ Platinum Certified
  • Other Features
  • Features:

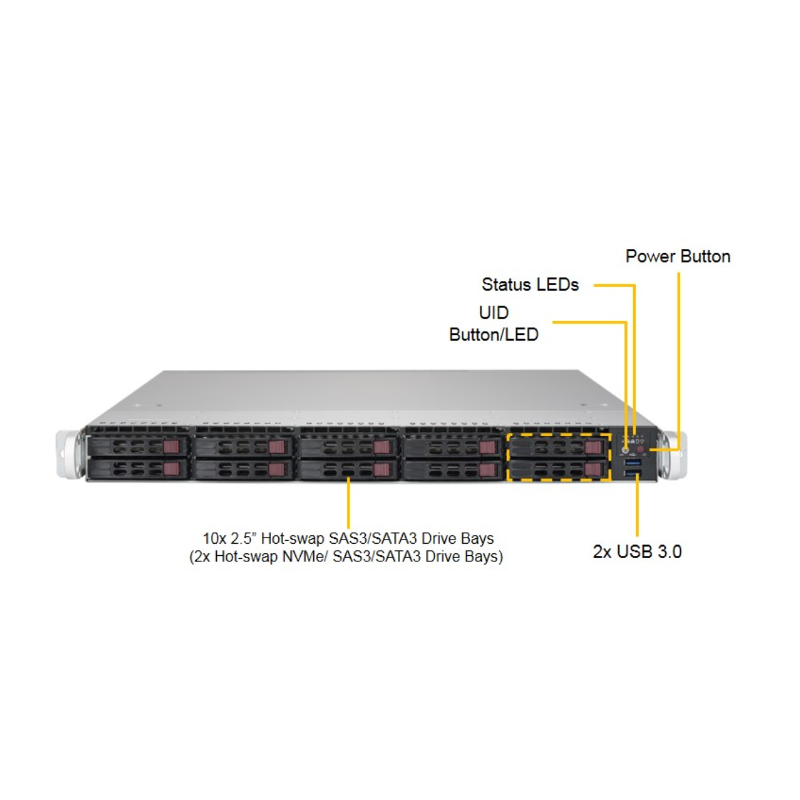

     10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA3)
