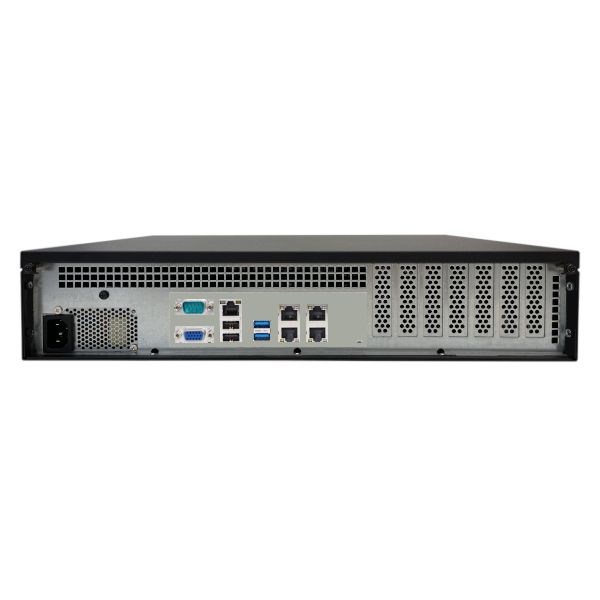

SL-2U-C256STH-4LN-SG
2U Rack Mount Server - Rackmount featuring Intel C256 Chipset, Intel® Xeon® E-2300/Pentium® Processor, 4x 1GbE + 1GbE + 1GbE + 1GbE + IPMI LAN, 2x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 3x Expansion Slots.
Type:
- 2U Rack Mount Server
- Depth: 13.13"
Motherboard:
- Featuring Intel C256 Chipset and Intel® Xeon® E-2300/Pentium® Processor processor
- Low Profile Slots:
1 - PCIe x16
2 - PCIe x8 - LAN: 4x Ports (1GbE + 1GbE + 1GbE + 1GbE + IPMI)
- RAID: 0,1,5,10
- Video: VGA
- Audio: No Onboard Audio
- Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: Intel Xeon E-2314 (Up to 4.5 GHz) - 2.8 GHz - 4 core - 4 threads - 8MB Cache - E-2300 Series (65W)
- Memory: 2 x 8GB DDR4 3200MHz ECCU RAM
- Hard Drive: 250GB, M.2 2280 NV2 NVMe SSD Read 3500mb/s, Write 2800mb/s
- Power Supply: 400W 1U FLEX ATX Power Supply - 80+ Gold Efficient
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

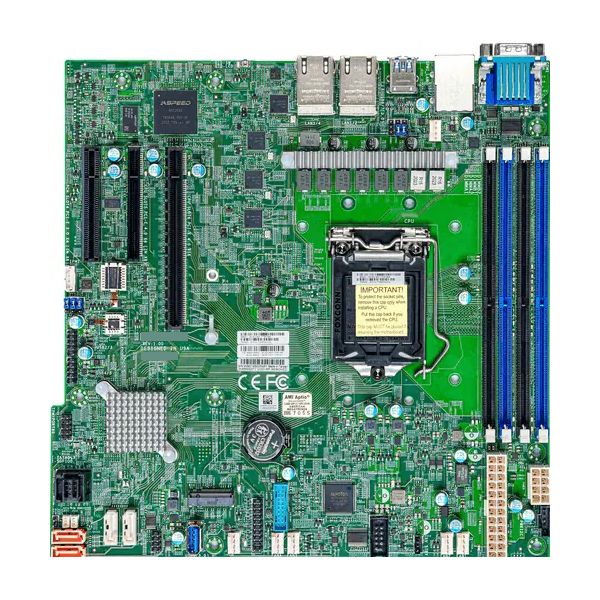

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® E-2300/Pentium® Processor
- Chipset
- Chipset: Intel C256 Chipset
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 4
- LAN Type: 1GbE + 1GbE + 1GbE + 1GbE + IPMI
- LAN Chipset: Intel® i210
- Second LAN Chipset: Intel® i210
- Third LAN Chipset: Intel® i210
- Fourth LAN Chipset: Intel® i210
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x8 Slots On Motherboard: 2
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.

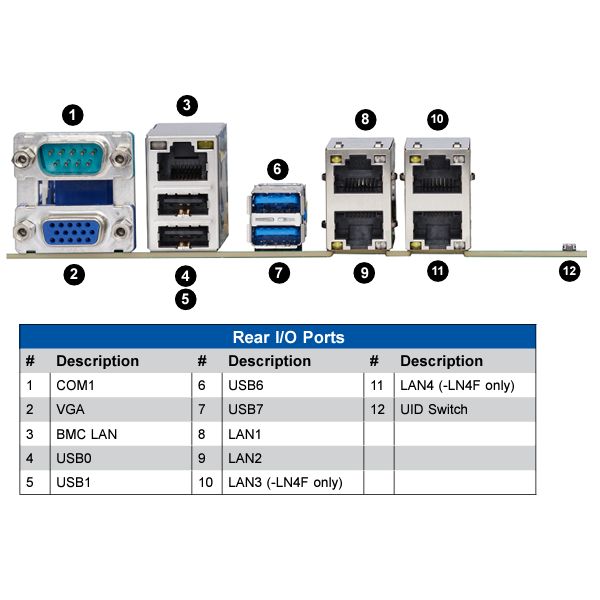

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.0 Type A Interal: 1
- Serial (via Headers): 1
- FAN Connectors: 6
- TPM Support: Via 2.0 Header
- Management Features
- IPMI
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows Server 2019 Std
- Windows Server 2022 STD
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- FCC
- Other Features
- Features:
PCIe
1 PCIe 3.0 x4 (in x8 slot),
1 PCIe 4.0 x16,
1 PCIe 4.0 x4 (in x8 slot)M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-KeyLAN
4 RJ45 Gigabit Ethernet LAN ports - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Low Profile Slots: 7
- Internal 3.5" Bays: 2
- Internal 2.5" Bays: 4
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Physical
- Depth: 13.13"
- Width: 17"
- Height: 3.50"
- Shipping Box - Depth: 20"
- Shipping Box - Width: 17"
- Shipping Box - Height: 9"
- Shipping Weight: 12lbs
- Other Features
- Chassis Warranty: 1 Year
