SL-2U-MCX-C602-WA-1

2U Rack Mount Server - Rackmount featuring Intel C602 Chipset, Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP'), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 512GB RAM, 6x USB 2.0, 4x USB 3.0, 6x Expansion Slots, 750W Power Supply

2U Rack Mount Server - Rackmount featuring Intel C602 Chipset, Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP'), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 512GB RAM, 6x USB 2.0, 4x USB 3.0, 6x Expansion Slots
  • Angle
  • I/O
  • Angle
  • TOP

Type:

  • 2U Rack Mount Server
  • Depth: 25.98", Max Card Depth: 12""

Motherboard:

  • Featuring Intel C602 Chipset and Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP') processor
  • Low Profile Slots:
    3 - PCIe x16
    3 - PCIe x8
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10 via Intel RMS Modules
  • Video: N/A
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC889
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    2x Firewires (Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 2 x  E5-2603 v2 - 1.80GHz Intel Xeon Quad Core Processor - 10MB Cache (80W) - Upgradeable
  • Memory: 2 x  4GB DDR3 1600MHz ECC Registered RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - WD GOLD Series - Upgradeable
  • Power Supply: 750W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Plug-In Boards
Add-In Graphic Card
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

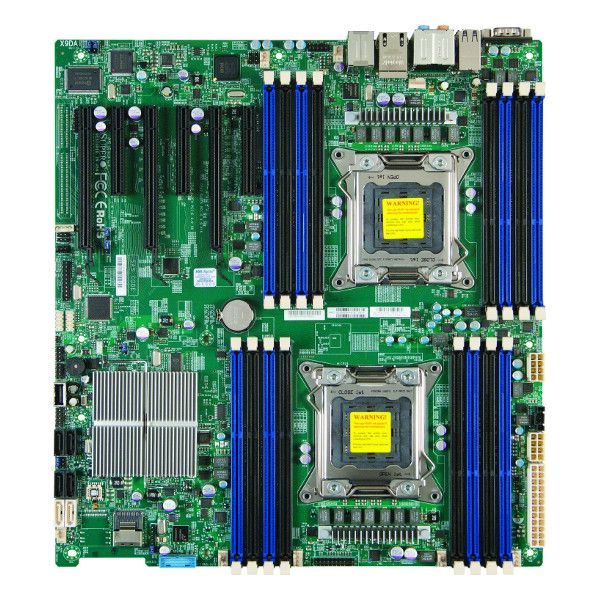

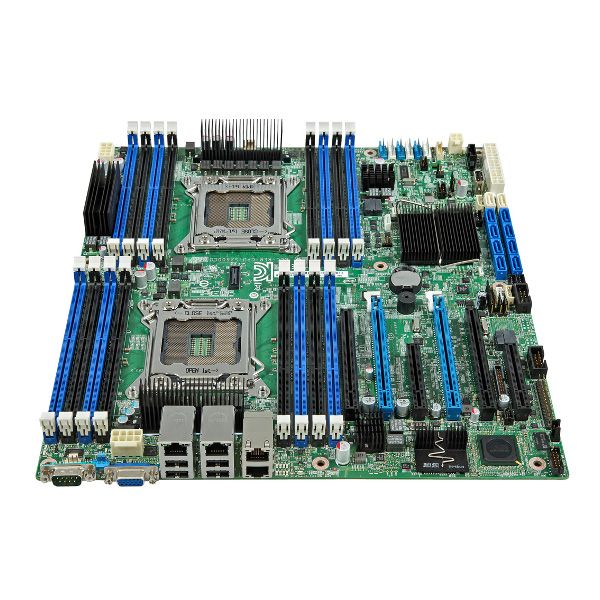

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Extended ATX
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP')
  • Chipset
  • Chipset: Intel C602 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 16
  • Maximum Memory: 512GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC889
  • On Board Video
  • Video Chipset: None
  • Video on IO: N/A
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i350
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 8
  • SATA III Ports (6GB): 2
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • PCI Express x8 Slots On Motherboard: 3
  • mini PCIe

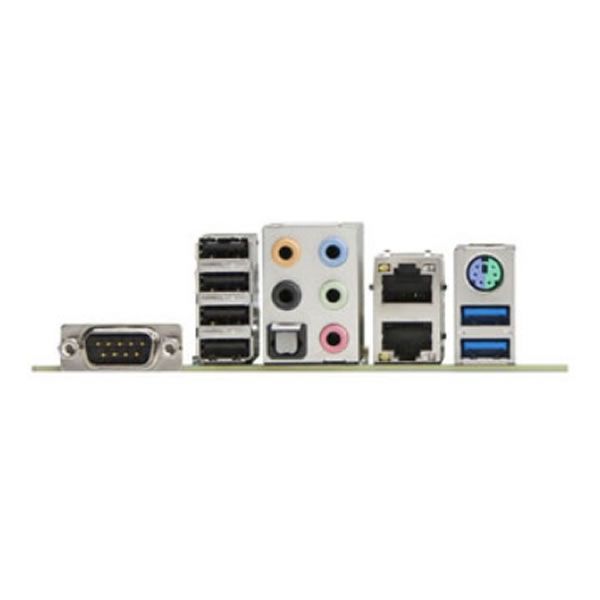

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • SPDIF Connector: 1
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Firewire Ports: 2
  • Serial (via Headers): 1
  • FAN Connectors: 8
  • DOM
  • Chassis Intrusion
  • TPM Support: Via 1.2 Header
  • Management Features
  • NMI
  • Watch Dog
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 64-Bit
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows Server 2012
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:
    • 3x PCI-E 3.0 x16 slots
    • 2x PCI-E 3.0 x8 slots
    • 1x PCI-E 3.0 x4 (in x8) slot

      (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.



    If you have any questions, please discuss with our Sales Engineers.



  • Motherboard Warranty: 1 Year

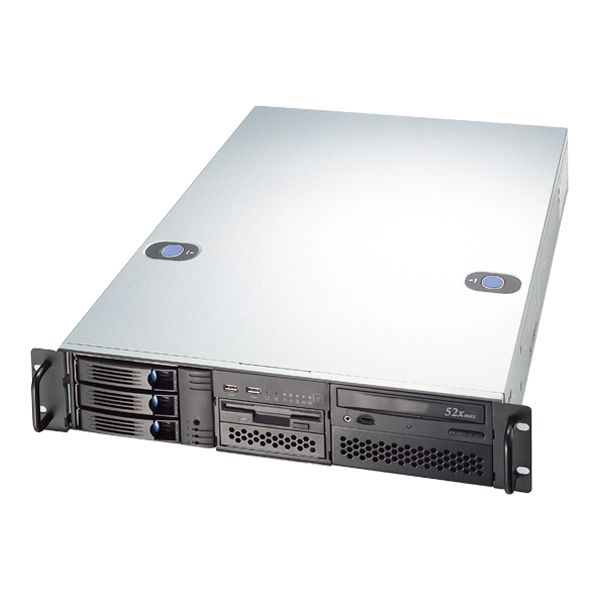

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: SSI EEB
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 6
  • Max Card Depth: 12""
  • External 5.25" Bays: 2
  • External 3.5" Bays: 3
  • 3.5" Hot Swap Bays: 3
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 4
  • Included Fans: 4
  • Physical
  • Depth: 660mm
  • Depth (Inches): 25.98
  • Width: 430mm
  • Height: 88mm
  • Shipping Box - Depth: 20"
  • Shipping Box - Width: 40"
  • Shipping Box - Height: 40"
  • Shipping Weight: 28lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 750W Power Supply
