SL-2U-MCX-C602GZ-ML-1 This item is no longer available.

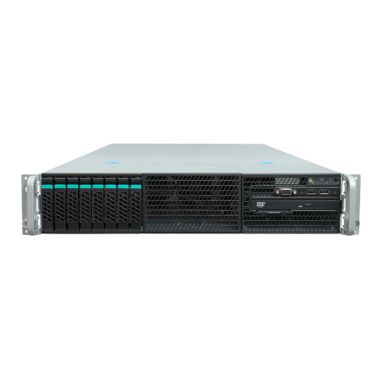

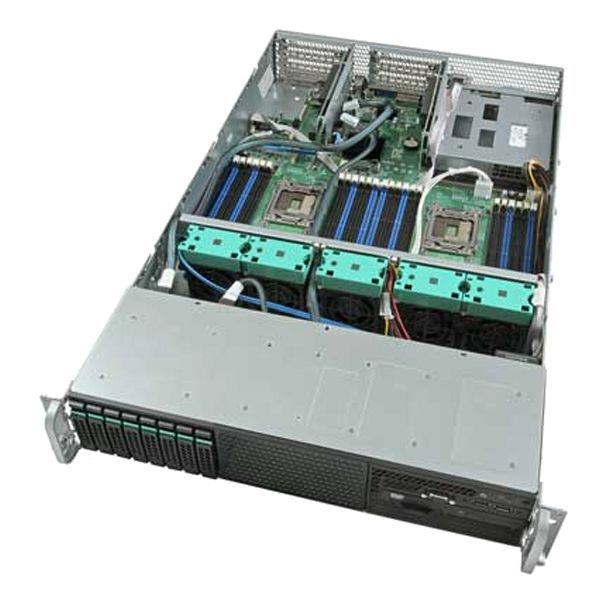

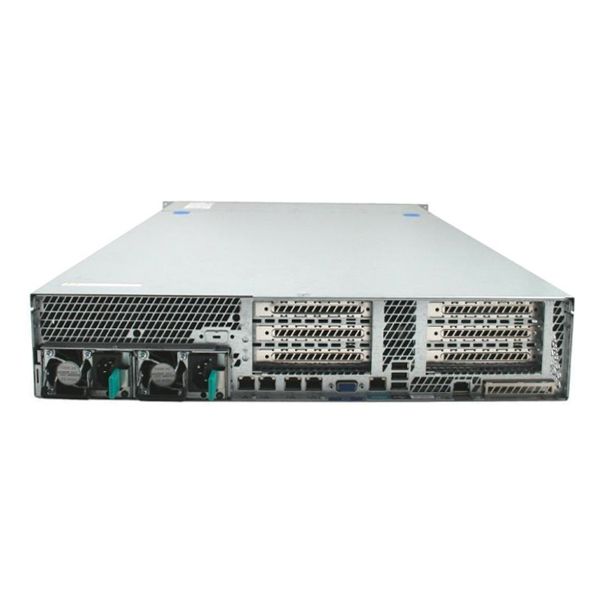

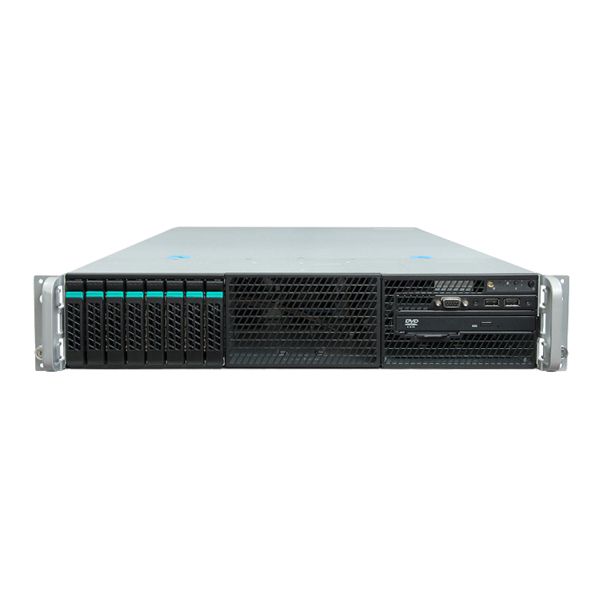

2U Rack Mount Server - Rackmount featuring Intel C602 Chipset, Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP'), 4x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 768GB RAM, 8x USB 2.0, 6x Expansion Slots, 750W Platinum Efficient Redundant Power Supply (1+1)

Dual Xeon CPUs

Type:

  • 2U Rack Mount Server
  • Depth: 16.93", Max Card Depth: 12"

Motherboard:

  • Featuring Intel C602 Chipset and Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP') processor
  • Full Height Slots:
    6 - PCIe x8
  • LAN: 4x GB (10/100/1000)
  • RAID: 0,1,5,10,50,60 via Intel RMS Modules
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 6 Rear )
    2x COM Ports (Rear)
    (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)

Also Included:

  • Processor: 2 x E5-2603 v2 - 1.80GHz Intel Xeon Quad Core Processor - 10MB Cache (80W)
  • Memory: 2 x 4GB DDR3 1600MHz ECC Registered RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 2.5" - Seagate Enterprise Capacity V.3 HDD
  • Power Supply: 750W Platinum Efficient Redundant Power Supply (1+1)
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: 16.5" x 16.5"
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP')
  • Chipset
  • Chipset: Intel C602 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 24
  • Maximum Memory: 768GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 4
  • LAN Type: GB (10/100/1000)
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • Rear IO
  • USB 2.0 Ports (on IO): 6
  • Firewire Ports: 1
  • Serial (Rear IO): 2
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Management Features
  • IPMI
  • TPM Support: 1.2 Module Included
  • Environmental
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • LINUX Ubuntu Desktop
  • Windows Server 2012
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails
  • Expansion
  • Full Height Slots: 6
  • Max Card Depth: 12"
  • 2.5" Hot Swap Bays: 8
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 5
  • Included Fans: 5
  • Physical
  • Depth: 16.93"
  • Depth (Inches): 16.93
  • Width: 27.95"
  • Height: 3.44"
  • Power
  • Built-in Chassis Power Supply: 750W Platinum Efficient Redundant Power Supply (1+1)
