SL-2U-MCX-C621A-HB1-DM

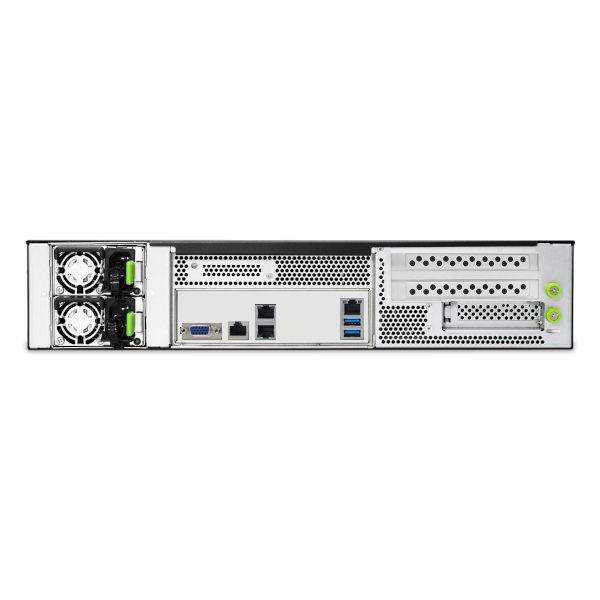

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2025) with Intel C621A Chipset, Intel® Xeon® Scalable Processors 3rd Gen, 2x GB (10/100/1000) LAN, Up to 128GB RAM, 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 2x Expansion Slots, Power Supply 800W 1+1 redundant PSU 80+ Platinum.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 17.72"

Motherboard:

Featuring Intel C621A Chipset and Intel® Xeon® Scalable Processors 3rd Gen processor
Long Production Cycle Motherboard (Through Q1 2025)
Full Height Slots:
1 - PCIe x16
1 - PCIe x8
LAN: 2x Ports (GB (10/100/1000))
RAID: 0,1,5,10
Video: VGA
Audio: No Onboard Audio
Ports:
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
See specifications for more ports
Operating Temperature: 0ºC to 0ºC (0ºF to 0ºF)

Also Included:

Processor: 2 x 3rd Gen Xeon Silver 4310 - 2.1GHz (up to 3.3GHz) Twelve Core Intel Processor - 18MB Cache (120W)
Memory: 4 x 8GB DDR4 2666MHz ECC Registered RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 800W 1+1 redundant PSU 80+ Platinum
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

2 x 3rd Gen Xeon Silver 4310 - 2.1GHz (up to 3.3GHz) Twelve Core Intel Processor - 18MB Cache (120W) show $763.00

2 x 3rd Gen Xeon Silver 4314 - 2.4GHz (up to 3.4GHz) Sixteen Core Intel Processor - 24MB Cache (135W) show $950.00

2 x 3rd Gen Xeon Gold 6338 - 2.0GHz (up to 3.2GHz) Thirty-Two Core Intel Processor - 48MB Cache (205W) show $3,733.00

2 x 3rd Gen Xeon Gold 6346 - 3.1GHz (up to 3.6GHz) Sixteen Core Intel Processor - 36MB Cache (205W) show $3,282.00

2 x 3rd Gen Xeon Gold 6354 - 3.0GHz (up to 3.6GHz) Eighteen Core Intel Processor - 39MB Cache (205W) show $3,505.00

2 x 3rd Gen Xeon Platinum 8358 - 2.6GHz (up to 3.4GHz) Thirty-Two Core Intel Processor - 48MB Cache (270W) show $5,637.00

Memory

x 8GB DDR4 2666MHz ECC Registered RAM show $50.00

x 16GB DDR4 2666MHz ECC Registered RAM show $101.00

x 32GB DDR4 2666MHz ECC Registered RAM show $120.00

x 64GB DDR4 2666MHz ECC Registered RAM (RDIMM) show $219.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Removable Drive Bay

None show Included

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $136.00

Additional Hard Drives

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $488.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Riser Card

1x PCIe x16 slot, 1x PCIe x8 slot (shared), 1x PCIe x8 LP slot riser card show $0.00

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

NVIDIA GeForce GT 1030 2GB 64-bit GDDR5 PCIe 3.0 x16 (x4 active) Video Card - Low Profile Capable - DV show $218.00 each

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - N show $244.00 each

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - show $464.00 each

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - show $555.00 each

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height C show $791.00 each

NVIDIA Quadro RTX A4000 16GB GDDR6, PCIe 4.0 x16 show $1,355.00 each

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $229.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $231.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $580.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $783.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $454.00 each

PCIe x8 Quad Port ..SFP+ Direct Attached Twin Axial Cabling Intel X710-DA4 10GbE Network Adapter. - Fu show $681.00 each

Operating System

None show Included

Microsoft Windows Server 2019 Standard - License and Media, No CALs - up to 16 Cores (additional licenses required for more than 16 CPU cores) show $1,080.00

Ubuntu Server Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Red Hat Enterprise Linux Server Entry Level - Self-Support Subscription - 1 Year - 1-2 Sockets show $410.00

RED HAT Enterprise LINUX SERVER show $850.00

Red Hat Enterprise Linux WS - Standard Subscription - 1 Year - 1-2 Sockets show $350.00

Warranty

One-Year Depot Warranty show $0.00

Two-Year Depot Warranty show $199.00

One Year 24x7 Onsite Warranty (USA/Can) show $299.00

One-Year 8x5 Onsite Warranty (USA/Can) show $245.00

Three-Year Depot Warranty show $399.00

Two-Year 8x5 Onsite Warranty (USA/Can) show $475.00

Two-Year 24x7 Onsite Warranty (USA/Can) show $515.00

Three-Year 8x5 Onsite Warranty (USA/Can) show $760.00

Three-Year 24x7 Onsite Warranty (USA/Can) show $805.00

Monitors

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - show $952.00 each

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" show $1,482.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") w show $1,058.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") w show $1,112.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchp show $1,589.00 each

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" show $1,047.00 each

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - show $1,578.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $97.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $119.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $164.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $610.00 each

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $120.00 each

Mounting Option

None show Included

20" Tool-less Sliding rails (20"- 28.5") show $87.00

* Required Fields

Technical Specifications

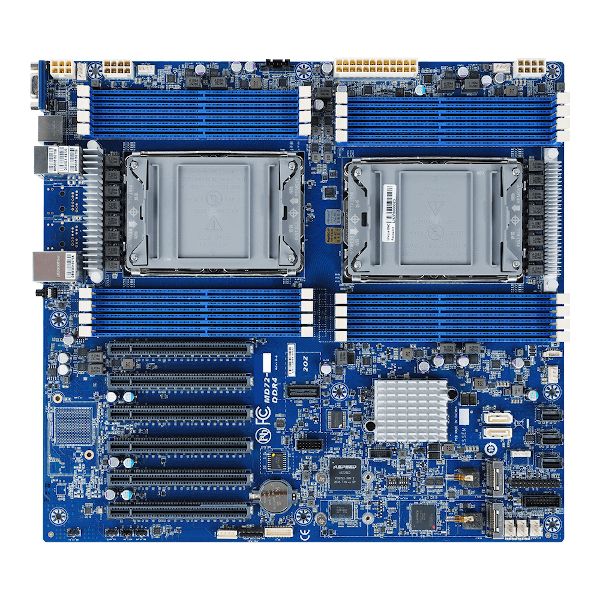

MotherBoard Specifications:

Motherboard Model
Motherboard Type: Extended ATX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2025
Supported CPU
Number of Processors: 2
Processor Type: Intel® Xeon® Scalable Processors 3rd Gen
Chipset
Chipset: Intel C621A Chipset
Memory
Memory Type: DDR4 2666MHz ECCR
Memory Type: ECC Registered
DIMMS: 16
Maximum Memory: 128GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2500 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: GB (10/100/1000)
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i210AT
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 14
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
22110 - 22 mm x 110 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
22110 - 22 mm x 110 mm.
2280 - 22 mm x 80 mm.

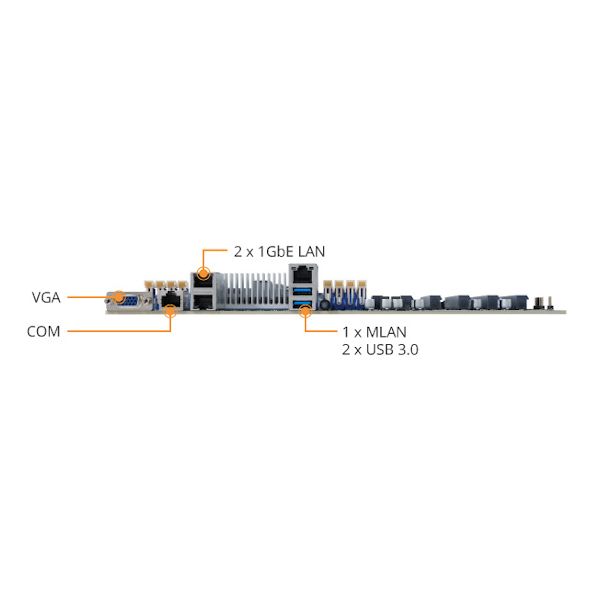

Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 2
Headers
USB 3.2 Gen 1 Ports (on Headers): 2
FAN Connectors: 7
TPM Support: Via 2.0 Header
Management Features
IPMI
Environmental
Operating Temperature: 0ºC to 0ºC (0ºF to 0ºF )
High Humidity: 80
Low Humidity: 8
Operating System Support
Windows Server 2016 STD
Windows Server 2019 Std
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
Ubuntu Server Edition
VMWare Compatible: Partially Supported
Compliance of Component
CE
FCC
Other Features
Features:
Expansion Slots

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

2 x M.2 slots:
- M-key
- PCIe Gen4 x4 per slot
- Supports NGFF-22110/2280 cards
- From CPU

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
