SL-2U-MCX-C622SPH-LE

2U Rack Mount Server - Rackmount featuring Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN, HDD or SSD, 2x Serial, Up to 256GB RAM, 2x USB 2.0, 2x USB 3.0, 4x Expansion Slots, 800W Redundant Power Supplies with PMBus 80+ Titanium

2U Rack Mount Server - Rackmount featuring Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN, HDD or SSD, 2x Serial, Up to 256GB RAM, 2x USB 2.0, 2x USB 3.0, 4x Expansion Slots, 800W Redundant Power Supplies with PMBus 80+ Titanium

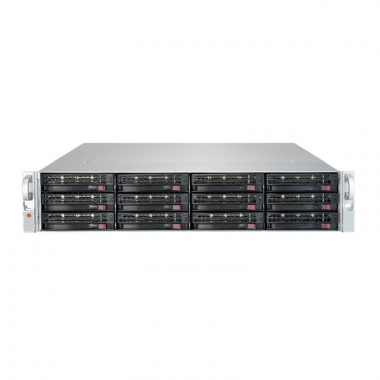

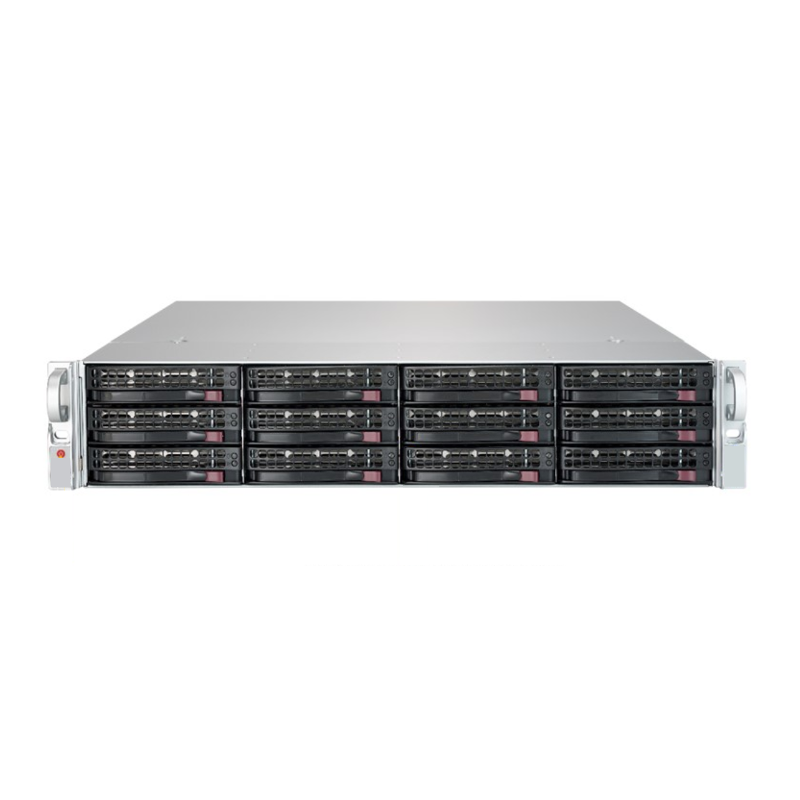

  • Front

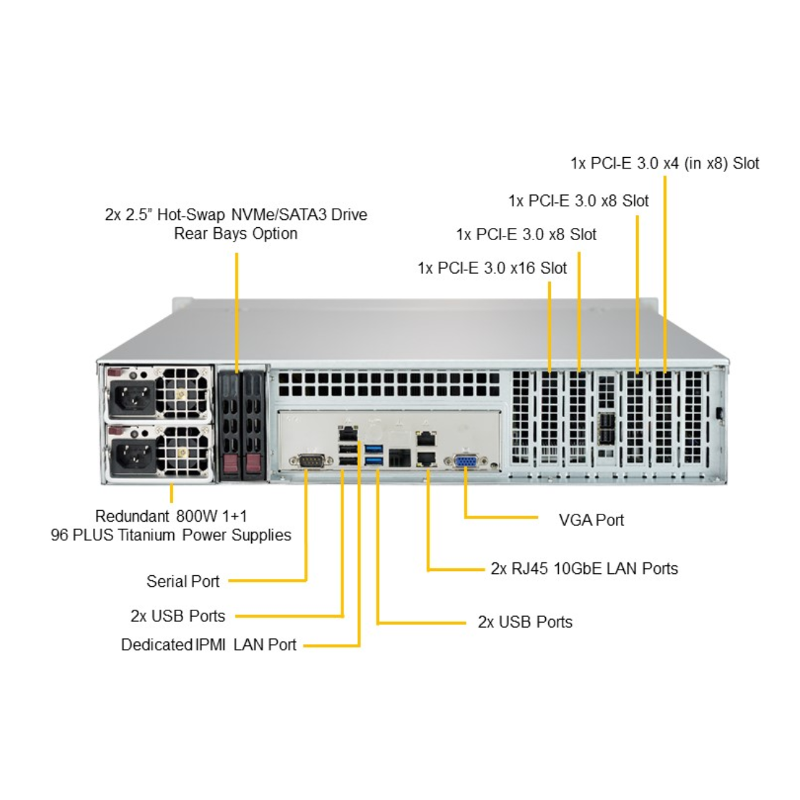

  • Rear I/O

Type:

  • 2U Rack Mount Server
  • Depth: 25.60", Max Card Depth: 14"

Motherboard:

  • Featuring Intel C622 Chipset and Intel® Xeon® Scalable Processors processor
  • Low Profile Slots:
    1 - PCIe x16
    2 - PCIe x8
    1 - PCIe x4
  • LAN: 2x 10GBase-T
  • RAID: 0,1,5,10
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    2x USB 2.0 Ports ( 2 Rear )
    2x USB 3.0 Ports ( 2 Rear )
    2x COM Ports (1 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 1.70GHz Six Core Intel Xeon Bronze 3104 Processor - 8.25MB Cache (85W) - Upgradeable
  • Memory: 8GB DDR4 2400MHz ECC Registered RAM - Upgradeable
  • Hard Drive: 250GB NVMe SSD M.2 3.4GB/1.5GB - Samsung 970 EVO - Upgradeable
  • Power Supply: 800W Redundant Power Supplies with PMBus 80+ Titanium
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Plug-In Boards
Add-In Graphic Card
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Intel® Xeon® Scalable Processors
  • Chipset
  • Chipset: Intel C622 Chipset
  • Memory
  • Memory Type: DDR4 2400Mhz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 8
  • Maximum Memory: 256GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: ASPEED AST2500 BMC
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: 10GBase-T
  • LAN Chipset: Intel® X557
  • Second LAN Chipset: Intel® X557
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • SAS 6G Ports: 8
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x8 Slots On Motherboard: 2
  • PCI Express x4 Slots On Motherboard: 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • 80mm
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Headers
  • Serial (via Headers): 1
  • FAN Connectors: 8
  • Management Features
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    PCI-Express

    • 1 PCI-E 3.0 x16
    • 1 PCI-E 3.0 x8
    • 1 PCI-E 3.0 x8
    • 1 PCI-E 2.0 x4 (in x8)
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black & Silver
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 4
  • Max Card Depth: 14"
  • 2.5" Hot Swap Bays: 2
  • 3.5" Hot Swap Bays: 12
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 3
  • Physical
  • Depth: 25.60"
  • Width: 17.20"
  • Height: 3.50"
  • Shipping Box - Depth: 34"
  • Shipping Box - Width: 26.50"
  • Shipping Box - Height: 11.50"
  • Shipping Weight: 60lbs
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 800W Redundant Power Supplies with PMBus 80+ Titanium
