SL-1U-LL6412J-GC-NF-1
1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2036) with Intel Celeron SoC, Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz), 2x 2.5GbE + 2.5GbE LAN, 6x Serial, Up to 32GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), Power Supply 60W AC/DC Power Adapter Included.
Fanless Rackmount
Type:
- 1U Rack Mount Industrial PC
- Depth: 11", Max Card Depth: 8.5"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
- Long Production Cycle Motherboard (Through Q1 2036)
- LAN: 2x Ports (2.5GbE + 2.5GbE)
- Video: 1x HDMI
- Audio: Onboard Audio
- Ports:
6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
6x COM Ports (4 RS232 Internal Headers, 2 RS232/422/485 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 8GB DDR4 3200MHz SODIMM RAM
- Hard Drive: 500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s
- Power Supply: 60W AC/DC Power Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Fanless
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2036
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: 1x HDMI
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type and IPMI: 2.5GbE + 2.5GbE
- LAN Chipset: Intel® I225-V 2.5GbE Ethernet
- Second LAN Chipset: Intel® i225-V 2.5GbE Ethernet
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 1
- Mini PCIe
- SIM Card Slot On Motherboard: Nano SIM
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- Serial (via Headers): 4
- Serial 232/422/485 Ports: 2
- FAN Connectors: 1
- Audio on Headers
- LVDS
- DC Power: 12V DC-in
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 10%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 IoT 2024 LTSC Entry
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 8.5"
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2

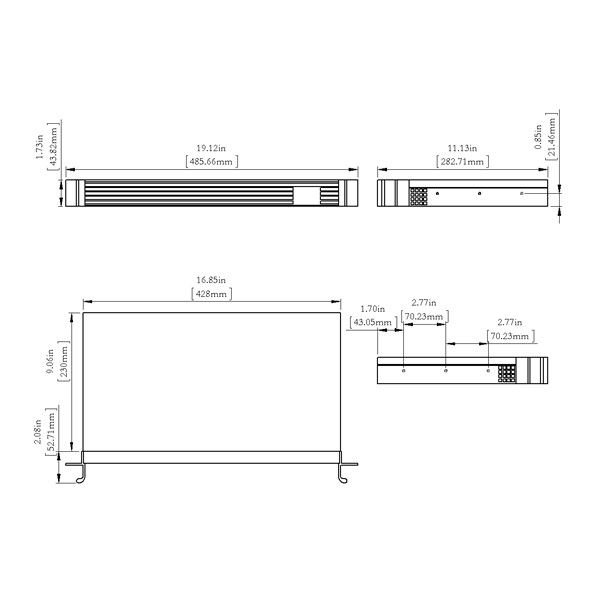

- Physical
- Depth: 11"
- Depth (Inches): 11
- Width: 19.10"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 15"
- Shipping Box - Height: 5"
- Shipping Weight: 15lbs
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 60W AC/DC Power Adapter Included
