SL-FIREWIRE-400-ST-x1

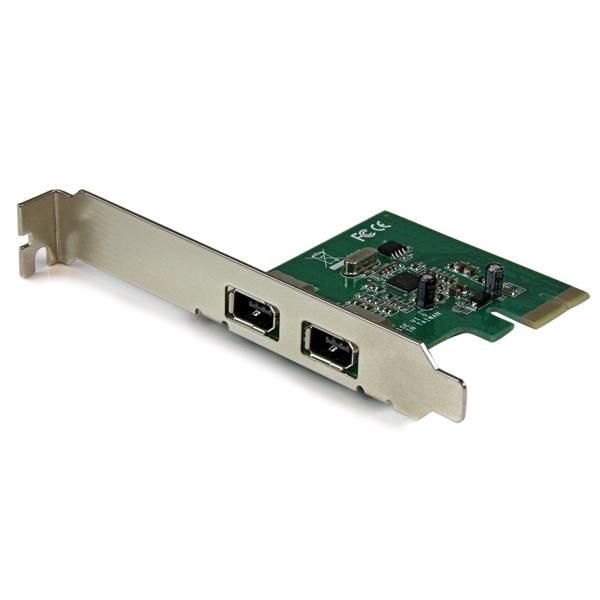

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile
  • Firewire
  • Two 6-pin FireWire 400 ports, each with transfer rates up to 400Mbps
  • Built with a native PCI Express chipset, no bridge chip
  • Includes low profile/half-height installation bracket
Related Products
Technical Specifications
HARDWARE
  Bus Type PCI Express
  Card Type Standard Profile (LP bracket incl.)
  Chipset ID VIA/VLI - VT6315N
  Interface FireWire 400 (1394a)
  Port Style Integrated on Card
  Ports 2
PERFORMANCE
  Maximum Data Transfer Rate 400 Mbps
  Type and Rate FireWire 400 IEEE-1394a - 400 Mbit/s
CONNECTOR(S)
  Connector Type(s) 1 - PCI Express x1
  External Ports 2 - FireWire 400 (6 pin, IEEE 1394a)
SOFTWARE
  OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Mac OS X® 10.10 to 10.14
Linux 2.6.x to 4.11.x LTS versions only
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements Available PCI Express Slot
ENVIRONMENTAL
  Humidity 20-80% RH
  Operating Temperature 0°C to 85°C (32°F to 185°F)
  Storage Temperature -55°C to 125°C (-67°F to 257°F)
