SL-FIREWIRE-800/400-SIIG-x1

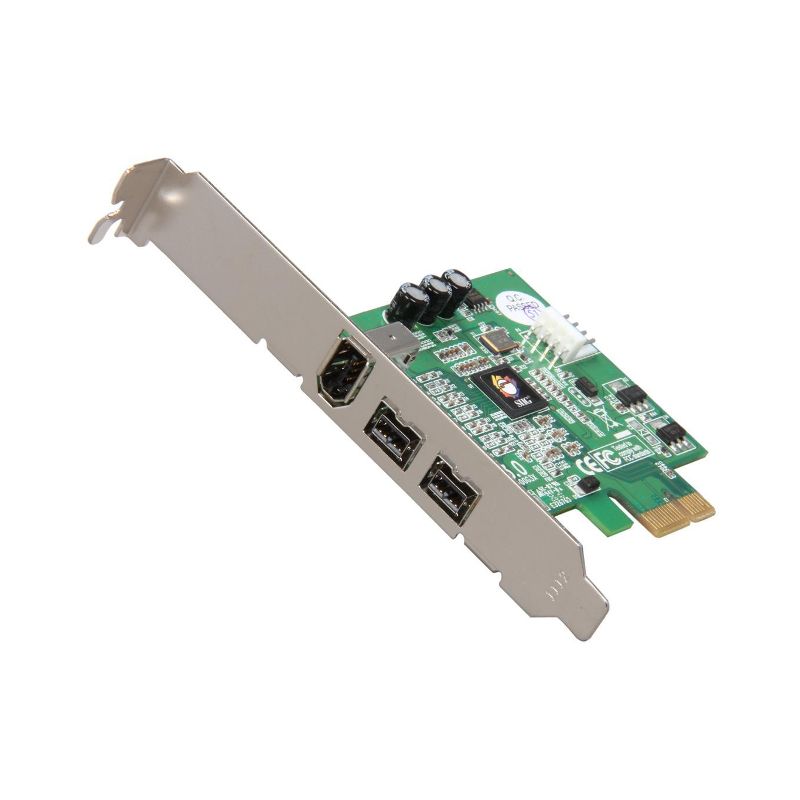

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height or Low Profile

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height or Low Profile
  • Firewire

Features

Features
PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
Installs in any available PCI Express slot and supports data rates up to 800Mbps
Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
Related Products
Technical Specifications

Details

Type
PCI Express to 1394 Card
External 1394 Ports
2 x 9-Pin and 1 x 6-Pin
Standard
1394B
Data Transfer Rate
800/400/200/100 Mbps
Operating Systems Supported
Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
Mac OS X v10.4.x or later
Specifications
Regulatory approval(s): FCC Class B (DoC) & CE
RoHS compliant
Chipset: Texas Instruments TI XIO2213
Bus type: PCI Express x1
Port type: Two 9-pin and one 6-pin external FireWire ports
Compliant with PCI Express Base Specification Revision 1.0a
Supports IEEE P1394b and backwards compatible with 1394a-2000 and 1394-1995 standards
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Supports serial bus data transfer rates of 100, 200, 400 and 800 Mb/sec and supports up to 63 devices
Onboard power connector to provide reliable power source
