SL-LAN-PCI-10/100/1000-ST

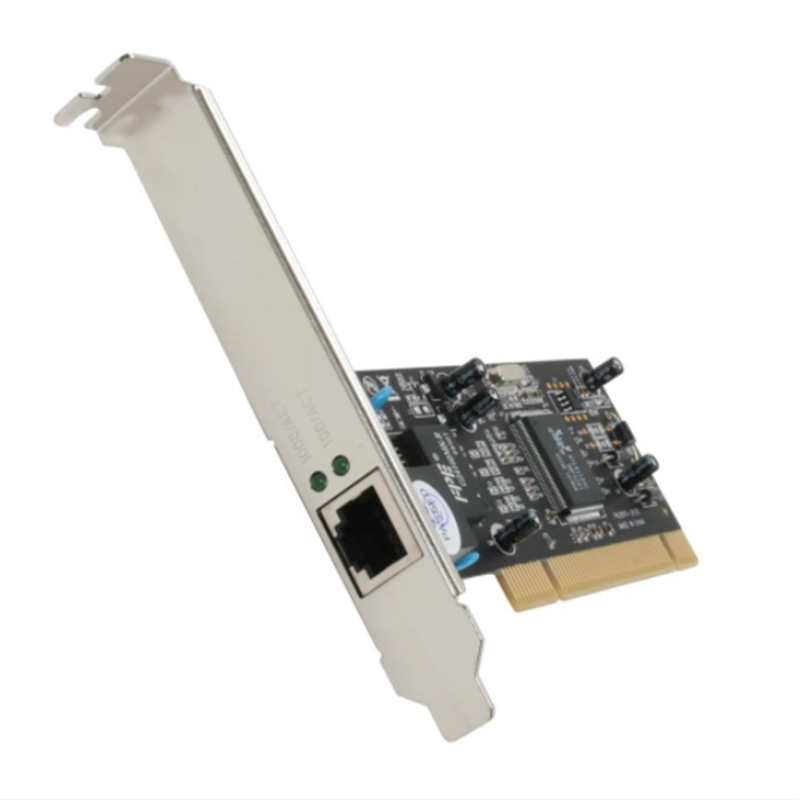

1GbE Network Adapter, Single-Port RJ45, PCI

1GbE Network Adapter, Single-Port RJ45, PCI
  • PCI LAN Card

IEEE 802.1Q VLAN tagging for up to 64 VLANs
IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex
LED indicator shows network link/activity and 10/100/1000Mbits/sec selection
One RJ-45 connector supports 10/100/1000Mbits/sec network speeds and Auto-MDI/MDI-X
Supports 32-bit 33/66MHz PCI Local Bus Master for high-speed operation

Related Products
Technical Specifications

Details

Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Speed
10/100/1000Mbps
Connectors
1 x RJ45
Interface
PCI
BUS
32-bit PCI 2.2
LEDs
1 - 10/100/1000 Mbits/sec Link/Activity
Drivers
Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, ME, NT, 98SE
Windows Server 2012, 2008 R2, 2003(32/64)
Netware Server 5.x, Netware ODI for DOS
Linux 2.6.x and up (Tested up to 3.5), Unix
Wake On LAN
Yes
