SL-WLAN-PCIEx1-N-SI This item is no longer available.

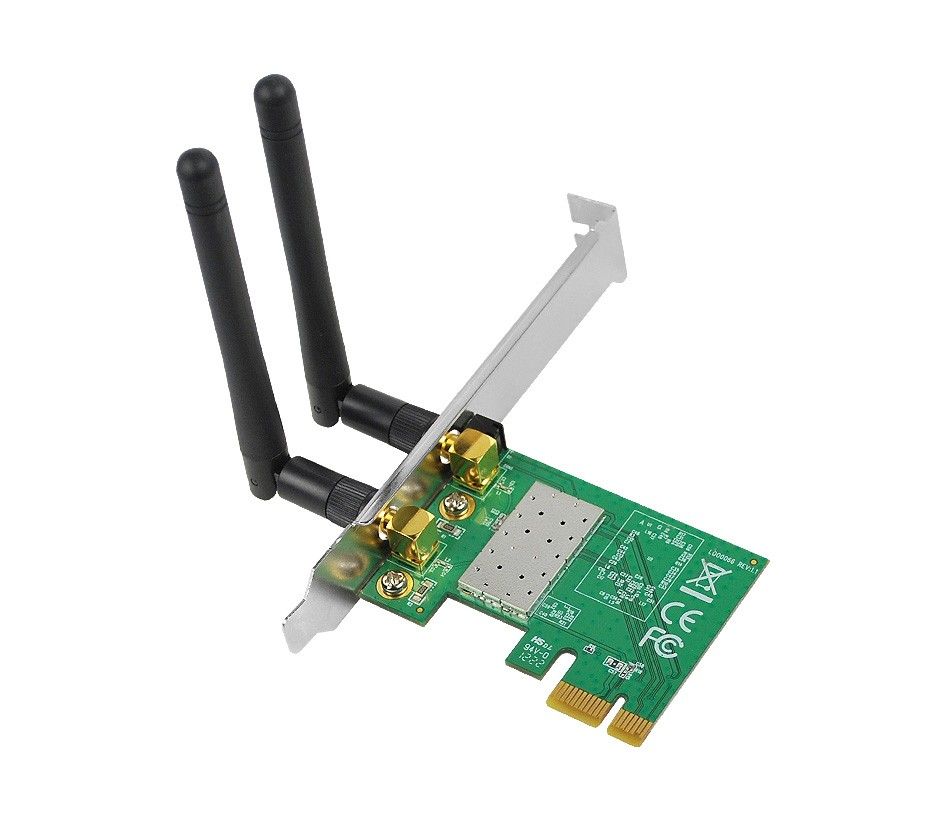

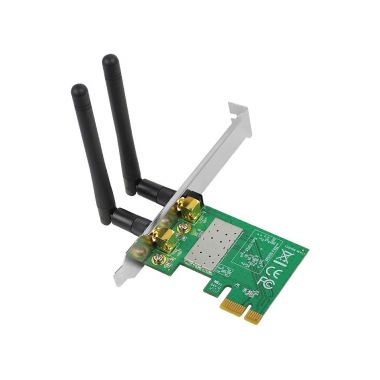

EOL - PCIe x1 Dual-Band Wireless-N Adapter IEEE 802.11a/b/g/n

  • Complies with 2.4GHz IEEE 802.11 b/g/n standards
  • 2T2R with 300Mb/s data rate for both transmitting and receiving
  • Wireless security: 64/128bit WEP, WPA, WPA2
  • Chipset: Ralink RT5392
  • 2-Transmitter & 2-Receiver antennas configuration
  • Supports QoS-WMM, WMM-PS
  • 20MHz / 40MHz Bandwidth
  • Supports WPS (Wi-Fi protected setup)
  • Supports Multiple BSSID
  • Legacy and high throughput modes
  • Infrastructure / Ad-Hoc / Soft AP network modes support
  • Two detachable 2dBi antennas
  • Form factor: Full profile / Low profile
  • Media Access Control: CSMA / CA
  • Frequency Band:
    • 2.400GHz - 2.484GHz
  • Security:
    • 64-bit / 128-bit WEP
    • WPA (TKIP with IEEE 802.1x)
    • WPA2 (AES with IEEE 802.1x)
  • Data Rate
    • 802.11b: 11, 5.5, 2 and 1Mb/s
    • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mb/s; Auto-fall back
    • 802.11n (20MHz channel): up to 144Mb/s
    • 802.11n (40MHz channel): up to 300Mb/s
  • Product:
    • Dimensions: 3.07"(W) x 4.72"(H) x 0.79"(D)
    • Weight: 0.09 lbs
    • Interface: PCI Express, 32-bit
    • Connector: 2-RP-SMA female
  • Environmental conditions:
    • Operating temperature: 32 to 131 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: < 80% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Warranty: 5 years limited
