SD-LP-MCS1P This item is no longer available.

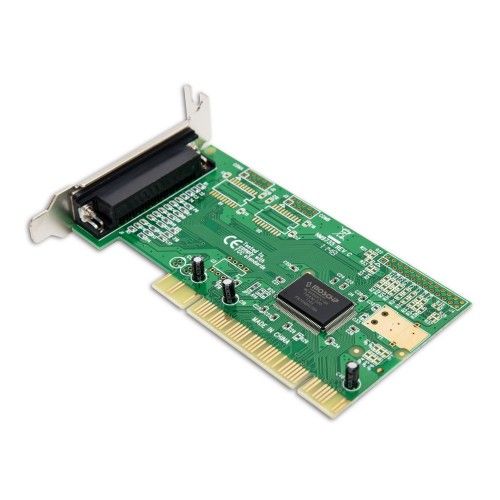

Parallel PCI Card - 1 Port, Low Profile

A newer version of this item is available: SD-PCI-1P
Parallel PCI Card - 1 Port, Low Profile
  • SD-LP-MCS1P
  • PCI low profile single port parallel card
  • Easy Plug & installation automatically selects IRQ and I/O address
  • Supports PCI IRQ sharing
  • Support 32-bit PCI Bus, PCI Specification 2.1
  • Support Re-mapping to Legacy Address
  • Supports more than one card into system
Technical Specifications
  • PCI lower profile single port parallel card
  • Easy Plug & installation automatically selects IRQ and I/O address
  • Supports PCI IRQ sharing-saves valuable resources for other expansion card
  • Support 32-bit PCI Bus, PCI Specification 2.1
  • Support Re-mapping to Legacy Address
  • Supports more than one card into system
  • Parallel Port:
  • Build-in SPP, PS2, EPP, ECP compatible IEEE 1284 printer port
  • Fast data rates up to 1.5Mbytes/sec
  • Build-in 16 Byte FIFO
  • Support Parallel Devices:
  • Bank Passbook Printer, CF/SM/MMC/SD/PCMCIA reader, CD-R/RWS, EPROM Programmer, Intelligent UPS, Laplink, LS120 Drive, Plotter, Receipt Printer, Scanner etc
  • Notes:Does not support Remap on I/O Address & IRQ
