SD-PCI15039

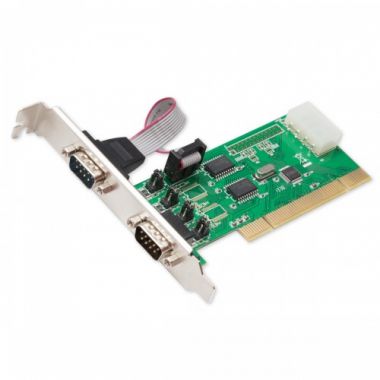

Serial PCI Card - 2 Ports, Full and Low Profile

Serial PCI Card - 2 Ports, Full and Low Profile
  • SD-PCI15039
  • Supports Both Standard Profile and Low Profile Computer Chassis
  • Supports Multiple Cards on One PC
  • Supports PCI Power management 1.2
  • Compatible to Industrial Standard 16C450, 16C550, 16C552 and Enhanced UART
  • Fast Data Rate up to 115.2K bits/sec on Each Port
Related Products
Technical Specifications
  • Supports Both Standard Profile and Low Profile Computer Chassis
  • Jumper Settings: (Voltage for Pin 1 and 9 of Each Serial DB9 Connector) CD/RI +5V +12V
  • Fully Compliant with PCI Local Bus Specification Revision 2.3
  • Supports Multiple Cards on One PC
  • Supports PCI Power management 1.2
  • Compatible to Industrial Standard 16C450, 16C550, 16C552 and Enhanced UART
  • Fast Data Rate up to 115.2K bits/sec on Each Port
  • Supports Hardware and Software Flow Control
  • Supports 5-, 6-, 7-, 8-bit Characters
  • Supports 1 or 2 Stop Bit Generation
  • Supports Even, Odd or No Parity Bit Generation and Detection
  • Built-in 16-byte Depth FIFO in Transmit & Receive Paths of Each Port
  • Built-in Molex Power Feed for Extra Power
  • Notes:Does not support Remap on I/O Address & IRQ
