SI-PEX15037

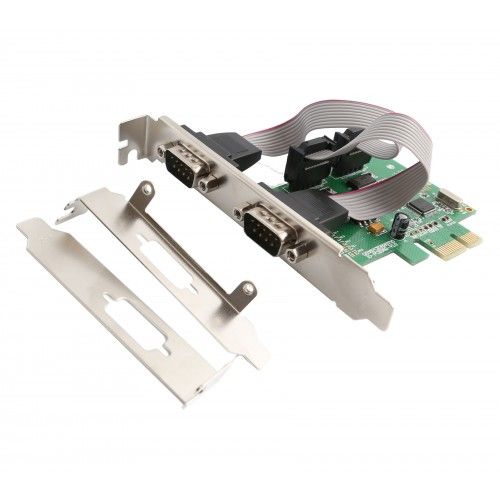

Serial PCIe Card - 2 Ports, Full Height and Low Profile

Serial PCIe Card - 2 Ports, Full Height and Low Profile
  • PCIe 2 Serial Ports

2x RS-232 DB9 serial ports

RS232 Modes

Bi-directional Speeds from 50bps to 16Mbps/Port

Supports Hardware, Software Flow Control

PCI Express x1

Related Products
Technical Specifications
  • Fully Compliant with PCI-e Base Specification, Revision 1.0a
  • PCI-e Multi Function Peripheral Controller with x1 Lane Interface
  • Support for D1, D2, D3hot and D3cold
  • Utilizes 100-Mhz Differential PCI-e Common Reference Clock
  • Supports PCI-e Power Management
  • Serial Port:

2 16c450/550/Extended 550 Compatible UARTs ○Supports RS232 Modes ○Bi-directional Speeds from 50bps to 16Mbps/Port ○Full Serial Modem Control ○Supports Hardware, Software Flow Control ○5, 6, 7, 8 bit Serial Format Support ○Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level ○Even, Odd, None, Space & Mark Parity Supported ○Custom BAUD Rates Supported with External Clock or by Programming Internal PLL ○On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port ○Support Remote Wakeup and Power management Features ○Serial Port Transceiver Shutdown Support ○Support Slow IrDA on all Serial Ports

  • Notes:

Does not support Remap on I/O Address & IRQ
