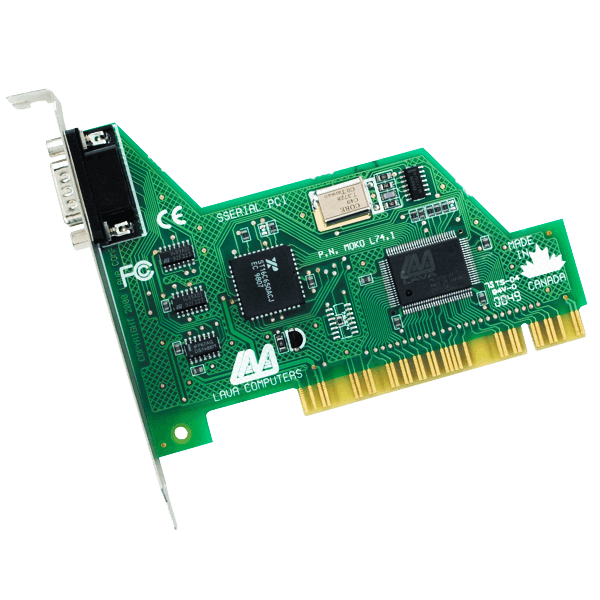

  • Adds one ultra high-speed 16650 UART serial port to any PCI-equipped PC
  • Serial port supports up to 460.8 kbps throughput rate
  • Integrated 32-byte FIFO buffer with software configurable Tx/Rx triggers
  • Easy Plug and Play installation
  • Includes Superlogics Com Port Redirect Utility for renaming COM Ports in Windows 95/98/Me. Also included is the SuperLogics Modem Speed Set Utility software for easy configuration of 230.4 kbps capable external modems
  • Supports Linux/DOS/Windows 3.1/Windows 95/98/NT 4.0/Me/2000/XP/XP x64/2003/2003 x64/Vista Operating Systems
  • Superlogics Lifetime Warranty

General Specs

  • Adds one 9-pin 16650 UART serial port to PCI-equipped PCs
  • Port is capable of a maximum data throughput rate up to 460.8 kbps
  • Integrated 32-byte FIFO buffers with software configurable Rx/Tx triggers, 4x clock, and on-board flow control guarantee errorless data transmission even at top speed
  • Easy Plug and Play installation — automatically selects next available IRQ and I/O address
  • Includes “SuperLogics Com Port Redirect” and “SuperLogics Modem Speed Set” utility software for easy configuration of 230.4 kbps capable external modems
  • Compatible with RS-232 serial peripherals including 56K and ISDN modems,PDAs, digital cameras, bar-code scanners, and UPSes
  • Compliant with PCI Specification 2.1
  • CE
  • SuperLogics Lifetime Warranty

Connectors

  • One DB-9 male RS-232

System Requirements

  • PCI host slot
  • Supports Linux/DOS/Windows 3.1/Windows 95/98/NT 4.0/Me/2000/XP/XP x64/2003/2003 x64/Vista Operating Systems
