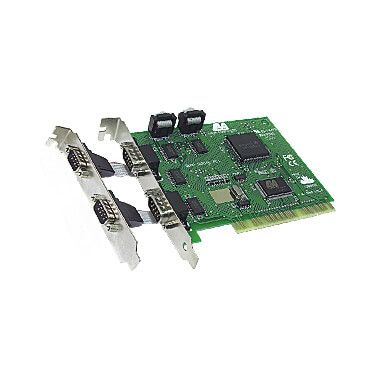

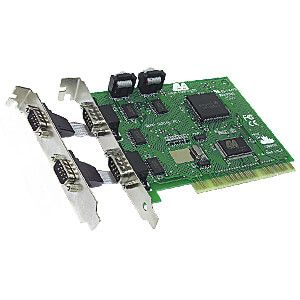

SuperPort-Quad This item is no longer available.

Serial PCI Card, 9pin 16650 UARTs Plug&Play, IRQ sharing - 4 Ports, Full Height..

  • Adds four ultra high-speed 16650 UART serial COM ports to any PCI-equipped PC
  • Serial ports support up to 460.8 kbps throughput rate
  • All four ports share only one system IRQ
  • Integrated 64-byte FIFO buffer with software configurable Tx/Rx triggers
  • Automatically selects next available IRQ and COM addresses in Windows 95/98/Me
  • Easy Plug and Play installation
  • Includes SuperLogics Com Port Redirect Utility for renaming COM Ports. Allows for backward compatibility with software that supports COM 1-4 only
  • Supports Linux/DOS/Windows 3.1/Windows 95/98/NT 4.0/Me/2000/XP/XP x64/2003/2003 x64/Vista Operating Systems
  • SuperLogics Lifetime Warranty

General Specs

  • Adds four 16650 UART serial ports to PCI-equipped PCs
  • Each port is capable of a maximum data throughput rate up to 460.8 kbps
  • Each port includes integrated 64-byte FIFO buffer (16654 UART) with software configurable Rx/Tx triggers, 4x clock, and on-board flow control to guarantee errorless data transmission even at top speed
  • All four ports share one PCI bus IRQ — even when accessed simultaneously, saving valuable resources for other expansion cards
  • Compatible with RS-232 serial peripherals including 56K and ISDN modems,PDAs, digital cameras, bar-code scanners, and UPSes
  • Includes “SuperLogics Com Port Redirect” and “SuperLogics Modem Speed Set” utility software for easy configuration of 230.4 kbps capable external modems
  • Ideal for connecting four modems on a single card in SOHO and telecommuting server applications
  • Easy Plug and Play installation — automatically selects next available IRQ and I/O addresses
  • Compliant with PCI Specification 2.1
  • CE
  • SuperLogics Lifetime Warranty

Connectors

  • Four DB-9 male RS-232

System Requirements

  • PCI host slot
  • Supports Linux/DOS/Windows 3.1/Windows 95/98/NT 4.0/Me/2000/XP/XP x64/2003/2003 x64/Vista Operating Systems
