SY-PEX-4S

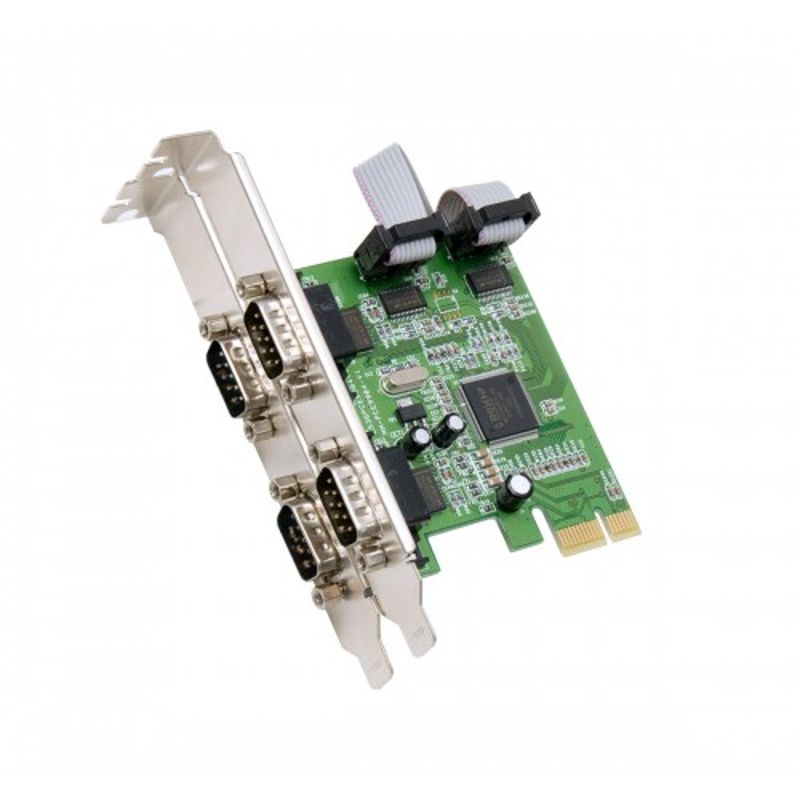

SY-PEX-4S PCI-Express RS-232 Serial 4-Port Card, Moschip 9845 Chipset; 4x 16C450/550/Extended 550 compatible UARTs, Supports RS232, RS485 & RS422 modes

SY-PEX-4S  PCI-Express RS-232 Serial 4-Port Card, Moschip 9845 Chipset; 4x 16C450/550/Extended 550 compatible UARTs, Supports RS232, RS485 & RS422 modes
  • 4 Serial Ports

Based on the popular Moschip 9904 chipset works with Windows 7. Ideal for connecting to modem, cellular phone, PDA, ISDN terminal adapter, satellite receiver, graphic tablet, bar code scanner, label printer, automated teller machine, GPS, finger print identification, Infra-Red transceiver, packet radio, magnetic card reader, Pos devices, multi-modem dail-up server, digital camera, automation interface, and card reader. Keeps old Serial devices alive

Related Products
Technical Specifications

PCI Express: Fully Compliant with PCI Express Base Specification, Revision 1.0a PCIe Multi Function Peripheral Controller with x1 Lane Interface Support for D1, D2, D3hot and D3cold Supports PCIe Power Management

  • PCI Express
    • Single-lane (X1) PCI Express End-point Controller with integrated PHY
    • Compliant with PCI Express Base Specification, Revision 1.1
    • Compliant with PCI Express card specifications
    • Supports four PCI Express functions
    • Supports auto completion of configuration requests
    • Supports built in flow control
    • Supports Message TLP (Error) generation
    • Supports integrated time out handling of Non-posted request
    • Supports both legacy and MSI Interrupt
    • Supports PCIe Power Management
  • Serial Port
    • Four 16C450 / 550 / Extended 550 / 650 / Enhanced Mode compatible UARTs
    • Supports RS232, RS422 & RS485 modes
    • Bi-directional speeds from 50 bps to 16 Mbps per port
    • Full Serial Modem Control
    • Supports Hardware, Software Flow Control
    • Supports 5, 6, 7, 8 bit Serial format
    • Supports Even, Odd, None, Space and Mark parity
    • Supports Custom baud rate by programming internal PLL or external clock
    • Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
    • Supports remote wakeup and power management features
    • Serial Port transceiver shutdown support
    • Supports Slow IrDA mode (up to 115200bps) on all Serial Ports
    • Operating Temperature : 0 to +70°C
