SD-PEX20080

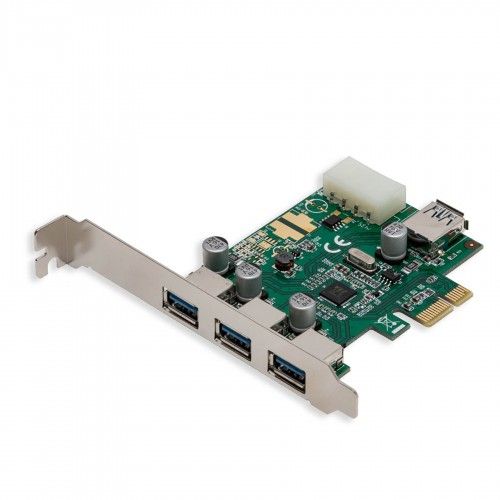

USB 3.0 PCI Card - 4 Ports, Full and Low Profile

USB 3.0 PCI Card - 4 Ports, Full and Low Profile
  • SD-PEX20080
  • 3 External USB 3.0 Ports
  • 1 Internal USB 3.0 Port
  • 1 Molex 4-pin Connector USB 3.0 Header
  • Built-In HDD Power Connector provides extra +5V to ports
Related Products
Technical Specifications
  • Based on VLI VL80x USB 3.0 Host Controller IC
  • Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 0.96
  • Compliant with Battery Charging Specification Revision 1.1
  • Compliant with PCI Express Base Specification 2.0
  • PCI-Express Specifications
    • PCI-Express 2.0 1-Lane (x1) Interface with Data Transfer Rate up to 5Gbps
    • Backward Compatible to PCI-Express 1.0a with Data Transfer Rate up to 2.5Gbps
    • Supports Standard and Low-profile Desktop Computer
    • Internal HDD Power Connector for Supplying Extra +5V Power to the USB Ports
    • Internal HDD Power Connector LED Indicator: Lights up when USB Bus Power is Supplied from the HDD Power Connector Connected to the Power Supply Unit (PSU)
  • USB Specifications:
    • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
    • Provides USB 3.0 Super-Speed (5Gbps) Host Port
    • Backward Compatible with USB 2.0 High-Speed (480Mbps)
    • Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface Supports All USB Compliant Data Transfer Types (Control/Bluk/Interrupt /Isochronous)
    • Supports All USB Compliant Peripherals (e.g. Keyboard, Mouse, Monitor, Joystick, etc.)
    • Full Support of Real Time Dynamic Insertion and Removal of USB Devices
