SD-PEX20137

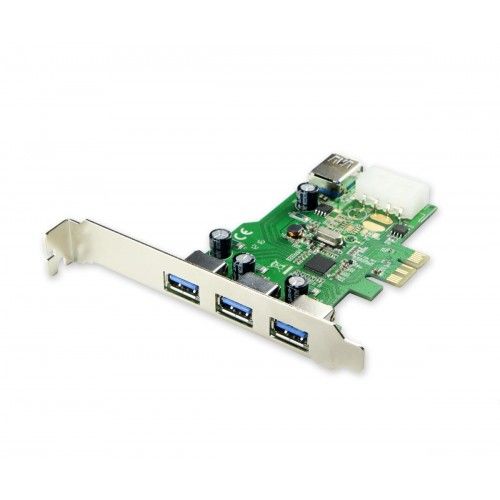

USB 3.0 PCIe Card - 4 Ports, includes Low Profile Bracket - Windows 8 Compatible

USB 3.0 PCIe Card - 4 Ports, includes Low Profile Bracket - Windows 8 Compatible
  • SD-PEX20137
  • 3 External USB 3.0 Ports
  • 1 Internal USB 3.0 Port
  • 1 Molex Power Feed Connector
  • Internal HDD Power Connector for Supplying +5V Power to the USB Ports
Related Products
Technical Specifications
  • Ports: 3 External USB 3.0 Ports, 1 Internal USB 3.0 Port, 1 Molex Power Feed Connector
  • Based on Renesas USB 3.0 Host Controller IC
  • Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 1.0
  • Supports Standard and Low-profile Desktop Computer
  • PCI-Express Interface:
    • PCI-Express 2.0 1-Lane (x1) Interface
    • Compliant with PCI Express Base Specification 2.0
    • Supports PCI-Bus Power Management Interface Specification Revision 1.2
  • USB Interface
    • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
    • USB 3.0 Super-Speed (5Gbps) Host Ports
    • Backward Compatible with USB 2.0 High-Speed (480Mbps)
    • Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface
    • Supports All USB Compliant Data Transfer Types (Control/Bluk/Interrupt /Isochronous)
    • Supports All USB Compliant Peripherals (e.g. Keyboard, Mouse, Monitor, Joystick, Etc.)
    • Full Support of Real Time Dynamic Insertion and Removal of USB Devices
    • Internal HDD Power Connector for Supplying +5V Power to the USB Ports
      • Notes: Must connect 4pin Molex power feed to support max occupation of USB 3.0 ports and USB 3.0 functionality.
