SL-USB3-PEX-3-SI-LP This item is no longer available.

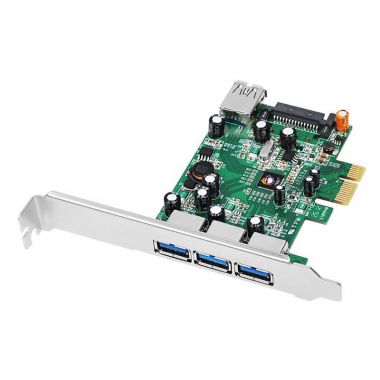

4-Port USB 3.0 PCI Express Card - 3 External and 1 Internal Ports, low profile supported

A newer version of this item is available: SL-USB3-PCIEx1-4P

Features

Features
Add four (3 external & 1 internal) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC

Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcam, video surveillance cameras, digital video cameras, multi-channel audio and more

Supports data rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices

Dual profile design to work with full height and low profile chassis with included brackets

Supports per port over-current protection

Details

Type
PCI Express to USB Card
External USB Ports
3 x 9-Pin, USB 3.0, Type A, external
Internal USB Ports
1 x 9-Pin, USB 3.0, Type A, internal
Internal Ports
1 x 15-Pin, SATA power, male, internal
Standard
USB 3.0
Operating Systems Supported
Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2
Specifications
Chip: Renesas uPD720201

Compliant with Universal Serial Bus 3.0 Specification, Revision 1.0

Compliant with PCI Express Base Specification, Revision 2.0

Supports ultra-fast data transfer rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices

Dual profile design to work with full height and low profile chassis with included brackets

Supports per port over-current protection

Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 176 degrees F
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 10% to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS
