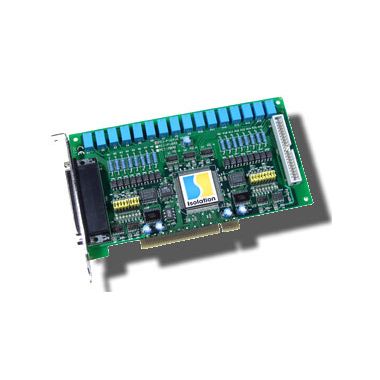

PCI-P16R16

16 Channel Relay & 16 Channel Isolated Digital Input PCI Board

  • 16 Relay output channels
  • 16 Optical isolated digital input channels
  • DC signal input with filter or Without filter
  • AC Signal input with filter
  • Optional Cable and UIO-37F-1 Terminal Panel for easy wiring for voltages

Protocol: Two-wire RS-485, differential (D+, D-)

Speed: Internal "Self Tuner", auto switching baud rate, 1200 bps to 115.2 kbps

Max. Modules In Network:  Without Repeater: 256  With 8010 Repeater: 2,048

Isolation Voltage: 3000VDC

Isolation Site:  8520: RS-232  8520R: RS-485

Repeater Request: 4,000 feet or over 256 modules

Power Requirements: +10V to +30VDC

Power Consumption: 1.2W max
