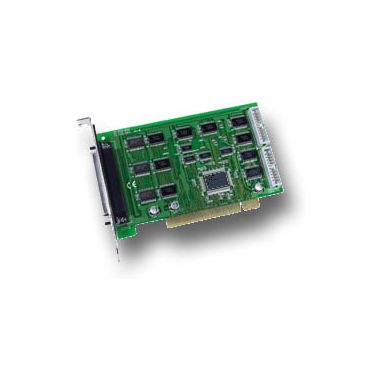

PIO-D24

24 Channel Digital TTL I/O PCI Board

  • PCI bus
  • Up to 56/24(PIO-D56/PIO-D24) channels of digital I/O
  • All I/O lines buffered on the board
  • Eight-bit groups independently selectable for I/O on 24-bit port
  • Input / Output programmable I/O ports under software control
  • Double side SMD, short card.
  • Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
  • 4 interrupt sources: PC0,PC1,PC2,PC3
  • High driving capability
  • Automatically detected by windows 95/98/NT/2000/XP
  • No base address or IRQ switches to set
  • Optional Cable and UIO-37F-1 Terminal Panel or Cable and DN-20 Terminal Panel for easy wiring for voltages
  • Included Software:
    • DOS Lib and TC/BC/MSC sample program (with source codes)
    • DLL and OCX SDK for Windows 95/98/NT/2K and for 32-bit versions of XP/2003/Vista/Windows 7
    • VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes
    • LabVIEW toolkit for Windows
    • Driver for Linux and DasyLab
  • All inputs are TTL compatible
  • Logic high voltage : 2.4V (Min.)
  • Logic low voltage : 0.8V (Max.)
  • All outputs are TTL compatible

OPTO-22 output (CON3)

  • Sink current : 64mA (Max.)
  • Source current : 32mA(Max.)

16-channel output (CON1)

  • Sink current : 8mA (Max.)
  • Source current : 0.4mA(Max.)

Environmental

  • Operating Temperature: 0 to 60 deg/C
  • Storage Temperature: -20 to 80 deg /C
  • Humidity: 0 to 90% non-condensing
  • Dimensions: 143mm X 105mm
  • Power Consumption: +5V @ 530mA/420mA(PIO-D56/PIO-D24)



Pin Assignment CON3
CON 3

Options

  • UIO-37F-2
  • CA-3710

Software

  • Included Software:
    • DOS Lib and TC/BC/MSC sample program (with source codes)
    • DLL and OCX SDK for Windows 95/98/NT/2K and for 32-bit versions of XP/2003/Vista/Windows 7
    • VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes
    • LabVIEW toolkit for Windows
    • Driver for Linux and DasyLab
