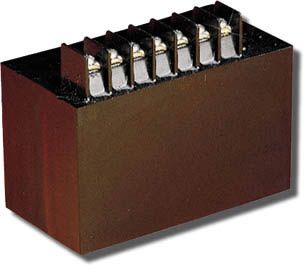

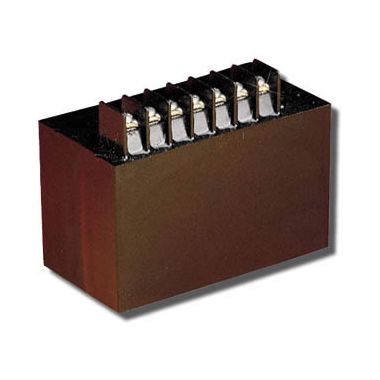

PST-4130

Adjsutable 4 to 15 Vdc regulated power supply for transducers and bridges, up to 150mA Current, 115 vac power

  • Adjustable 4 to 15 Vdc Output
  • Up to 150 mA Current
  • Well Suited for 120 ohm and 350 ohm Strain Gages
  • Can Power Multiple Pressure Transducers or Load Cells
  • Screw Terminal Connections

Input: 115 Vac ±10% 50 to 60 Hz
Output Voltage: Adjustable 4 to 15 Vdc
Output Current: 150 mA max.
Line and Load Regulation: 0.005%
Noise: 0.5 mV rms
Operating Temperature: 0 to 70°C (32 to 158°F)
Temperature Effect: 50 ppm/°C
Storage Temperature: -25 to 85°C (-13 to 185°F)
Line Isolation: 1500 Vdc
Weight: 18 oz (510 grams)
