PWR-ACDC-12V-60W-SPA

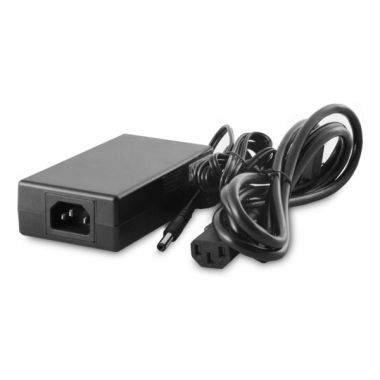

External AC/DC 60W Power Brick

  • Features:
    • High efficiency and reliability
    • Compatible with European Union Directive 2011/65/EU (Restriction on Hazardous Substances)
    • Low noise and ripple
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
    • Approved by CUL/UL60950-1 2nd TUV EN60950-1 2nd, CB60950-1 2nd, FCC, EM
  • Input:
    • Input Range: 90 ~ 264Vac (RMS), Full Range Input
    • Frequency: 47 ~ 63Hz
    • Input Current: Max 1.3A (RMS) @ 115Vac, 1.0A (RMS) @ 230Vac
    • Inrush Current: No damage
  • Output:
    • Total Watts: 60W
    • Output Voltage: 12V
    • Output Current: 5A
    • Load Reg: ± 5%
    • Ripple & Noise: 120mV P-P
    • Connecter Type: Barrel 90°
    • Connecter: 2.5 x 5.5 x 12.0
    • Dc Cable Length: 1500 mm
  • Humidity: 90% on operating, 90% on storage
  • Dielectric Withstand: Primary frame ground 1800V AC for 3 second
  • Average Efficiency: Efficiency Level VI & ErP Teir 2
  • No Load Power Consumption: Less than 0.1W
  • Turn-on Delay Time: Less than 3s
  • Hold-up Time: 8 ms minimum at 115Vac input and max output loading
  • Leakage Current: Less than 250uA at 264Vac, 60Hz
