SL-RACK-ST-RK2236BKF

22U 36in Knock-Down Server Rack Cabinet with Casters

Required LTL Feight Shipping. Please contact sales for a shipping quote.

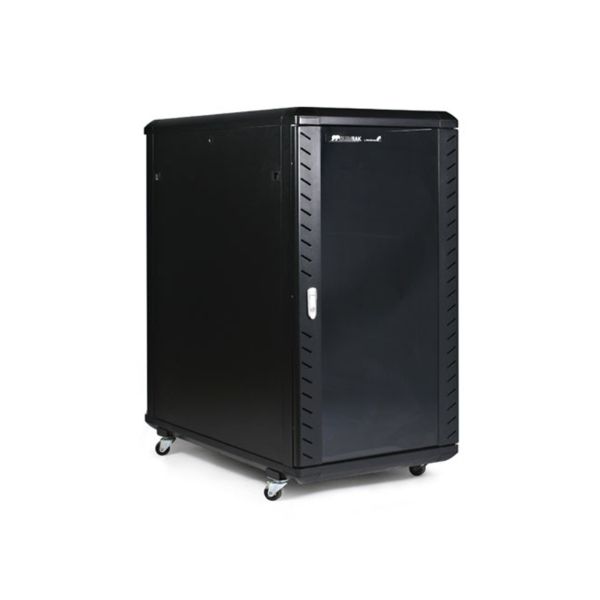

  • Increase visibility and security with a glass door
  • Easy equipment installation
  • Keep your equipment at an optimal temperature with passive cooling

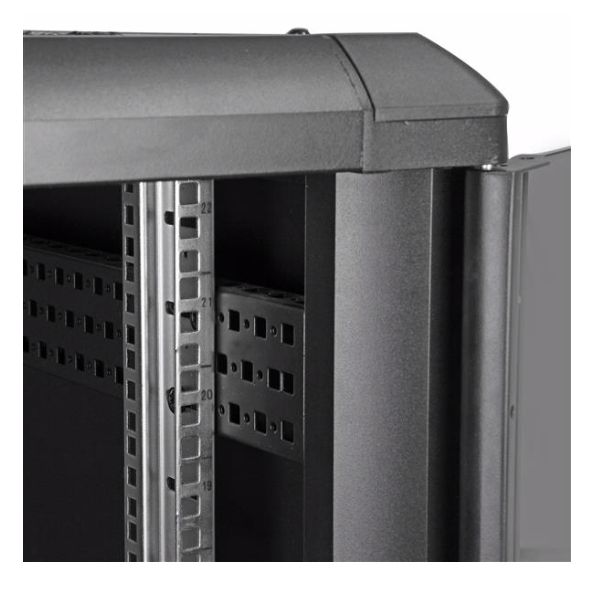

  • Mount equipment at the top of the rack with a ceiling panel that features square venting holes that are cage nut compatible
  • Easy assembly at the point of installation for rapid deployment
  • Front and side mounting holes at accommodate different types of equipment

HARDWARE

Frame Type                              Enclosed Cabinet
Front Door                               Construction Steel with Glass Window
Front Door Features               Secure Key Lock with Removable Front Door
Industry Standards                 EIA/ECA-310-E
Mounting Hole Types             Square (For Cage Nut)
Mounting Rail Profile             G-Shape
Rack Type                               4-Post
Rear Door Construction        Steel Mesh
Side Panel Construction       Steel
Side Panel Features              Secure Key Lock

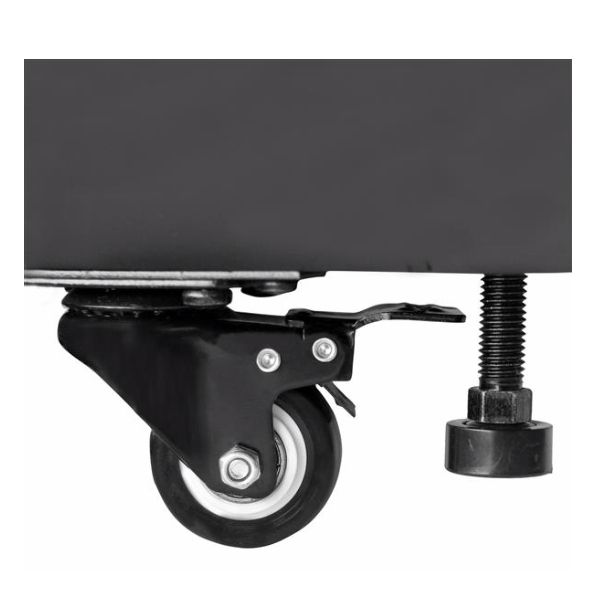

Special Features                   Casters (Included)
                                                Easy Assembly

                                                Grounding Lug(s)                                                Leveling Feet
                                                U-Markings
U Height                                 22U
Wallmountable                      No



PERFORMANCE

Weight Capacity (Stationary)    1768 lb [800 kg]


PHYSICAL CHARACTERISTICS

Color                                       Black
Rear Door Features               Secure Key Lock with Removable Back Door



PRODUCT MEASUREMENTS

Internal Depth                             39 in [99 cm]
Internal Width                             22.8 in [58 cm]
Maximum Mounting Depth        32.7 in [83 cm]
Minimum Mounting Depth         5.5 in [14 cm]
Product Height                           43.8 in [111.2 cm]
Product Height with Casters    46.6 in [118.3 cm]
Product Length                          3.3 ft [1 m]
Product Width                            23.7 in [60.3 cm]
Weight of Product                     138.3 lb [62.6 kg]



PACKAGING INFORMATION

Flat Pack (Assembly Required)   Yes

Package Height   11.5 in [29.2 cm]

Package Length   3.9 ft [1.2 m]

Package Width   3.5 ft [1.1 m]

Shipping (Package) Weight   166.4 lb [75.3 kg]



WHAT'S IN THE BOX

Included in Package

1 - Top and Bottom Panels

1 - Left and Right Panel and Frame

4 – Joints

8 - Corner Caps

4 – Casters

3 - Sets of keys

1 - Assembly screw kit (M4,M5,M6,M8)

4 - Adjustable Feet

20 - M6 Screws

20 - M6 Cage Nut

1 - Allen Wrench
