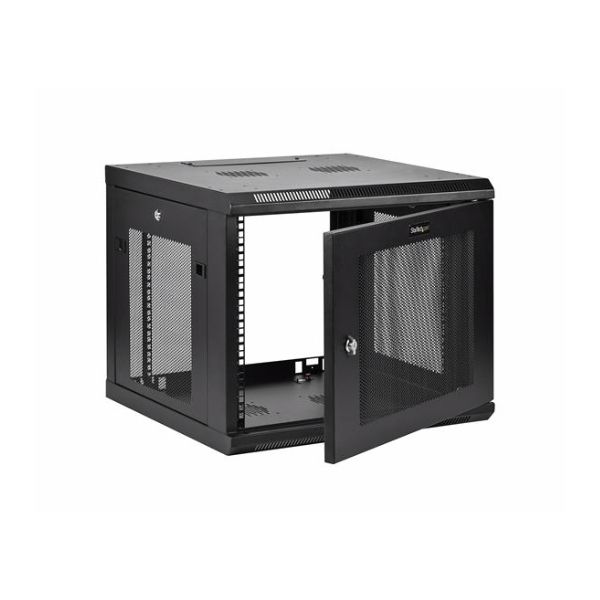

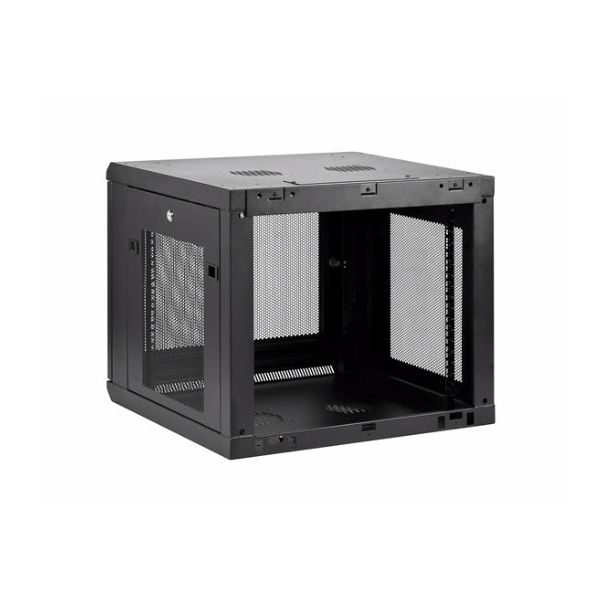

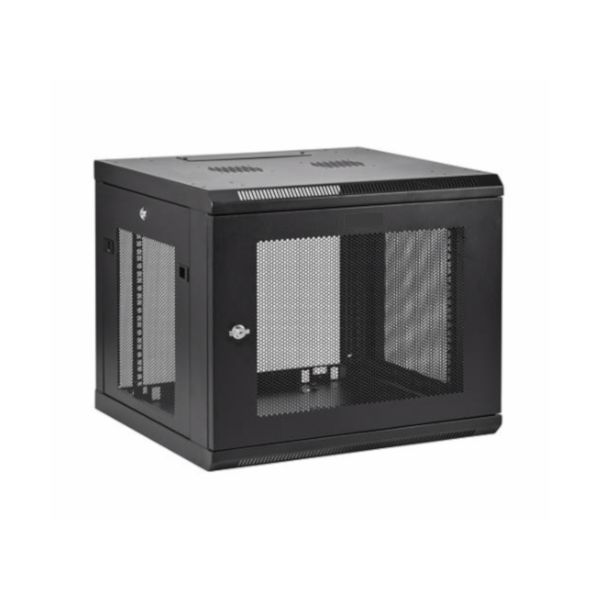

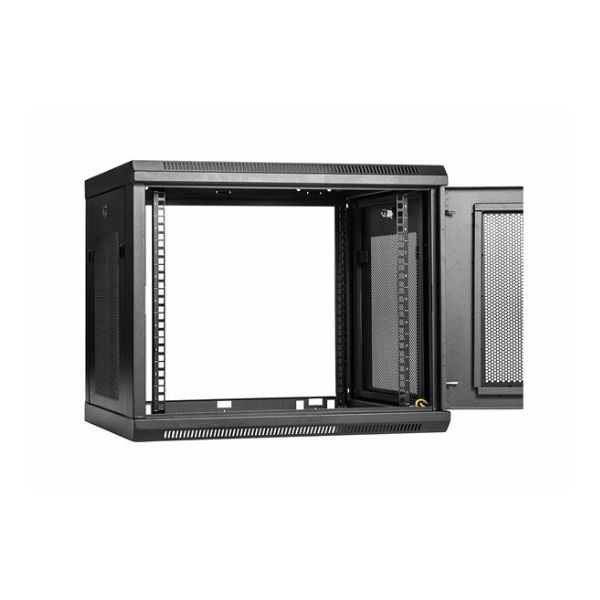

SL-RACK-ST-RK920WALM

9U Wall-Mount Server Rack Cabinet - Up to 18.9 in. Deep

  • Save space by wall-mounting your servers or networking equipment
  • Easily install your equipment with mounting hardware included
  • Secure your mission-critical equipment with a locked enclosure
  • Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
  • 1U shelf and hook-and-loop cable tie included

HARDWARE

Fan Options                                 Four Optional Fans: 120 mm

Frame Type                                  Enclosed Cabinet

Front Door Construction            Steel Mesh

Front Door Features                   Secure Key Lock with Reversible and Removable Front Door

Industry Standards                     EIA/ECA-310-E

Mounting Hole Types                  Square (For Cage Nut)

                                                     Threaded Hole

Mounting Rail Profile                  L-Shape

Rack Type                                    4-Post

Side Panel Construction            Steel Mesh

Side Panel Features                   Secure Key Lock with Removable Side Panels

Special Features                         Adjustable Mounting Rails

                                                     Built-in Cable Management

                                                     Grounding Lug(s)

                                                     Ships Fully Assembled

                                                     U-Markings

                                                     Wall-Mountable with Rear Access Hinges

U Height                                       9U

Wallmountable                            Yes



 PERFORMANCE

 Weight Capacity                           198.9 lb [90 kg]



 SPECIAL NOTES / REQUIREMENTS

 Note Includes                                CAB SHELFV1U and 2 pairs of keys



PHYSICAL CHARACTERISTICS

 Color                                               Black



PRODUCT MEASUREMENTS

Internal Depth                                21.5 in [54.7 cm]

Internal Width                                23.7 in [60.2 cm]

Maximum Mounting Depth           18.9 in [48 cm]

Minimum Mounting Depth            2.4 in [6 cm]

Product Height                              19.9 in [50.5 cm]

Product Length                             21.7 in [55.1 cm]

Product Width                               23.7 in [60.2 cm]

Weight of Product                        46.4 lb [21 kg]



PACKAGING INFORMATION

Flat Pack (Assembly Required)  No

Package Height  23.2 in [59 cm]

Package Length  25 in [63.5 cm]

Package Width  26.6 in [67.5 cm]

Shipping (Package) Weight  48.6 lb [22 kg]



WHAT'S IN THE BOX

Included in Package

1 - wall-mount enclosure

1 - 1U shelf

1 - roll of hook-and-loop fastener

36 - 12-24 cage nuts

36 - 12-24 screws

2 - door keys

2 - side panel keys

1 - instruction manual
