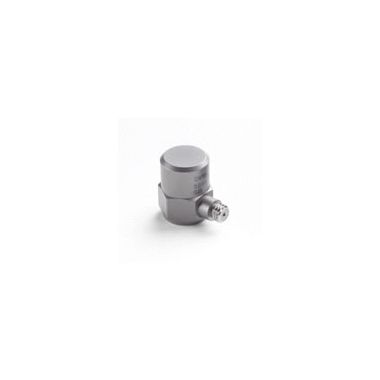

Accel-IEPE-1X-3055B1 This item is no longer available.

500g range, 10 mV/g, 10-32 side connector, 10-32 mounting hole, general purpose

A newer version of this item is available: Accel-IEPE-1X-3055D1
  • General Purpose Accelerometer



  • Integrated electronic piezoelectric (IEPE) Type Sensor


SPECIFICATION
VALUE
UNITS
PHYSICAL

WEIGHT
10
GRAMS
SIZE (HEX x HEIGHT)
.50 x .67
INCHES
MOUNTING PROVISION
10-32 x .150 DEEP TAPPED HOLE
CONNECTOR, RADIALLY MOUNTED
10-32
COAXIAL
MATERIAL, BASE, CAP & CONNECTOR
TITANIUM

SEISMIC ELEMENT TYPE
CERAMIC, PLANAR SHEAR
PERFORMANCE

SENSITIVITY, +/- 5% [1]
10
mV/G
RANGE F.S. FOR +/- 5 VOLTS OUTPUT
+/- 500
G

FREQUENCY RESPONCE

1 to 10,000
Hz
RESONANT FREQUENCY, NOM.
32
kHz
EQUIV. ELECTRICAL NOISE (RESOLUTION)
.007
G, RMS
LINEARITY [2]
+/- 2
% F.S. MAX
TRANSVERSE SENSTIVITY, MAX.
5
%
ENVIRONMENTAL

MAXIMUM VIBRATION
+/- 600
G's RMS
MAXIMUM SHOCK
3000
G's PEAK
TEMPERATURE RANGE
-60 to +250
°F
THERMAL COEFFICEIENT OF SENSIVITY
.06
%/°F
SEAL, HERMETIC
GLASS-TO-METAL AND TIG WELDED
ELECTRICAL
