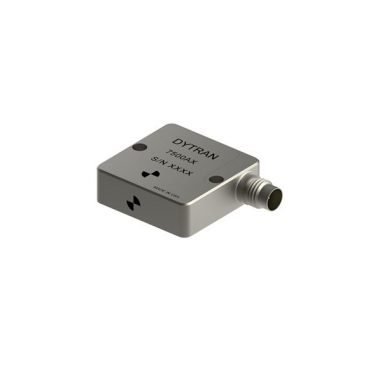

Accel-DC-1X-7500A7

200g range, 10 mV/g, DC variable capacitance, high temperature, low noise

200g range, 10 mV/g, DC variable capacitance, high temperature, low noise
  • Accel-DC-1X-7500A7
  • Accel-DC-1X-7500A7
  • 10 mV/g sensitivity
  • 200g range
  • 0 to 2,500 Hz frequency range (3dB)
  • 4-pin 1/4-28 radial connector
  • Mounting via two #4 or M3 screws
  • 13 grams
  • Titanium
  • Hermetic
  • Ultra low noise
  • Case isolated
  • Differential output
  • Operates from +9 to +32 VDC
  • MEMS technology
  • DC response
Related Products
Technical Specifications
  • 10 mV/g sensitivity
  • 200g range
  • 0 to 2,500 Hz frequency range (3dB)
  • 4-pin 1/4-28 radial connector
  • Mounting via two #4 or M3 screws
  • 13 grams
  • Titanium
  • Hermetic
  • Ultra low noise
  • Case isolated
  • Differential output
  • Operates from +9 to +32 VDC
  • MEMS technology
  • DC response
