Impulse-IEPE-5802A This item is no longer available.
5000 LbF range, 1 mV/LbF, sledge hammer, 3 Lb. head, includes 4 impact tips

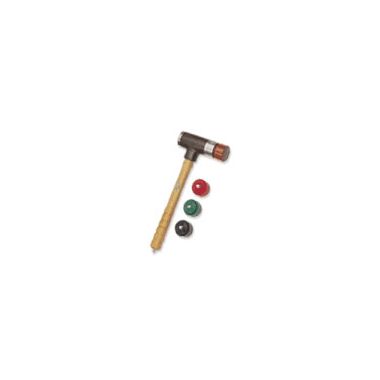

- Impulse Hammer with force sensor and tips
- Integrated electronic piezoelectric (IEPE) Type Sensor
|
SPECIFICATION
|
VALUE
|
UNITS
|
|
RANGE, NOMINAL FOR +5 VOLTS OUT.
|
5000
|
LBS
|
|
SENSITIVITY, NOM.
|
1.0
|
mV/LB
|
|
MAXIMUM INPUT
|
10,000
|
LBS
|
|
STIFFNESS, FORCE SENSOR
|
42
|
LB/m IN
|
|
RESONANT FREQUENCY, SENSOR WITH NO IMPACT CAP
|
+5
|
VOLTS
|
|
LINEARITY
|
+5
|
VOLTS
|
|
F.S. OUTPUT
|
100
|
OHMS
|
|
OUTPUT IMPEDANCE, NOM
|
+11
|
VDC
|
|
VOLTAGE BIAS, INTEGRAL AMPLIFIER
|
2 to 20
|
mA
|
|
INPUT CURRENT RANGE [1]
|
+18 to +30
|
VOLTS DC
|
|
COMPLIANCE (SUPPLY) VOLTAGE RANGE [1]
|
200
|
Lb.
|
|
OUTPUT IMPEDANCE
|
100
|
OHMS
|
|
INPUT CURRENT RANGE [1]
|
2 to 20
|
mA
|
|
COMPLIANCE (SUPPLY) VOLTAGE [1]
|
+18 to +30
|
VDC
|
| FORCE SENSOR MATERIAL |
17-4 PH
|
ST. STEEL
|
| HAMMER HEAD MATERIAL |
STEEL CAST
|
|
| HANDLE MATERIAL |
WOOD
|
|
| IMPACT TIPS, ALL MATERIAL |
POLYURETHANE
|
|
|
CONNECTOR, AT END OF HANDLE
|
BNC
|
JACK
|
|
WEIGHT, HEAD WITH FORCE SENSOR
|
3
|
POUNDS
|
ACCESSORIES SUPPLIED: (1) 6251T IMPACT TIP, TOUGH, RED
(1) 6251S IMPACT TIP, SOFT, BROWN
ACCESSORIES AVAILABLE: 6251H IMPACT TIP, HARD, BLACK
6251M IMPACT TIP, MEDIUM, GREEN
[1] Supply power from constant current source power sources only. Do not use with power supply without current
limiting, 20 mA maximum. To do so will d
