SI-PEX15042

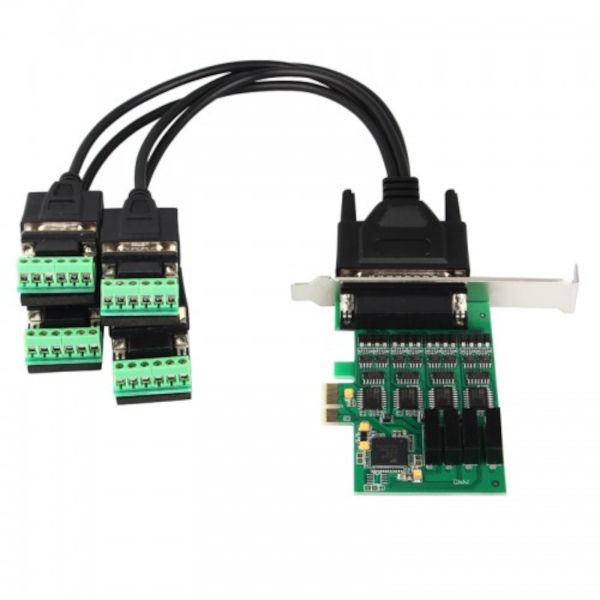

4 Port DB9 RS-422/485 Serial PCI-Express 2.0 x1 Card, Single Slot with Fan Out Serial Cable - Full Height and Low Profile Compatible
Exar Chipset: XR17V354
PCIe 2.0 Gen 1 compliant
x1 Link, dual simplex, 2.5Gbps in each direction
Supports x1, x2, x4, x8, x16 PCIe Bus connector keys
RS485 signals:DATA+ (B) ?DATA- (A) ?GND
RS422 signals: ?T/R+ ?T/R- ?RXD+ ?RXD- ?GND
600W surge protection, 15KV ESD protection for serial ports
- Exar Chipset: XR17V354
PCIe 2.0 Gen 1 compliant
x1 Link, dual simplex, 2.5Gbps in each direction
Supports x1, x2, x4, x8, x16 PCIe Bus connector keys
RS485 signals:DATA+ (B) ?DATA- (A) ?GND
RS422 signals: ?T/R+ ?T/R- ?RXD+ ?RXD- ?GND
600W surge protection, 15KV ESD protection for serial ports
