SL-1U-525SPA-GC This item is no longer available.

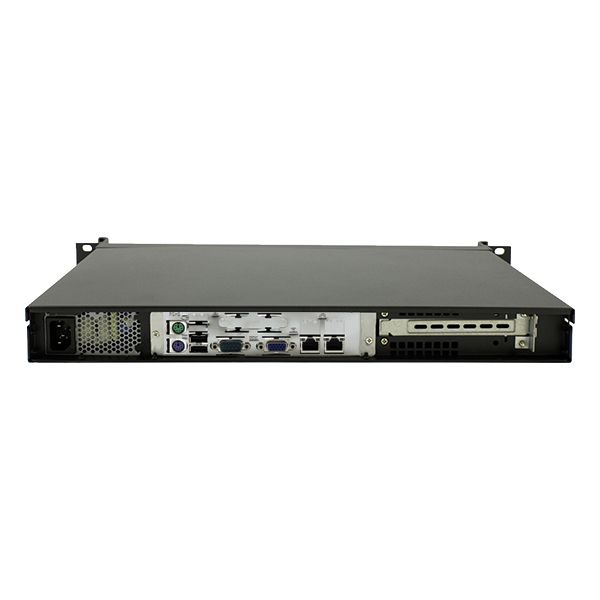

1U Rack Mount Industrial PC - Rackmount featuring Intel ICH9-R Chipset, Intel Atom D525 Processor (Dual Core, 1.80GHz), 2x GB (10/100/1000) LAN, 2x Serial, Up to 4GB RAM, 7x USB 2.0 Ports ( 2 Front, 2 Rear, 3 Internal Headers ), .
Type:
- 1U Rack Mount Industrial PC
- Depth: 11", Max Card Depth: 6.5 inches"
Motherboard:
- Featuring Intel ICH9-R Chipset and Intel Atom D525 Processor (Dual Core, 1.80GHz)
- LAN: 2x Ports (GB (10/100/1000))
- RAID: 0,1
- Video: VGA
- Audio: No Onboard Audio
- Ports:
7x USB 2.0 Ports ( 2 Front, 2 Rear, 3 Internal Headers )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 55ºC (32ºF to 131ºF)
Also Included:
- Memory: 4GB DDR3 1333MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: 150W 1U Flex ATX Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Atom D525 Processor (Dual Core, 1.80GHz)
- Chipset
- Chipset: Intel ICH9-R Chipset
- Memory
- Memory Type: DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 4GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: Intel GMA 3150
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® 82574L
- Second LAN Chipset: Intel® 82574L
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 5
- USB 2.0 Ports (Type A): 1
- Serial (via Headers): 1
- FAN Connectors: 2
- Chassis Intrusion
- Environmental
- Operating Temperature: 0ºC to 55ºC (32ºF to 131ºF )
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows XP Pro (32-bit)
- Windows Embedded 09
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Compliance of Component
- RoHS
- Other Features
- Other Features:
- 1 (x4) PCI-E 2.0 (in x16) slot
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 6.5 inches"
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 11"
- Depth (Inches): 11
- Width: 19.10"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 15"
- Shipping Box - Height: 5"
- Shipping Weight: 15lbs
- Other Features
- Chassis Warranty: 1 Year
