SL-1U-AH810M-IR1

Name: SL-1U-AH810M-IR1
SKU: SL-1U-AH810M-IR1
Price: 1685.00 USD

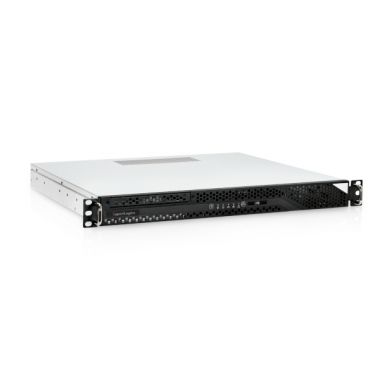

1U Rack Mount Server - Rackmount featuring Intel H810 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 1x 1GbE (10/100/1000) LAN, WIFI,1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 4 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Front ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), Power Supply 450W 80+ Platinum Flex Power Supply.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Server
Depth: 15.48"

Motherboard:

Featuring Intel H810 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
Full Height Slots:
LAN: 1x Ports (1GbE (10/100/1000))
WiFi: Wi-Fi 6 + BT 5.2
Video: 1x DisplayPort + HDMI
Audio: Realtek® Audio CODEC
Ports:
6x USB 2.0 Ports ( 4 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Front )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: Intel Core Ultra 5 225 Processor - 10 Cores (6P + 4E), 20MB Cache, 121W (PL2)
Memory: 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s
Power Supply: 450W 80+ Platinum Flex Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel Core Ultra 5 225 Processor - 10 Cores (6P + 4E), 20MB Cache, 121W (PL2) show $355.00

Intel Core Ultra 7 265 Processor - 20 Cores (8P + 12E), 30MB Cache, 182W (PL2) show $664.00

Intel Core Ultra 9 285 Processor - 24 Cores (8P + 16E), 36MB Cache, 250W (PL2) show $1,037.00

Memory

x 8GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $247.00

x 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $507.00

x 32GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $995.00

x 64GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $1,904.00

x 32GB DDR5 5600MHz RAM show $1,073.00

x 32GB (2 x 16GB) DDR5 6000MHz SDRAM Memory KitPart ETA Varies – Ask Sales show $1,343.00

x 64GB (2 x 32GB) DDR5 6000MHz SDRAM Memory Kit show $2,227.00

CD/DVD/OpticalDrive

None show Included

Slim SATA DVDRW Drive show $62.00

External USB DVD ReWriteable Drive show $57.00

Additional Hard Drives

M.2 NVMe SSD

CASE-IR2 3rd and 4th 2.5" drive installation kit. show $21.00 each

500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s show $183.00 each

1TB PCIe 4.0 NVMe SSD M.2 Read/write speeds up to 7100MB/s / 6700MB/s show $319.00 each

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $399.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $797.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $1,370.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $348.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $565.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $1,099.00 each

1TB PCIe 5.0 NVMe SSD M.2 14,700/13,300MB/s - Samsung 9100 PRO show $362.00 each

2TB PCIe 5.0 NVMe SSD M.2 14,700/13,400MB/s - Samsung 9100 PRO show $580.00 each

4TB PCIe 5.0 NVMe SSD M.2 14,800/13,400MB/s - Samsung 9100 PRO show $1,660.00 each

2.5" SATA SSD

1TB 2.5" Internal SSD, SATA 3.0 6.0Gb/s, TLC NAND Flash ,up to 535/515 MB/s read/write speeds, MTBF 2, show $301.00 each

2TB 2.5" SATA SSD 560/510MB/s 6Gb/s Premium Samsung, Micron or Kingston Unit show $370.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $210.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $332.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $446.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $725.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $1,924.00 each

3.5" SATA HDD

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $617.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E10 Series Part ETA Varies – Ask Sales show $587.00 each

12.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $936.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $1,095.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $1,087.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series Part ETA Varies – Ask Sales show $1,400.00 each

20TB SATA 6Gb/s 7200RPM 256MB 3.5" - Seagate Skyhawk AI Series show $1,159.00 each

24TB Seagate 7200 RPM 512MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive Bare Drive show $1,450.00 each

26.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $2,016.00 each

26TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD Purple Pro for Surveillance Storage show $1,721.00 each

28TB SATA 6Gb/s 7200RPM 512MB 3.5" - Seagate IronWolf Pro Series show $2,349.00 each

32TB SATA 6Gb/s 7200RPM 512MB Cache 3.5" HDD - Seagate Skyhawk AI Series show $1,960.00 each

Cable

TPM 2.0 Module - TPM IC: Nuvoton NPCT750. Pin Dimension: 14-1pin show $31.00 each

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $8.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $16.00 each

3 ft HDMI® to DVI-D Cable - M/M show $13.00 each

6 ft HDMI® to DVI-D Cable - M/M show $15.00 each

DisplayPort to DVI-D Video Adapter Converter *DVI-D (digital only, will not work with a DVI-I to VGA show $15.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

DisplayPort to VGA Video Adapter Converter show $36.00 each

Riser Card

Optional Riser Card Not Selected - Riser Required when selecting optional plug-in board(s) show $0.00

1U PCIe x16 riser Set - RA102, RA100 GEN3 -SLOT 7 show $45.00

Plug-In Boards

M.2 NVMe Adapter

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

COM Cards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

4 Port DB9 RS-422/485 Serial PCI-Express 2.0 x1 Card, Single Slot with Fan Out Serial Cable - Full Hei show $99.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel Printer (LPT1)

1 Port DB25 Parallel Printer (LPT1) PCI-Express 2.0 x1 Card show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $89.00 each

USB Cards

4-Port USB 3.0 Gen 1 PCIe Card - PCIe x1, Full-Height Only VIA Chipset - Windows 11/10/8.1/8/7/Vista Part ETA Varies – Ask Sales show $28.00 each

Firewire PCIe

Add-In Graphic Card

None show Included

Professional Graphics Cards

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $312.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $754.00

Networking

RJ45

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $39.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $110.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $160.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $266.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $218.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $235.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $939.00 each

SFP28

Intel Ethernet Network Adapter E810-XXVDA2 - network adapter - PCIe 4.0 x8 - 10/25 Gigabit SFP28 x 2.. show $391.00 each

QSFP28

PCI x16 Dual Port 100GB Intel Ethernet Network Adapter E810-CQDA2 - network adapter - PCIe 4.0 x16 - Q show $742.00 each

Build Request

# Certificate of Conformity must be included with the shipment. show $0.00 each

Operating System

None show Included

Microsoft Windows 11 Home, 64-Bit show $149.00

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For i7, XEON show $199.00

Microsoft Windows 11 IoT Enterprise 2024 LTSC 64-Bit: ATMs, Medical, Industrial - License For Socketed Intel Celeron, Pentium, i3 and i5 CPUs show $124.00

Microsoft Windows 11 Professional, 64-Bit show $199.00

Microsoft Windows 11 Pro For Workstation, 64-Bit show $389.00

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $1,069.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,631.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,218.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,272.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,780.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,177.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,738.00

Keyboard/Mouse

Keyboard and Mouse Combo

USB Keyboard/Mouse - Black/Silver show $27.00 each

Wireless Keyboard/Mouse show $53.00 each

Medical Grade Keyboard

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $129.00 each

Medical Grade Mouse

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $102.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $143.00 each

Rackmount Keyboard Drawer

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $286.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $431.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $485.00 each

External Power

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $785.00 each

Mounting Option

None show Included

20" ball-bearing rails with Q/D for use with -IR2/IR1 chassis. Installable in cabinets that have depths ranging from 20 to 26.5" show $46.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset
Chipset: Intel H810 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 128GB
On Board Audio
Audio Type: Realtek® Audio CODEC
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: 1x DisplayPort + HDMI
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type and IPMI: 1GbE (10/100/1000)
LAN Chipset: Intel® GbE LAN chip
Wireless LAN: Wi-Fi 6 + BT 5.2
Drive Interface
SATA III Ports (6GB): 4
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

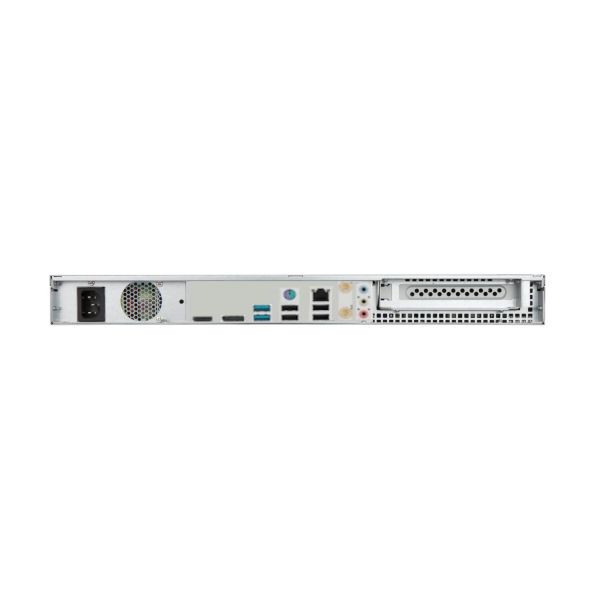

Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 2 Type A Ports (on IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 3
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 95%
Low Humidity: 5%
Operating System Support
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
Expansion Slots

Intel^® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel^® H810 Chipset
1 x PCIe 4.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 1U Rackmount
Color: Black & Silver
Material: SGCC
Material Thickness: 1mm
Motherboard Compatibility: ATX
Slide Rails: Optional
Expansion
Full Height Slots: 1
Internal 3.5" Bays: 1
Internal 2.5" Bays: 1
Front Ports
USB 3.2 Ports (Front): 2
Cooling System
Maximum Fan Count: 3
Included Fans: 2
Physical
Depth: 15.48"
Depth (Inches): 15.48
Width: 16.93"
Height: 1.71"
Shipping Box - Depth: 592mm
Shipping Box - Width: 518mm
Shipping Box - Height: 155mm
Shipping Weight: 11lbs
Other Features
Features:
Full height PCIe slot x 1 (via riser card and bracket)

• External: slim ODD x 1, hot-swap 2.5" x 2
• Internal: 3.5" HDD x 1
Chassis Warranty: 1 Year
Power
Built-in Chassis Power Supply: 450W 80+ Platinum Flex Power Supply
Remote Server Management:
