SL-1U-AM5-AB650-AR2

Name: SL-1U-AM5-AB650-AR2
SKU: SL-1U-AM5-AB650-AR2
Price: 2605.00 USD

1U Rack Mount Industrial PC - Rackmount featuring AMD B650, AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors, 2x 1GbE + 1GbE + IPMI LAN, 1x Serial, Up to 192GB RAM, 1x USB 2.0 Port ( 1 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 1 Front, 4 Rear ), 1x Expansion Slots, Power Supply Single PSU 315W 80-PLUS Gold.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Industrial PC
Depth: 15.50"

Motherboard:

Featuring AMD B650 and AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors processor
Full Height Slots:
1 - PCIe x16
LAN: 2x Ports (1GbE + 1GbE + IPMI)
RAID: AMD SATA 0,1. NVMe 0,1 with RAID Card.
Video: 1x VGA, 1x DisplayPort, 1x HDMI
Audio: No Onboard Audio
Ports:
1x USB 2.0 Port ( 1 Internal Headers )
5x USB 3.2 Gen 1 Ports ( 1 Front, 4 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: AMD Ryzen 5 7600X - Hexa-core (6 Core, 12 Threads) 4.70 GHz, 5.30 GHz Overclocking Speed, 32 MB L3 Cache - Socket AM5, Radeon Graphics - 105W
Memory: 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s
Power Supply: Single PSU 315W 80-PLUS Gold
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

AMD Ryzen 5 7600X - Hexa-core (6 Core, 12 Threads) 4.70 GHz, 5.30 GHz Overclocking Speed, 32 MB L3 Cache - Socket AM5, Radeon Graphics - 105W show $285.00

AMD Ryzen 5 9600X - Hexa-core (6 Core, 12 Threads) 3.90 GHz, 5.40 GHz Overclocking Speed, 32 MB L3 Cache - Socket AM5, Radeon Graphics - 65W show $345.00

AMD Ryzen 7 7700X - Octa-core (8 Core, 16 Threads) 4.50 GHz, 5.40 GHz Overclocking Speed, 32 MB L3 Cache - Socket AM5, Radeon Graphics - 105W show $585.00

AMD Ryzen 7 7800X3D - Octa-core (8 Core, 16 Threads) 4.20 GHz, 5.00 GHz Overclocking Speed, 96 MB L3 Cache - Socket AM5, Radeon Graphics - 120W show $745.00

AMD Ryzen 7 9800X3D - Octa-core (8 Core, 16 Threads) 4.70 GHz, 5.20 GHz Overclocking Speed, 96 MB L3 Cache - Socket AM5, Radeon Graphics - 120W show $764.00

AMD Ryzen 9 9900X - Dodeca-core (12 Core, 24 Threads) 4.40 GHz, 5.60 GHz Overclocking Speed, 64 MB L3 Cache - Socket AM5, Radeon Graphics - 120W show $713.00

AMD EPYC 4345P Octa-core (8 Cores, 16 Threads) 3.80 GHz, 5.50 GHz Overclocking Speed, 32 MB L3 Cache - Socket AM5 - 65W show $550.00

AMD EPYC 4545P Hexa-Decacore (16 Cores, 32 Threads) 3.00 GHz, 5.40 GHz Overclocking Speed, 64 MB L3 Cache - Socket AM5 - 65W show $996.00

Memory

x 8GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $247.00

x 16GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $507.00

x 32GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $995.00

x 64GB DDR5 5600MHz RAM Non-ECC Unbuffered DIMM show $1,904.00

x 32GB DDR5 5600MHz RAM show $1,073.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $57.00

Additional Hard Drives

M.2 NVMe SSD

500GB M.2 2280 NVMe SSD or greater 5,000/3,000MB/s show $183.00 each

1TB PCIe 4.0 NVMe SSD M.2 Read/write speeds up to 7100MB/s / 6700MB/s show $319.00 each

1TB PCIe 5.0 NVMe SSD M.2 7,150/6,300MB/s - Samsung 990 EVO Plus show $399.00 each

2TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $797.00 each

4TB PCIe 5.0 NVMe SSD M.2 7,250/6,300MB/s - Samsung 990 EVO Plus show $1,370.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $348.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $565.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $1,099.00 each

1TB PCIe 5.0 NVMe SSD M.2 14,700/13,300MB/s - Samsung 9100 PRO show $362.00 each

2TB PCIe 5.0 NVMe SSD M.2 14,700/13,400MB/s - Samsung 9100 PRO show $580.00 each

4TB PCIe 5.0 NVMe SSD M.2 14,800/13,400MB/s - Samsung 9100 PRO show $1,660.00 each

2.5" SATA SSD

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $136.00 each

1TB 2.5" Internal SSD, SATA 3.0 6.0Gb/s, TLC NAND Flash ,up to 535/515 MB/s read/write speeds, MTBF 2, show $301.00 each

2TB 2.5" SATA SSD 560/510MB/s 6Gb/s Premium Samsung, Micron or Kingston Unit show $370.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $210.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $332.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $446.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $725.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $1,924.00 each

Raid Controller

RAID Card

LSI Logic CC 05-50134-03 MegaRAID 9540-8i 8PT 12Gb s SAS 16GT s PCIe show $680.00 each

SATA RAID

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Management Module

None show Included

TPM 2.0 Module - SPI Interface, Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16 show $34.00

Plug-In Boards

Serial Ports PCI-e Controller

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

4 Port DB9 RS-422/485 Serial PCI-Express 2.0 x1 Card, Single Slot with Fan Out Serial Cable - Full Hei show $99.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel Printer (LPT1)

1 Port DB25 Parallel Printer (LPT1) PCI-Express 2.0 x1 Card show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $89.00 each

USB Cards

4-Port USB 3.0 Gen 1 PCIe Card - PCIe x1, Full-Height Only VIA Chipset - Windows 11/10/8.1/8/7/Vista Part ETA Varies – Ask Sales show $28.00 each

Firewire PCIe

Add-In Graphic Card

None show Included

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $312.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $754.00

Networking

WIFI

USB WiFi Adapter for Desktop PC, AC1300 USB 3.0 Wireless Dual Band Network Adapter with High Gain Ante show $35.00 each

PCIe x1 - WiFi 7 PCI-E Adapter with 2 external antennas, supporting 6GHz band, Bluetooth 5.4, WPA3 net show $145.00 each

RJ45

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $39.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $160.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $266.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $218.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $110.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $52.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $235.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $939.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Microsoft Windows 10 2021 Enterprise LTSC - Upgrade License (U.S. Customer Only) ESD show $377.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Microsoft Windows Server 2025 Standard - license - 16 additional cores show $1,425.00 each

Microsoft Windows Server 2025 - License - 5 USER CAL - OEM show $325.00 each

Microsoft Windows Server 2025 - License - 5 Device CAL - OEM show $246.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Microsoft Windows 10 2021 Enterprise LTSC - Upgrade License (U.S. Customer Only) ESD show $377.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Windows 10 2021 Enterprise LTSC - Upgrade License (U.S. Customer Only) ESD show $377.00 each

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $1,069.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,631.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,218.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,272.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,780.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,177.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,738.00

Keyboard/Mouse

Keyboard and Mouse Combo

USB Keyboard/Mouse - Black/Silver show $27.00 each

Wireless Keyboard/Mouse show $53.00 each

Medical Grade Keyboard

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $129.00 each

Medical Grade Mouse

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $102.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $143.00 each

Rackmount Keyboard Drawer

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $286.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $431.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $485.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $207.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $785.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outletsSpecial Order Item, Delivery approximately 10 weeks. show $117.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
Chipset
Chipset: AMD B650
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 192GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: 1x VGA, 1x DisplayPort, 1x HDMI
VGA Port Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type and IPMI: 1GbE + 1GbE + IPMI
LAN Chipset: Intel® i210
Second LAN Chipset: Intel® i210
Third LAN Chipset: Dedicated IPMI
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 3
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
2242 - 22 mm x 42 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
2242 - 22 mm x 42 mm.
2280 - 22 mm x 80 mm.

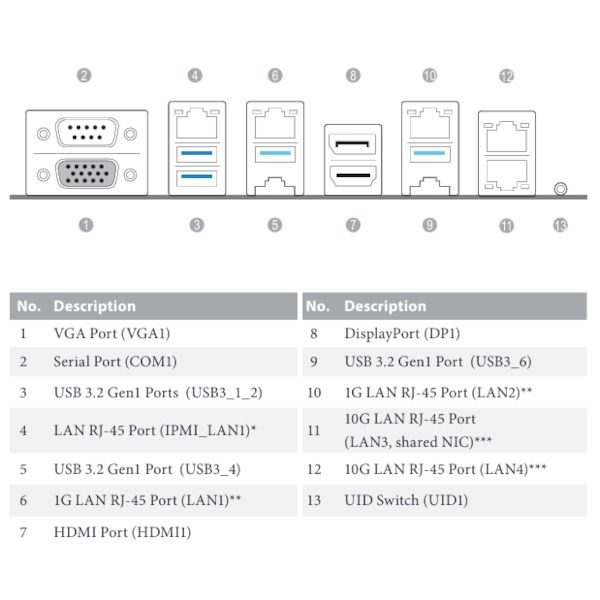

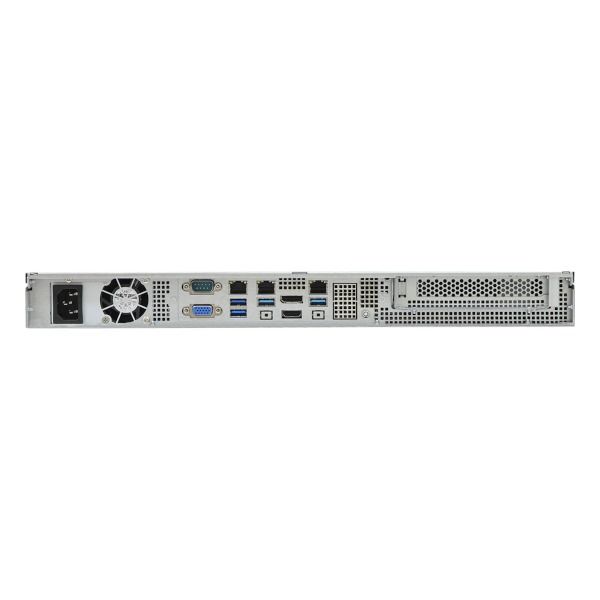

Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 4
Serial (Rear IO): 1
Headers
USB 2.0 Ports (on Headers): 1
USB 3.2 Gen 1 Ports (on Headers): 1
FAN Connectors: 7
Audio on Headers
Management Features
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
SL-Windows 11PRO to 10PRO 64bit
LINUX Ubuntu Desktop
Ubuntu Server Edition
Windows Server 2022 STD
Windows Server 2025 STD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER STANDARD
VMWare Compatible
Compliance of Component
CE
FCC
Warranty of Component
Motherboard Warranty: 1 Year
Other Features
Other Features:
Expansion slot

Rear: 1 FHHL PCIe4.0 x16 via RB1UX16_G4

M.2 slots

1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]

IPMI

1 Realtek RTL8211F for dedicated management GLAN
