SL-1U-LLH410I-RD

Name: SL-1U-LLH410I-RD
SKU: SL-1U-LLH410I-RD
Price: 1555.00 USD

A newer version of this item is available: SL-1U-LLH610I-RD

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2026) with Intel H410 Chipset, 10th Gen Intel Core i7, i5, i3/Pentium/Celeron, LGA1200, 2x 1GbE + 1GbE LAN, 6x Serial, Up to 64GB RAM, 4x USB 2.0 Ports ( 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 1x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Industrial PC
Depth: 10.19"

Motherboard:

Featuring Intel H410 Chipset and 10th Gen Intel Core i7, i5, i3/Pentium/Celeron, LGA1200 processor
Long Production Cycle Motherboard (Through Q4 2026)
Full Height Slots:
1 - PCIe x16
LAN: 2x Ports (1GbE + 1GbE)
Video: 1x VGA, 1x DisplayPort, 1x HDMI
Audio: Realtek® ALC897
Ports:
4x USB 2.0 Ports ( 4 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
6x COM Ports (1 RS232 Rear, 4 RS232 Internal Headers, 1 RS232/422/485 Rear)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
Memory: 8GB DDR4 3200MHz SODIMM RAM

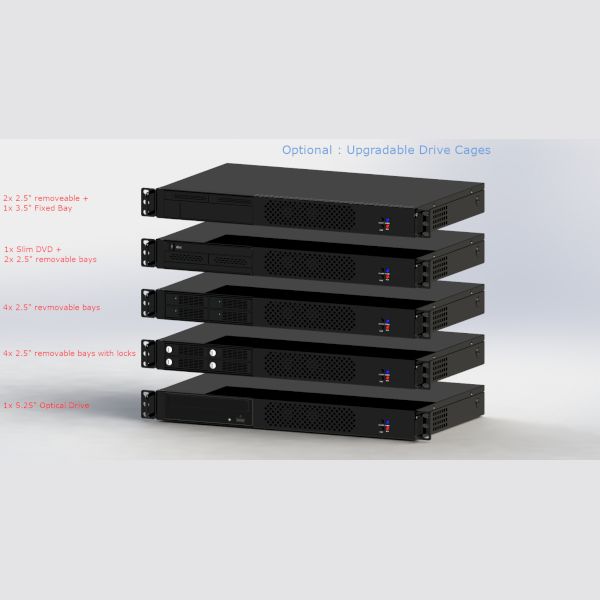

Removable Drive Bay: 2 x 2.5" 5mm-9.5mm HDD/SSD in 5.25" Hot Swap Mobile Rack Cage.
Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
Power Supply: 220W Flex ATX Power Supply - 115/230VAC Auto switching
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W) show $126.00

i3-10100 - 3.6GHz (up to 4.3GHz) Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W) show $300.00

i5-10400T - 2.0GHz (up to 3.60GHz) Intel Hexa-Core (6 cores) CPU - 12MB Cache, UHD Graphics 630 (35W) show $578.00

i7-10700T - 2.0GHz (up to 4.50GHz) Intel Octo-Core (8 cores) CPU - 16MB Cache, UHD Graphics 630 (35W) show $570.00

Memory

x 8GB DDR4 3200MHz SODIMM RAM show $172.00

x 16GB DDR4 3200MHz SODIMM RAM show $388.00

x 32GB DDR4 3200MHz SODIMM RAM show $638.00

x 16GB DDR4 3200MHz SODIMM RAM show $388.00

x 32GB DDR4 3200MHz SODIMM RAM show $510.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $57.00

Drive Bays

None show Included

2 x 2.5" 5mm-9.5mm HDD/SSD in 5.25" Hot Swap Mobile Rack Cage. show $65.00

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay)Special Order Item, Delivery approximately 10 weeks. show $79.00

Compact internal 8X HH DVD Writer 5.25 bay 8X DVD Writer show $80.00

Hard Drive

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $136.00

1TB 2.5" Internal SSD, SATA 3.0 6.0Gb/s, TLC NAND Flash ,up to 535/515 MB/s read/write speeds, MTBF 2,000,000 Hours show $301.00

2TB 2.5" SATA SSD 560/510MB/s 6Gb/s Premium Samsung, Micron or Kingston Unit show $370.00

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $210.00

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $332.00

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $446.00

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $725.00

Additional Hard Drives

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $136.00 each

1TB 2.5" Internal SSD, SATA 3.0 6.0Gb/s, TLC NAND Flash ,up to 535/515 MB/s read/write speeds, MTBF 2, show $301.00 each

2TB 2.5" SATA SSD 560/510MB/s 6Gb/s Premium Samsung, Micron or Kingston Unit show $370.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $210.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $332.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $446.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $725.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $1,924.00 each

Cable

3 ft HDMI® to DVI-D Cable - M/M show $13.00 each

6 ft HDMI® to DVI-D Cable - M/M show $15.00 each

Power Supply

220W Flex ATX Power Supply - 115/230VAC Auto switching show $91.00

350W 1U Flex ATX Power Supply - 80+ Gold Certified show $152.00

400W 1U FLEX ATX Power Supply - 80+ Gold Efficient show $212.00

600W 1U FLEX ATX Power Supply - 80+ Platinum Efficient show $284.00

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Microsoft Windows 10 2021 Enterprise LTSC - Upgrade License (U.S. Customer Only) ESD show $377.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $43.00 each

Microsoft Office Home 2024 Medialess - License ONLY. NO Media. show $212.00 each

Microsoft Office Home and Business 2024 Medialess - License ONLY. NO Media. show $297.00 each

Microsoft Windows 10 2021 Enterprise LTSC - Upgrade License (U.S. Customer Only) ESD show $377.00 each

Monitors

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - Part ETA Varies – Ask Sales show $1,069.00 each

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" Part ETA Varies – Ask Sales show $1,631.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") w Part ETA Varies – Ask Sales show $1,218.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") w Part ETA Varies – Ask Sales show $1,272.00 each

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchp Part ETA Varies – Ask Sales show $1,780.00 each

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Part ETA Varies – Ask Sales show $1,177.00 each

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - Part ETA Varies – Ask Sales show $1,738.00 each

Keyboard/Mouse

Keyboard and Mouse Combo

USB Keyboard/Mouse - Black/Silver show $27.00 each

Wireless Keyboard/Mouse show $53.00 each

Medical Grade Keyboard

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $129.00 each

Medical Grade Mouse

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $102.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $143.00 each

Rackmount Keyboard Drawer

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $286.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $431.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $485.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $207.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $785.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outletsSpecial Order Item, Delivery approximately 10 weeks. show $117.00

Mounting Option

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deep show $57.00 each

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $63.00 each

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $72.00 each

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Long Life: YES
EOL Date: Q4 2026
Supported CPU
Number of Processors: 1
Processor Type: 10th Gen Intel Core i7, i5, i3/Pentium/Celeron, LGA1200
Chipset
Chipset: Intel H410 Chipset
Memory
Memory Type: SO DIMM DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 64GB
On Board Audio
Audio Type: Realtek® ALC897
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: 1x VGA, 1x DisplayPort, 1x HDMI
VGA Port Out: 1
Display Port Out: 1
Embedded DisplayPort Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type and IPMI: 1GbE + 1GbE
LAN Chipset: Intel® i211AT
Second LAN Chipset: Intel® i219LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 2
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
Mini PCIe
mini PCIe
USB and PCIe signals (Internal)
half and/or full size mini PCIe card: full size
M.2 Slot Specs
2242 - 22 mm x 42 mm.
2280 - 22 mm x 80 mm.
Rear IO
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 1 Type A Ports (on IO): 2
Serial (Rear IO): 1
Serial 232/422/485 Ports: 1
Audio on IO
Headers
Serial (via Headers): 4
FAN Connectors: 2
TPM Support: TPM via Intel Platform Trust Technology
Management Features
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Pro (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Other Features
Other Features:
One PCI-Express x16 slot.
One PCI-Express Mini Card

One M.2 Key B type 2242/2280/3042/3052 includes PCIe x2, PCIe + SATA3.0, PCIe
+ USB 3.2 GEN1 interfaces

One M.2 Key E type 2230 with PCIe x1 and USB2.0.
Motherboard Warranty: 1 Year
