SL-1U-MCX-C222SLL-LD-1 This item is no longer available.

A newer version of this item is available: SL-1U-MCX-C236SSH-LD

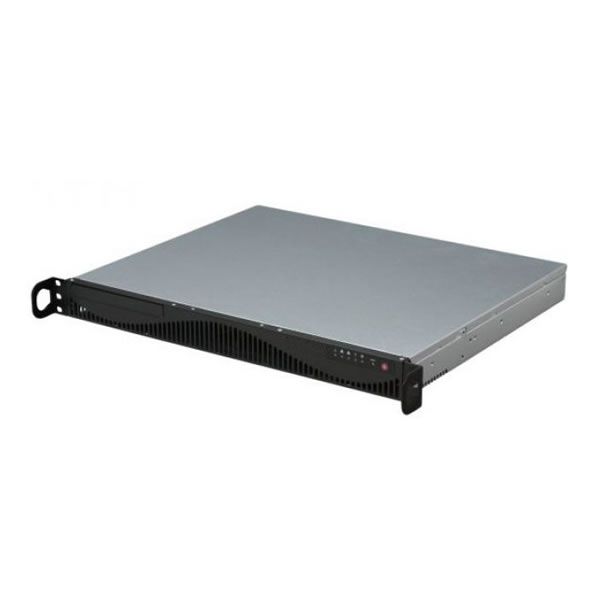

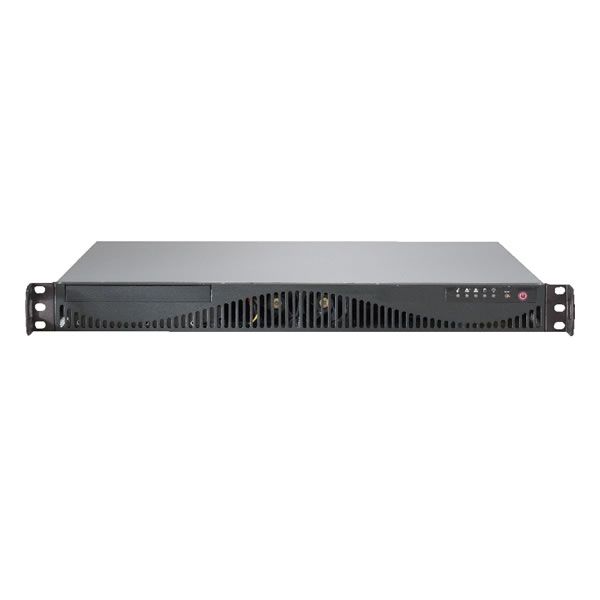

1U Rack Mount Server - Rackmount featuring Intel C222 Express Chipset, Xeon E3-1200v3 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 32GB RAM, 6x USB 2.0, 2x USB 3.0, 1x Expansion Slots, 350W Power Supply, 80+ Gold Certified

Type:

  • 1U Rack Mount Server
  • Depth: 14.50", Max Card Depth: 6.9"

Motherboard:

  • Featuring Intel C222 Express Chipset and Xeon E3-1200v3 (LGA1150, 'Haswell') processor
  • Full Height Slots:
    1 - PCIe x16
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    6x USB 2.0 Ports ( 4 Rear, 2 via internal headers )
    2x USB 3.0 Ports ( 1 Rear, 1 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
  • Memory: 4 GB DDR3 1600MHz ECC Unbuffered RAM
  • Hard Drive: 1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series
  • Power Supply: 350W Power Supply, 80+ Gold Certified
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Xeon E3-1200v3 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel C222 Express Chipset
  • Memory
  • Memory Type: DDR3 1600MHz ECC
  • Memory Type: ECC Unbuffered
  • DIMMS: 4
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i217LM
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 4
  • SATA III Ports (6GB): 2
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10

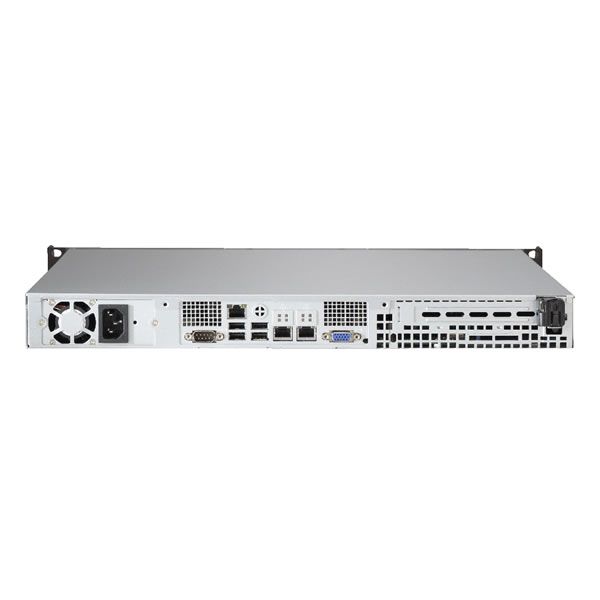

  • Rear IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 1
  • Serial (Rear IO): 1
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.0 Ports (on Headers): 1
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 1
  • FAN Connectors: 5
  • DOM
  • Chassis Intrusion
  • Management Features
  • IPMI
  • NMI
  • Watch Dog
  • TPM Support: Via 1.2 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • VMWare Compatible
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    PCI-Express

    • 1x PCI-E 3.0 x8 (in x16) Full-height slot

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 6.9"
  • Internal 3.5" Bays: 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 2
  • Physical
  • Depth: 14.50"
  • Depth (Inches): 14.5
  • Width: 17.20"
  • Height: 1.70"
  • Shipping Box - Depth: 20"
  • Shipping Box - Width: 22"
  • Shipping Box - Height: 6.30"
  • Shipping Weight: 15lbs
  • Power
  • Built-in Chassis Power Supply: 350W Power Supply, 80+ Gold Certified
  • Other Features
  • Features: SATA3 (6Gbps) w/ RAID 0, 1 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
